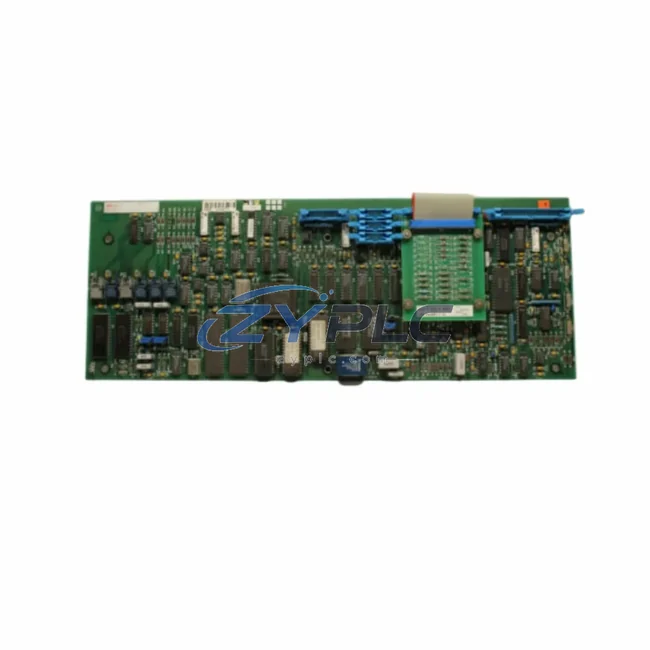

ABB SAFT187 CON Drive Control Board for ACS Series

ABB SAFT187 CON Drive Control Board for ACS Series

The ABB SAFT187 CON is a dedicated drive control board engineered for seamless integration within ABB’s ACS series variable frequency drive (VFD) architecture. Designed to serve as the central signal processing and control coordination layer within the drive unit, the SAFT187 CON governs the interface between the drive’s power electronics and the higher-level automation control system. In modern industrial environments where uptime, signal fidelity, and system scalability are non-negotiable, this board plays a foundational role in maintaining drive performance across a wide range of demanding applications.

Within a layered automation architecture, the SAFT187 CON operates at the drive control layer — positioned between the power conversion stage and the supervisory control network. It receives command signals from the control layer (typically a PLC or DCS), processes feedback from encoder and I/O modules, and coordinates the gate firing logic for the IGBT power modules within the inverter section. This tight integration between the control board and the power stage ensures precise motor speed regulation, torque control, and fault response — all critical for process-critical applications in manufacturing, energy, and heavy industry.

The board is compatible with ABB’s ACS series drive platforms, including the ACS800 and ACS600 families, where it functions as a replacement or spare for the original control electronics. When paired with the AINT board (auxiliary interface board), the SAFT187 CON enables full communication between the drive’s internal logic and external fieldbus networks such as PROFIBUS-DP or Modbus RTU. This makes it a key enabler of network-layer integration in distributed control architectures, where the drive must respond to real-time commands from a SIMATIC S7 PLC, ABB AC500, or equivalent controller platform.

From a system design perspective, the SAFT187 CON supports the drive’s role in the execution layer — translating abstract speed or torque setpoints from the control layer into precise PWM signals that govern motor behavior. When combined with the APOW power supply board, IOEC I/O extension modules, and RDCO communication option boards, the complete drive system achieves a high degree of modularity and redundancy. Engineers can replace the SAFT187 CON independently without disturbing the power stage, significantly reducing mean time to repair (MTTR) and minimizing production downtime during maintenance windows.

In multi-drive cabinet installations — common in steel mills, paper machines, and offshore platforms — the SAFT187 CON enables consistent control behavior across parallel drive units. When multiple ACS800 drives are coordinated through a master-follower configuration or a common DC bus architecture, the control board’s signal processing consistency is essential for synchronized torque sharing and load balancing. The board’s compatibility with ABB’s DriveWindow and DriveAP commissioning tools further simplifies system-level parameter management, allowing engineers to configure, monitor, and diagnose the drive remotely without physical intervention at the cabinet level.

Long-term maintainability is a core advantage of sourcing the SAFT187 CON as a spare or replacement component. As ACS series drives remain in service across legacy installations worldwide, maintaining a verified inventory of control boards ensures that aging systems can be restored to full operational status without costly full-drive replacements. Each SAFT187 CON supplied by ZYPLC is tested, inspected, and backed by a warranty terms confirmed during quotation, providing procurement teams and maintenance engineers with the confidence needed for long-cycle asset management strategies.

Product Specification Table

System Compatibility Notes

The SAFT187 CON does not operate in isolation — its value is fully realized when considered within the complete ACS series drive system architecture. At the power layer, the APOW power supply board provides regulated DC voltage to the control electronics, ensuring stable operation of the SAFT187 CON even under fluctuating input conditions. The AINT auxiliary interface board bridges the SAFT187 CON to external communication networks, enabling the drive to participate in PROFIBUS-DP or Modbus RTU fieldbus segments managed by a host PLC.

At the I/O layer, IOEC I/O extension modules expand the drive’s digital and analog signal capacity, feeding process feedback — such as pressure transmitter outputs, flow sensor signals, and temperature readings — directly into the control board’s processing loop. The RDCO communication option board further extends network connectivity, supporting integration with ABB’s DriveAP ecosystem and enabling remote parameter access from engineering workstations.

For encoder-based speed control applications, the SAFT187 CON interfaces with pulse encoder modules mounted on the motor shaft, providing closed-loop speed feedback with high resolution. In cabinet-level installations, the board works alongside ABB ACS800 main circuit boards, IGBT power modules, and DC bus capacitor banks to form a complete, serviceable drive unit. When the control system requires HMI visibility, ABB CP600 operator panels or third-party SCADA terminals connect through the drive’s serial or Ethernet interface, providing operators with real-time drive status, fault history, and parameter adjustment capability.

Industrial Application Notes

The SAFT187 CON finds application across a broad spectrum of industrial sectors where ACS series drives are deployed as part of a larger process control architecture. In steel and metals processing, the board supports precise speed control of rolling mill drives, where torque consistency and rapid fault response are critical to product quality. In pulp and paper manufacturing, it governs the speed synchronization of multi-section paper machine drives, where even minor speed deviations between sections can cause web breaks and production losses.

In water and wastewater treatment facilities, the SAFT187 CON enables energy-efficient pump and blower control through variable speed operation, reducing energy consumption while maintaining process setpoints. In oil and gas and petrochemical applications, the board supports compressor and pump drives operating in hazardous-area adjacent control rooms, where reliability and long service intervals are mandatory. In mining and mineral processing, it controls conveyor, crusher, and mill drives that must operate continuously under heavy load conditions with minimal unplanned downtime.

For packaging and material handling lines, the SAFT187 CON enables precise positioning and speed profiling of conveyor and indexing drives, supporting high-throughput production with consistent cycle times. Across all these applications, the board’s role as the intelligence layer of the drive system — coordinating signal flow between the control network, the I/O layer, and the power electronics — makes it an indispensable component for both new system commissioning and long-term maintenance planning.

Product Compatibility FAQ

Q1: Is the SAFT187 CON compatible with both ACS800 and ACS600 drive platforms?
The SAFT187 CON is primarily designed for ABB ACS800 series drives and select ACS600 configurations. Compatibility depends on the specific drive type code and firmware version. We recommend providing your full drive type code when ordering to confirm direct compatibility. Our technical team can assist with cross-referencing the correct control board variant for your specific drive unit.

Q2: Can the SAFT187 CON be replaced in the field without full drive recommissioning?
In most ACS800 installations, the SAFT187 CON can be replaced as a standalone board without disturbing the power stage or rewiring the cabinet. However, drive parameters stored on the original board may need to be reloaded via DriveWindow or a parameter backup file. We recommend maintaining a parameter backup for all drives in service to minimize recommissioning time following a control board replacement.

Q3: What does the warranty terms confirmed during quotation cover, and how is it supported?
Every SAFT187 CON supplied by ZYPLC is functionally tested and inspected before shipment. The warranty terms confirmed during quotation covers manufacturing defects and functional failures under normal operating conditions. In the event of a warranty claim, ZYPLC provides direct technical support and replacement coordination. Contact our team at plc.sales@zyplc.com or +86 19859288691 to initiate a warranty assessment.
