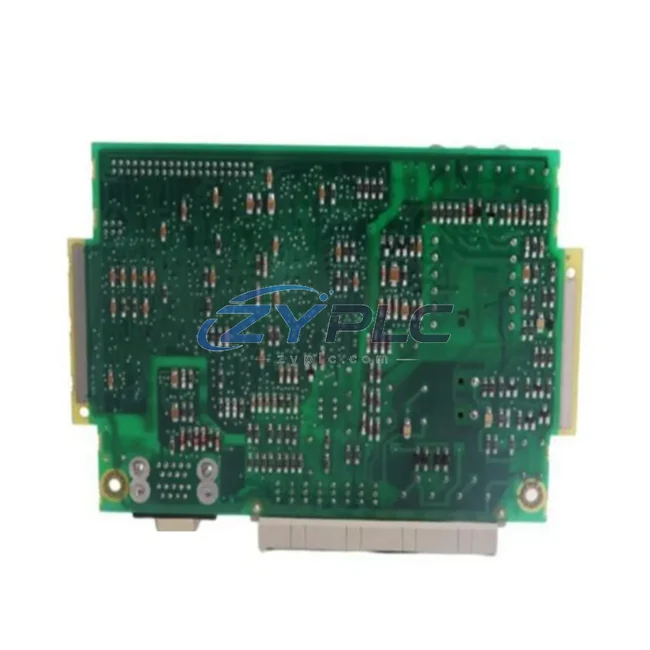

ABB SC300E-MPP Industrial Network Interface for Symphony Plus Systems

ABB SC300E-MPP Industrial Network Interface for Symphony Plus Systems: Bridging the Industrial Data Link

In modern smart factory environments, seamless data flow between field devices and supervisory systems is the backbone of operational efficiency. The ABB SC300E-MPP Processor Module is engineered as a high-performance industrial network interface within the ABB Symphony Plus distributed control system (DCS) architecture. Designed to handle multi-protocol communication, real-time data acquisition, and system-level integration, the SC300E-MPP serves as the critical communication hub connecting PLCs, remote I/O modules, HMI panels, SCADA platforms, variable frequency drives, and intelligent field sensors into a unified, transparent automation network.

The SC300E-MPP supports Ethernet/IP, Profibus DP, and Modbus TCP protocols simultaneously, enabling it to act as a protocol gateway between legacy field bus devices and modern Ethernet-based supervisory systems. This multi-protocol capability eliminates data silos that commonly arise when integrating equipment from different generations or manufacturers on the same production line. Whether you are connecting a Profibus-enabled ABB AC500 PLC, a Modbus RTU remote I/O rack, or an Ethernet-based SCADA server running ABB System 800xA, the SC300E-MPP ensures deterministic, low-latency data exchange across all nodes.

Compatibility & Integration Notes

Connected Automation Data Flow

The SC300E-MPP sits at the heart of a layered industrial communication architecture. At the field level, sensors and actuators — including ABB TZIDC intelligent positioners and ABB ACS880 variable frequency drives — transmit process values via Profibus DP to the SC300E-MPP. The module processes these signals and forwards structured data packets upstream to the Symphony Plus controller network, where the ABB SC300E-S01 system controller and ABB SC300E-S02 redundant controller pair manage closed-loop control logic.

For remote I/O integration, the SC300E-MPP interfaces directly with ABB S900 remote I/O modules deployed in hazardous or geographically distributed areas, collecting analog and digital signals over Profibus and converting them into Ethernet-compatible data streams for the DCS backbone. This architecture supports up to 125 Profibus slave nodes per segment, making it suitable for large-scale process plants, power generation facilities, and petrochemical installations.

At the supervisory layer, the SC300E-MPP connects to ABB System 800xA SCADA/HMI servers via Industrial Ethernet, enabling operators to monitor real-time process variables, configure alarm thresholds, and execute remote diagnostic routines without interrupting production. The module’s Modbus TCP gateway function also allows legacy ABB AC500 PLCs and third-party Modbus RTU devices — such as energy meters, flow computers, and motor protection relays — to publish data directly into the 800xA historian and reporting engine.

For edge computing scenarios, the SC300E-MPP can be paired with an ABB Edge Gateway or third-party IIoT edge devices to push real-time OPC-UA data streams to cloud analytics platforms, enabling predictive maintenance models and digital twin synchronization. The module’s deterministic Ethernet communication ensures that time-sensitive control data and non-time-critical monitoring data are correctly prioritized across the network fabric.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in industrial automation is the coexistence of multiple communication protocols across different equipment generations. A typical plant may operate ABB Symphony Plus DCS controllers alongside Siemens S7 PLCs, Schneider Electric Modicon remote I/O, and Yokogawa field transmitters — each speaking a different protocol dialect. The SC300E-MPP addresses this directly through its multi-protocol gateway architecture, translating between Profibus DP, Modbus TCP, and Ethernet/IP in real time without requiring additional protocol converters or middleware servers.

Data isolation — where field device data cannot reach SCADA or MES systems due to protocol incompatibility — is eliminated by the SC300E-MPP’s unified data plane. Process variables from every connected device are normalized into a common data model and made available to ABB System 800xA, third-party SCADA platforms, and MES/ERP systems via standard OPC-DA and OPC-UA interfaces. This enables full production line transparency: operators can view real-time KPIs, energy consumption data, and equipment health metrics from a single HMI screen.

Remote monitoring and diagnostics are further enhanced by the SC300E-MPP’s built-in network diagnostics tools, which provide link status, packet error rates, and node health indicators accessible from the 800xA engineering workstation. When a field device goes offline or a communication fault occurs, the module generates structured alarm messages with device-level granularity, enabling maintenance teams to pinpoint faults remotely and dispatch technicians with the correct replacement parts — reducing mean time to repair (MTTR) significantly.

System expansion is straightforward: additional SC300E-MPP modules can be added to the Symphony Plus backplane to scale communication capacity as new production lines or remote sites are integrated. Each module ships pre-tested and configured to factory defaults, with full functional verification documentation included, ensuring rapid commissioning and minimal downtime during system expansion projects.

Industrial Connectivity FAQ

Q1: What is the communication latency of the SC300E-MPP in a live DCS network?
The SC300E-MPP delivers deterministic communication latency of less than 10ms for cyclic Profibus DP data exchange and less than 5ms for Modbus TCP polling cycles under standard network load conditions. For time-critical control loops, it is recommended to configure the module in a dedicated VLAN segment to isolate control traffic from general IT network traffic.

Q2: Is the SC300E-MPP compatible with third-party SCADA systems beyond ABB System 800xA?
Yes. The SC300E-MPP supports standard Modbus TCP and OPC-DA/OPC-UA interfaces, making it compatible with Wonderware InTouch, Ignition SCADA, Siemens WinCC, and other major SCADA/HMI platforms. Protocol mapping and tag configuration are performed via the Symphony Plus engineering tool suite.

Q3: How does the SC300E-MPP handle network redundancy and failover?
The module supports dual-port Ethernet with media redundancy protocol (MRP) for ring topology networks, ensuring automatic failover in less than 200ms in the event of a network link failure. When paired with the ABB SC300E-S02 redundant controller, the system achieves bumpless transfer with zero data loss during controller switchover events.

Q4: What does the warranty terms confirmed during quotation cover, and how is pre-shipment testing performed?
Every SC300E-MPP unit supplied by ZYPLC undergoes full functional testing prior to shipment, including protocol communication verification, power-on self-test, and network interface validation. The warranty terms confirmed during quotation covers manufacturing defects and functional failures under normal operating conditions. Units are shipped with DHL or FedEx Express with full export documentation, commercial invoice, and packing list to ensure smooth customs clearance worldwide.
