ABB SC510 3BSE003832R1 Submodule Carrier for Advant Master

ABB SC510 3BSE003832R1 Industrial Network Interface for Advant Master Systems

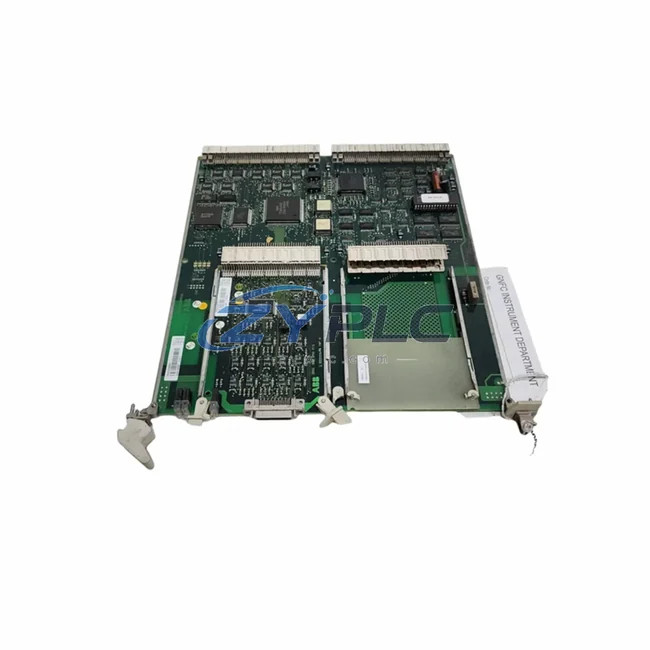

The ABB SC510 (3BSE003832R1) is a high-performance submodule carrier engineered for the ABB Advant Master distributed control system (DCS). Designed to serve as the physical and electrical backbone for communication submodules within the AC400 and AC450 series controller platforms, the SC510 enables seamless integration of field devices, remote I/O nodes, HMI stations, and SCADA supervisory systems into a unified industrial data network. In smart factory environments where real-time data flow and protocol interoperability are mission-critical, the SC510 delivers the structural and electrical foundation that keeps every node in the automation chain communicating reliably.

Compatibility & Integration Notes

Connected Automation Data Flow

In a typical Advant Master deployment, the SC510 submodule carrier is installed within the AC450 or AC400 controller rack, providing the physical slot interface for communication submodules such as the CI532V02 AF100 communication interface or the CI520V1 PROFIBUS DP master module. These submodules plug directly into the SC510 carrier, which routes power and data signals between the controller backplane and the field communication network.

From the controller rack, process data flows outward through the AF100 fieldbus to remote I/O stations equipped with TB521 or TB511 terminal bases, where field signals from sensors, actuators, and transmitters are collected and digitized. The CI522A communication interface module further extends connectivity to PROFIBUS DP segments, enabling integration with third-party variable frequency drives, smart valve positioners, and distributed sensor networks operating on the PROFIBUS standard.

At the supervisory level, the PM571 process controller — working in conjunction with the SC510-hosted communication submodules — aggregates real-time process data and forwards it upstream to SCADA servers and HMI workstations via MasterBus 300 or Ethernet gateways. The SS522 signal conditioning module and CI541V1 communication interface further extend the system’s reach into legacy serial networks, ensuring that older Modbus RTU devices remain fully integrated within the modern Advant data architecture.

For plants expanding toward IIoT and edge computing, the SC510-based communication layer provides the stable, deterministic data backbone that edge gateways require to aggregate OPC-UA data streams from the Advant controller and forward them to cloud-based analytics platforms. This positions the SC510 not merely as a legacy carrier module, but as a foundational component in the digital transformation of process industries including oil and gas, power generation, pulp and paper, and chemical manufacturing.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in brownfield industrial facilities is protocol fragmentation — legacy DCS nodes, PLCs, and field instruments that speak different communication languages, creating data silos that prevent plant-wide visibility and coordinated control. The ABB SC510 3BSE003832R1 directly addresses this challenge by providing a standardized carrier platform that accommodates multiple communication submodules simultaneously, enabling the Advant Master controller to bridge AF100, PROFIBUS DP, and Modbus RTU networks within a single rack.

This multi-protocol capability eliminates the need for standalone protocol converters between field device segments, reducing network latency, minimizing single points of failure, and simplifying the overall network topology. Plant engineers gain a transparent view of all connected devices — from proximity sensors on the production line to variable speed drives in the motor control center — through a single SCADA or HMI interface, enabling real-time monitoring, alarm management, and remote diagnostics without requiring physical access to the field.

System expansion is equally straightforward: additional SC510 carriers can be installed in extended rack configurations to accommodate new communication submodules as the plant’s automation footprint grows, protecting the initial investment while supporting incremental modernization. Each SC510 unit supplied by ZYPLC undergoes functional testing prior to shipment, with a warranty terms confirmed during quotation covering both hardware integrity and communication performance, ensuring that replacement and expansion projects proceed without unplanned downtime.

Industrial Connectivity FAQ

Q1: What communication protocols does the ABB SC510 3BSE003832R1 support?
The SC510 submodule carrier itself is protocol-agnostic — it provides the physical slot interface for ABB Advant communication submodules. Depending on the submodule installed (e.g., CI532V02 for AF100, CI520V1 for PROFIBUS DP, CI541V1 for serial/Modbus RTU), the carrier supports AF100, PROFIBUS DP, Modbus RTU, and MasterBus 300 protocols within the same controller rack.

Q2: Is the SC510 compatible with both AC400 and AC450 Advant Master controllers?
Yes. The 3BSE003832R1 submodule carrier is designed for use across the Advant Master AC400 and AC450 controller families. Always verify rack slot compatibility and firmware revision with your system documentation before installation.

Q3: How does ZYPLC ensure network stability and reliability of the SC510 before shipment?
Every SC510 3BSE003832R1 unit is functionally tested prior to dispatch to verify backplane connectivity, slot integrity, and electrical performance. Units are shipped with a warranty terms confirmed during quotation. Global logistics via DHL and FedEx ensure fast, tracked delivery to minimize plant downtime during replacement or expansion projects.

Q4: Can the SC510 be used to expand an existing Advant Master system without replacing the controller?
Yes. The SC510 is designed for modular expansion within existing Advant Master rack configurations. By adding SC510 carriers and the appropriate communication submodules, engineers can extend the controller’s network reach to new PROFIBUS segments, additional remote I/O clusters, or new HMI/SCADA integration points without replacing the core AC400 or AC450 processor module.
