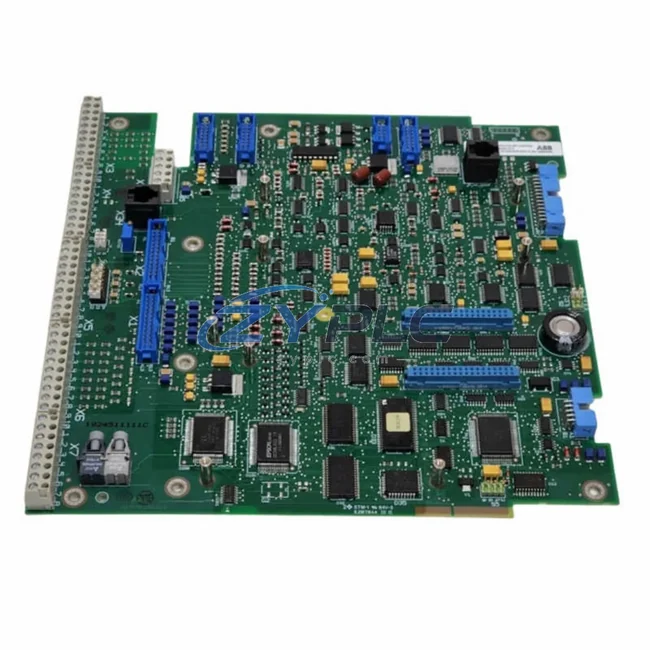

ABB SDCS-CON-2B Drive Control for SDCS

ABB SDCS-CON-2B Drive Control for SDCS

The ABB SDCS-CON-2B is a dedicated DC drive control board engineered for seamless integration within the ABB SDCS (Scalable DC Drive Control System) architecture. Rather than functioning as a standalone component, the SDCS-CON-2B occupies a critical position in the layered automation hierarchy — bridging the intelligence of the control layer with the precision demands of the drive execution layer. In modern industrial environments where uptime, signal fidelity, and system coherence are non-negotiable, this board delivers the system integration that complex DC drive applications require.

Designed for demanding environments including steel processing lines, paper mills, mining hoists, marine propulsion systems, and large-scale HVAC installations, the SDCS-CON-2B provides the closed-loop current and speed regulation that forms the backbone of reliable DC motor control. Its architecture supports both armature current control and field current control, enabling precise torque management across the full speed range of the connected DC motor.

Within a complete SDCS drive system, the SDCS-CON-2B does not operate in isolation. It works in concert with the SDCS-POW-1 or SDCS-POW-4 power supply boards, which provide the regulated internal voltages necessary for stable control electronics operation. The SDCS-PIN-51 and SDCS-PIN-205 I/O interface boards extend the signal connectivity of the control board, allowing engineers to map analog references, digital commands, and feedback signals from field instrumentation directly into the drive’s control logic without signal conditioning bottlenecks.

At the network layer, the SDCS-CON-2B integrates with fieldbus adapter modules such as the RDCO-02 DDCS communication option board, enabling the drive to participate in ABB’s proprietary DDCS fiber-optic network. This allows the SDCS-CON-2B-equipped drive to receive speed references and torque commands from a master controller — such as an ABB AC800M or AC500 PLC — while simultaneously reporting actual values, fault codes, and status words back to the supervisory system in real time. This bidirectional communication architecture is essential for coordinated multi-drive systems where speed synchronization and load sharing are critical.

For human-machine interface integration, the SDCS-CON-2B supports connection to ABB’s CDP312R control panel, which provides local parameter access, drive commissioning capability, and real-time monitoring of key drive variables including output current, motor speed, DC bus voltage, and active fault history. In larger installations, the CDP312R can be panel-mounted remotely, allowing operators to interact with the drive without opening the control cabinet — a significant advantage in high-voltage environments.

The board’s architecture also supports master-follower configurations, where one SDCS-CON-2B-equipped drive acts as the speed master and additional follower drives track its reference via the DDCS link. This capability is particularly valuable in winder and unwinder applications, tension control systems, and multi-motor conveyor lines where mechanical coupling between drives must be replicated electronically with minimal phase error.

From a maintenance and lifecycle perspective, the SDCS-CON-2B is a field-replaceable unit. Its modular design within the SDCS drive chassis means that a faulty control board can be swapped without disturbing the power electronics, significantly reducing mean time to repair (MTTR) in production-critical applications. Spare board availability is a key consideration for plant engineers managing aging SDCS drive fleets, and maintaining a stocked SDCS-CON-2B in the maintenance inventory directly supports plant reliability targets.

All SDCS-CON-2B units supplied by ZYPLC are tested prior to shipment and covered by a warranty terms confirmed during quotation, providing procurement teams and maintenance engineers with the confidence needed for both planned replacements and emergency sourcing scenarios. Our global logistics network ensures fast delivery to manufacturing sites, power generation facilities, and process plants worldwide.

Product Specification Table

System Compatibility Notes

A complete SDCS-based DC drive system is built around the coordinated interaction of multiple hardware layers. The SDCS-CON-2B control board sits at the center of this architecture, receiving its operating power from the SDCS-POW-1 or SDCS-POW-4 internal power supply board, which converts the incoming AC supply into the regulated DC voltages required by the control electronics. Signal connectivity is extended through the SDCS-PIN-51 standard I/O interface board and the SDCS-PIN-205 extended I/O board, which together provide the analog input channels for speed reference and current feedback, as well as the digital I/O points for run/stop commands, fault acknowledgment, and relay outputs.

At the network layer, the RDCO-02 DDCS communication option board plugs into the SDCS-CON-2B to enable fiber-optic communication with the plant’s supervisory control system. This is typically an ABB AC800M process controller or an ABB AC500 PLC, both of which can issue speed and torque references to the drive while collecting actual value data for process monitoring and historian logging. For local commissioning and diagnostics, the CDP312R control panel connects directly to the SDCS-CON-2B, providing parameter read/write access and real-time drive status visualization without requiring a laptop or engineering workstation.

In multi-drive installations, the SDCS-CON-2B supports master-follower topologies over the DDCS network, where a master drive equipped with an SDCS-CON-2B and RDCO-02 distributes speed references to follower drives in real time. Terminal modules such as the ABB SACE series circuit breakers and ABB XT series molded case circuit breakers are typically used at the incoming supply side of the drive cabinet, providing overcurrent protection and safe isolation for maintenance. Together, these components form a coherent, scalable DC drive architecture capable of supporting single-motor applications through to complex multi-drive coordinated systems.

Industrial Application Notes

The SDCS-CON-2B finds application across a broad range of heavy industrial sectors where DC motor drives remain the preferred solution for high-torque, wide speed-range applications. In steel and metals processing, the board is used in rolling mill main drives, coiler and uncoiler drives, and edger drives, where precise torque control and speed synchronization between multiple drive stands are essential for product quality and process stability.

In paper and pulp manufacturing, SDCS-CON-2B-equipped drives control section drives on paper machines, where the speed ratio between sections must be maintained within tight tolerances to prevent web breaks and ensure consistent paper weight. The board’s closed-loop current regulation provides the fast dynamic response needed to compensate for load disturbances caused by web tension variations.

In mining and minerals processing, the SDCS-CON-2B is deployed in hoist drives, conveyor drives, and crusher drives, where the ability to operate reliably in dusty, high-vibration environments — combined with the fault tolerance provided by the DDCS communication architecture — makes it a preferred choice for remote and underground installations. In water and wastewater treatment facilities, the board supports pump and blower drives where variable speed operation reduces operating load and extends equipment life. Across all these applications, the warranty terms confirmed during quotation and global spare parts availability provided by ZYPLC ensure that plant operators can maintain production continuity with confidence.

Product Compatibility FAQ

Q1: Is the SDCS-CON-2B compatible with both DCS400 and DCS550 drive platforms?
The SDCS-CON-2B is the control board used within the SDCS drive family, which underpins the DCS400 and related SDCS-platform drives. Compatibility with specific drive chassis variants should be confirmed against the drive’s hardware revision and the ABB SDCS hardware manual. ZYPLC’s technical team can assist with cross-referencing the board revision to your specific drive model prior to purchase, ensuring correct fit within your existing architecture.

Q2: Can the SDCS-CON-2B be integrated into a new PLC-based control architecture alongside legacy SDCS drives?
Yes. Via the RDCO-02 DDCS option board, the SDCS-CON-2B can communicate with ABB AC800M and AC500 PLC platforms, allowing legacy SDCS drives to be retained within a modernized supervisory control architecture. This approach supports phased modernization strategies where the drive power electronics remain serviceable but the control and network layers are upgraded, preserving capital investment while improving system integration and remote monitoring capability.

Q3: What does the warranty terms confirmed during quotation cover, and what is the process for warranty claims?
All SDCS-CON-2B units supplied by ZYPLC are functionally tested prior to shipment and covered by a warranty terms confirmed during quotation against manufacturing defects and functional failure under normal operating conditions. In the event of a warranty claim, ZYPLC provides a replacement unit or repair service, with logistics coordinated to minimize production downtime. For warranty inquiries or to initiate a claim, contact ZYPLC directly at plc.sales@zyplc.com or +86 19859288691.
