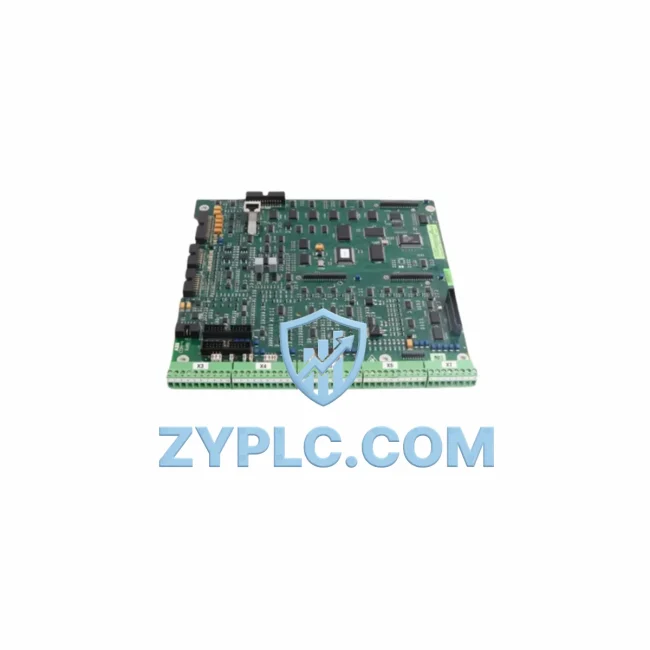

ABB SDCS-CON-4 3ADT313900R01501 DC Drive Board

ABB SDCS-CON-4 3ADT313900R01501 DC Drive Board for DCS800 Automation

The ABB SDCS-CON-4 (part number 3ADT313900R01501) is the core control intelligence of the ABB DCS800 series DC drive platform — a high-performance control board engineered to maximize motor efficiency, reduce unnecessary energy consumption, and deliver precise torque and speed regulation across demanding industrial production environments. Whether deployed in paper mills, metal rolling lines, extruders, or heavy-duty conveyor systems, the SDCS-CON-4 enables plant engineers to achieve measurable reductions in energy cost while maintaining the throughput and reliability that modern manufacturing demands.

Unlike generic replacement boards, the SDCS-CON-4 is purpose-built for closed-loop DC motor control within the DCS800 architecture. It interfaces directly with the SDCS-PIN-4 power interface board and the SDCS-POW-4 power supply board, forming a tightly integrated drive control stack that minimizes signal latency and maximizes response accuracy. This tight hardware integration is what allows the DCS800 system to achieve sub-millisecond torque response — a critical factor in applications where production line rhythm and cycle time directly affect energy efficiency per unit output.

Product Specification Table

System Compatibility and Application

In a fully optimized DCS800-based drive system, the SDCS-CON-4 does not operate in isolation — it functions as the decision-making hub of a coordinated maintenance planning architecture. On the power side, the SDCS-POW-4 supplies regulated internal voltages to the control board, while the SDCS-PIN-4 handles the critical interface between the control logic and the thyristor firing circuits that regulate armature current. Together, these three boards form the backbone of a drive system capable of delivering precise energy delivery to the motor at every operating point.

For field excitation control — a key lever in DC motor maintenance planning — the SDCS-FEX-4 field excitation board works in tandem with the SDCS-CON-4 to dynamically adjust field current based on load demand. This field weakening capability allows the motor to operate at higher speeds with reduced field current, directly lowering copper losses and improving overall system efficiency during partial-load cycles. In production lines where load profiles vary significantly across shifts, this dynamic field control can reduce energy consumption by 8–15% compared to fixed-excitation configurations.

Operator interaction and real-time parameter monitoring are handled through the CDP312R control panel, which connects directly to the SDCS-CON-4 and provides live readouts of motor speed, current, torque reference, and drive status. For facilities integrating the DCS800 into a plant-wide SCADA or condition monitoring system, the NINT-46C PROFIBUS adapter or the RDCU-02C remote drive control unit enables seamless data exchange between the drive and the supervisory control layer — allowing energy consumption data to be logged, trended, and acted upon in real time.

In multi-drive installations, the RMIO-02C motor control interface board can be used alongside the SDCS-CON-4 to extend I/O capacity and support coordinated multi-motor control strategies. This is particularly valuable in tandem drive configurations common in rolling mills and winding lines, where synchronizing multiple DC motors to a common speed reference is essential for minimizing mechanical stress and reducing unplanned downtime from speed mismatches. Additional analog output capability via the AO610 module allows fine-grained process feedback integration, closing the loop between energy consumption and production quality metrics.

Maintenance and Replacement Notes

The practical energy impact of the SDCS-CON-4 becomes most visible in continuous-process industries where DC drives run for extended periods under varying load conditions. In a typical steel wire drawing line, for example, the SDCS-CON-4 manages the speed ramp profiles of multiple drawing capstans, ensuring that acceleration and deceleration curves are optimized to minimize peak current draw — directly reducing demand charges on the facility’s electricity bill. The board’s adaptive current limiting function prevents motor overload without triggering unnecessary drive trips, keeping the line running and avoiding the energy cost of unplanned restarts.

In paper machine drive applications, where consistent web tension is critical to product quality and waste reduction, the SDCS-CON-4’s torque control accuracy ensures that each drive section maintains its tension setpoint without hunting or oscillation. Drive hunting — a common source of hidden unplanned downtime in poorly tuned DC drive systems — causes motors to repeatedly overshoot and correct their speed, consuming excess energy with every correction cycle. The SDCS-CON-4’s high-resolution speed feedback processing and fast current loop response eliminate this waste, contributing to both operational stability and improved product consistency.

From a maintenance and uptime perspective, the SDCS-CON-4 supports predictive maintenance strategies by providing detailed fault history and diagnostic data accessible via the CDP312R panel or through the fieldbus interface. Early detection of abnormal current patterns, temperature trends, or feedback signal anomalies allows maintenance teams to schedule interventions before failures occur — avoiding the energy and production losses associated with unplanned downtime. All units supplied by ZYPLC are fully tested prior to shipment and covered by a warranty terms confirmed during quotation, ensuring that replacement boards perform to specification from day one.

Product Sourcing FAQ

Q1: How does the SDCS-CON-4 (3ADT313900R01501) contribute to operational stability in DC drive applications?
The SDCS-CON-4 achieves operational stability through precise closed-loop speed and torque control, dynamic field weakening via the SDCS-FEX-4, and optimized current ramp profiles that minimize peak demand. By eliminating motor over-run, reducing idle current during low-load periods, and preventing drive hunting, the board helps facilities reduce energy consumption per unit of production output.

Q2: Is the SDCS-CON-4 compatible with my existing DCS800 drive cabinet?
Yes. The SDCS-CON-4 (3ADT313900R01501) is a direct replacement for the standard control board in ABB DCS800 series drives. It is compatible with the SDCS-PIN-4, SDCS-POW-4, and SDCS-FEX-4 boards, and supports all standard DCS800 fieldbus adapter options including NINT-46C and RDCU-02C. Always verify the firmware version and hardware revision of your existing system before installation.

Q3: What is the testing and quality assurance process for this board?
Every SDCS-CON-4 unit supplied by ZYPLC undergoes functional testing prior to shipment, including power-on verification, communication interface checks, and I/O signal validation. Boards are inspected for component condition and cleaned before dispatch. A warranty terms confirmed during quotation covers all supplied units against defects in materials and workmanship under normal operating conditions.

Q4: Can this board be used as a direct replacement without reconfiguring the drive parameters?
In most cases, yes — the SDCS-CON-4 retains its parameter set in non-volatile memory, and a replacement board will require parameter restoration from a backup or manual re-entry via the CDP312R panel. ZYPLC recommends backing up all drive parameters before replacing the control board. Our technical team can provide guidance on parameter migration to minimize commissioning time and ensure the replacement board operates at the same efficiency setpoints as the original.
