ABB SDCS-CON-81 3ADT314900R1002 Industrial Network Interface for DCS800 Systems

ABB SDCS-CON-81 3ADT314900R1002: Industrial Data Link for DCS800 DC Drive Systems

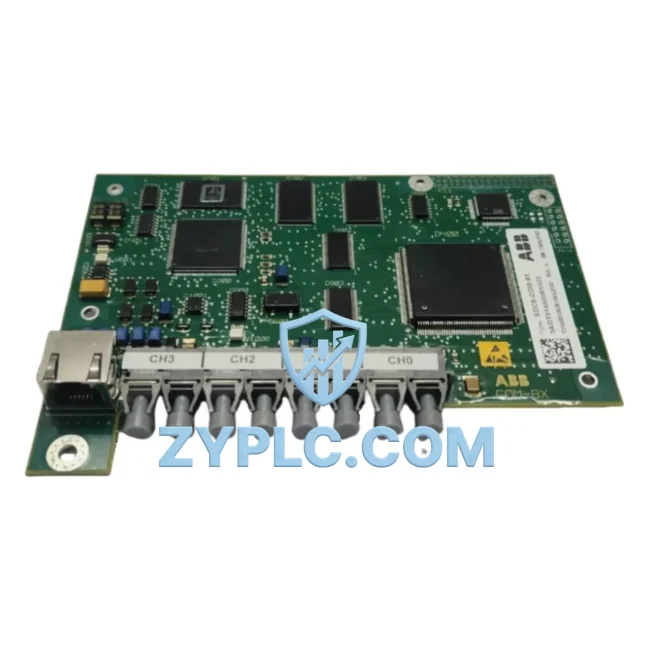

The ABB SDCS-CON-81 (Part No. 3ADT314900R1002) is a high-performance DC drive control interface module engineered for seamless integration within the ABB DCS800 DC drive platform. Designed to serve as the central communication and control backbone of industrial drive systems, the SDCS-CON-81 enables real-time data exchange between field-level devices and upper-level automation architectures — bridging the gap between motor control hardware and plant-wide SCADA, DCS, and HMI systems.

In modern smart factory environments, the ability to maintain uninterrupted, low-latency data flow across the automation hierarchy is critical. The SDCS-CON-81 fulfills this role by providing a robust interface layer within the DCS800 drive family, supporting high-speed signal acquisition from encoders, tachometers, and analog sensors, while simultaneously managing closed-loop speed and torque control with precision. Its architecture is optimized for demanding industrial applications including paper mills, metal rolling lines, crane and hoist systems, extruders, and winding machines — environments where drive reliability and communication integrity directly impact production output.

The module interfaces natively with the ABB DCS800 power unit and coordinates with companion modules such as the SDCS-POW-4 power supply board, SDCS-PIN-51 pulse encoder interface, and SDCS-FEX-2 field excitation module. Together, these components form a tightly integrated drive control stack that supports both standalone operation and full network-connected automation. When paired with an ABB RDCO-03 DDCS communication option module or an RPBA-01 PROFIBUS adapter, the SDCS-CON-81 enables the DCS800 to participate in plant-wide fieldbus networks, transmitting drive status, speed references, fault codes, and diagnostic data to PLC controllers and SCADA platforms in real time.

From a data flow perspective, the SDCS-CON-81 sits at the intersection of the physical drive layer and the digital control network. Analog and digital I/O signals from field sensors and actuators are processed by the module’s onboard logic, converted into structured data packets, and transmitted upstream to Siemens S7-series PLCs, Allen-Bradley ControlLogix systems, or ABB AC500 controllers via the drive’s communication interface. Downstream, speed and torque setpoints received from the control system are decoded and applied to the drive’s PWM output stage with millisecond-level response times — ensuring tight synchronization across multi-drive production lines.

For facilities operating mixed-protocol environments, the SDCS-CON-81 supports integration with protocol gateways such as the HMS Anybus X-gateway or Moxa MGate series, enabling transparent data bridging between PROFIBUS DP, Modbus RTU, DeviceNet, and Ethernet-based networks including PROFINET and EtherNet/IP. This makes the module compatible with virtually any industrial automation architecture, from legacy fieldbus installations to modern IIoT-ready smart factory platforms.

Remote diagnostics and predictive maintenance are further enhanced through the SDCS-CON-81’s fault logging and parameter access capabilities. When connected to an ABB DriveWindow or DriveAP configuration tool via the DDCS fiber optic link, maintenance engineers can remotely read drive parameters, monitor real-time waveforms, and retrieve historical fault records without interrupting production. This capability integrates naturally with plant-level SCADA systems such as Wonderware InTouch, Ignition by Inductive Automation, or Siemens WinCC, enabling centralized alarm management and trend analysis across the entire drive fleet.

Every SDCS-CON-81 unit supplied by ZYPLC undergoes pre-shipment functional verification, including power-on testing, communication interface checks, and parameter integrity validation. Units are sourced from verified industrial channels and are supplied with a 12-month warranty covering manufacturing defects and functional failures. Global logistics are handled via DHL Express and FedEx International Priority, with typical lead times of 3–7 business days to major industrial hubs in Europe, Southeast Asia, the Middle East, and the Americas.

Network Communication Table

Connected Automation Data Flow

The SDCS-CON-81 operates as the nerve center of the DCS800 drive’s control and communication architecture. At the field level, incremental encoders and analog tachometers feed speed feedback signals directly into the module’s encoder interface, while 4–20 mA process sensors and digital limit switches connect through the drive’s I/O terminal block. The SDCS-CON-81 processes these inputs in real time, executing closed-loop PID algorithms that maintain precise speed and torque regulation even under dynamic load conditions.

Moving up the data chain, the SDCS-POW-4 power supply board provides the regulated DC voltages required for the SDCS-CON-81’s logic circuits, while the SDCS-FEX-2 field excitation module receives armature current feedback from the control board to manage field weakening transitions smoothly. The SDCS-PIN-51 pulse encoder interface extends the module’s feedback capability to high-resolution incremental encoders, enabling position-aware control in winding and unwinding applications.

At the network layer, the RDCO-03 DDCS communication option module connects to the SDCS-CON-81 via fiber optic cable, establishing a high-speed, noise-immune data link to the plant’s master PLC or drive master controller. In multi-drive systems, multiple DCS800 units can be daisy-chained via DDCS, with the SDCS-CON-81 in each drive participating in a synchronized master-follower speed reference scheme. An RPBA-01 PROFIBUS adapter or REAI-01 analog I/O extension module can be added to expand the drive’s connectivity to legacy fieldbus segments or additional analog control loops.

At the supervisory level, the SCADA system — whether running on Siemens WinCC, Wonderware InTouch, or Ignition — polls the DCS800 drives via the PLC’s communication processor, retrieving real-time speed, current, voltage, and fault status data from the SDCS-CON-81’s parameter table. Alarm conditions detected by the control board — such as overcurrent, overvoltage, encoder loss, or communication timeout — are immediately propagated to the SCADA alarm server, triggering operator notifications and automated safety responses. Edge gateway devices such as the Moxa UC-8100 or Advantech WISE-5000 can further aggregate drive data for IIoT cloud analytics platforms, enabling predictive maintenance models based on historical drive performance trends.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in industrial automation is the fragmentation of control data across incompatible systems. Legacy DC drive installations often rely on proprietary communication protocols or analog signal wiring that cannot be directly integrated with modern Ethernet-based SCADA and MES platforms. The SDCS-CON-81 addresses this challenge by providing a standardized, protocol-agnostic interface layer within the DCS800 drive — one that can be extended with optional communication adapters to bridge virtually any fieldbus or industrial Ethernet standard.

In facilities where Siemens PROFIBUS DP networks coexist with ABB DDCS fiber optic drive links, the SDCS-CON-81 enables transparent data exchange between the two domains through the RPBA-01 adapter, eliminating the need for costly protocol converters or manual data entry between systems. Similarly, in plants transitioning from legacy Modbus RTU architectures to PROFINET or EtherNet/IP, the module’s adapter-based communication architecture allows incremental migration without replacing the drive hardware.

Remote monitoring and diagnostics are equally important for reducing unplanned downtime. The SDCS-CON-81’s parameter access capability — available via DDCS fiber optic link or optional fieldbus connection — allows maintenance teams to remotely interrogate drive status, adjust control parameters, and retrieve fault histories from a central engineering workstation. This eliminates the need for on-site visits to individual drive cabinets, reducing maintenance labor costs and enabling faster fault resolution. When integrated with a plant-wide SCADA system, the SDCS-CON-81 contributes to full production line transparency — providing operators with real-time visibility into motor speed, load current, energy consumption, and drive health across every DC drive in the facility.

For system integrators planning new installations or expansions, the SDCS-CON-81’s modular architecture supports scalable network design. Additional drives can be added to an existing DDCS fiber optic ring without reconfiguring the master PLC’s communication setup, and optional I/O extension modules can be added to individual drives as process requirements evolve. This scalability, combined with the module’s proven reliability in demanding industrial environments, makes the SDCS-CON-81 a long-term investment in smart factory connectivity infrastructure.

Industrial Connectivity FAQ

Q1: What communication protocols does the ABB SDCS-CON-81 support natively, and can it be extended to Ethernet-based networks?
The SDCS-CON-81 natively supports ABB’s DDCS (Distributed Drive Control System) fiber optic protocol for high-speed, noise-immune communication between drives and master controllers. For Ethernet-based networks such as PROFINET or EtherNet/IP, the DCS800 drive can be equipped with optional communication adapter modules (e.g., RPBA-01 for PROFIBUS DP, RECAN-01 for CANopen), enabling integration with virtually any industrial network architecture without replacing the core control hardware.

Q2: How does the SDCS-CON-81 ensure network stability and minimize communication latency in multi-drive systems?
The DDCS fiber optic interface used by the SDCS-CON-81 provides deterministic, low-latency communication with cycle times as fast as 2 ms, making it suitable for tight speed synchronization in multi-drive applications such as rolling mills and winding lines. The fiber optic medium is inherently immune to electromagnetic interference from drive switching noise, motor cables, and high-voltage bus bars — ensuring stable, error-free data transmission even in electrically harsh industrial environments.

Q3: Is the SDCS-CON-81 compatible with third-party PLC platforms and SCADA systems, or is it limited to ABB ecosystems?
While the SDCS-CON-81 is designed for the ABB DCS800 platform, its optional fieldbus adapters enable integration with third-party PLC platforms including Siemens S7-300/400/1500, Allen-Bradley ControlLogix, and Schneider Electric Modicon M340. SCADA compatibility extends to all major platforms — Siemens WinCC, Wonderware InTouch, Ignition by Inductive Automation, and ABB 800xA — through standard OPC DA/UA data servers connected to the master PLC.

Q4: What pre-shipment testing and warranty coverage does ZYPLC provide for the SDCS-CON-81?
Every SDCS-CON-81 unit shipped by ZYPLC undergoes a structured pre-shipment verification process that includes power-on functional testing, communication interface validation, and parameter integrity checks. Units are covered by a 12-month warranty against manufacturing defects and functional failures from the date of shipment. In the event of a warranty claim, ZYPLC provides technical support and replacement coordination to minimize downtime impact on your production operations.
