ABB SDCS-CON4 Industrial Network Interface for DCS800 Systems

ABB SDCS-CON4 Industrial Network Interface for DCS800 Systems: Enabling Seamless Industrial Data Links in Smart Factory Environments

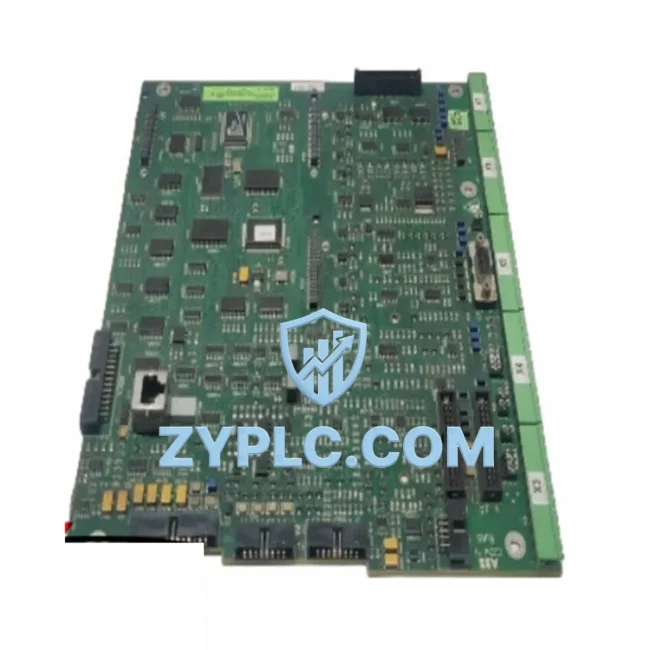

The ABB SDCS-CON4 is a high-performance drive control board engineered for the DCS800 series DC drive platform, delivering robust industrial network communication capabilities across complex automation architectures. Designed to serve as the intelligence core of the DCS800 drive, the SDCS-CON4 manages real-time signal processing, protocol handling, and data exchange between field-level devices and upper-level control systems — making it an indispensable component in modern smart factory deployments.

In today’s industrial landscape, seamless connectivity between field devices, PLC controllers, SCADA platforms, and HMI systems is no longer optional — it is the foundation of operational efficiency. The SDCS-CON4 addresses this need by providing a stable, high-speed communication backbone that integrates the DCS800 drive into the broader automation network with minimal latency and maximum reliability.

Network Communication Table

Connected Automation Data Flow

The SDCS-CON4 sits at the heart of a sophisticated industrial data flow architecture. In a typical smart factory deployment, the data chain begins at the sensor and actuator level — where encoders, tachometers, and current transducers feed real-time process values into the DCS800 drive. The SDCS-CON4 processes these signals internally and transmits structured data upstream via its fiber optic DDCS channels.

At the PLC layer, the SDCS-CON4 interfaces directly with ABB AC500 PLC systems or Siemens S7-300/S7-400 controllers through the SDCS-COM8 PROFIBUS-DP adapter, enabling cyclic process data exchange with scan times under 10 ms. This tight integration ensures that speed references, torque commands, and drive status words are continuously synchronized between the controller and the drive — a critical requirement for coordinated multi-axis motion in rolling mills, winding machines, and extruder lines.

For remote I/O expansion, the SDCS-CON4 supports connection to ABB CI854 PROFIBUS I/O modules and compatible remote I/O racks, allowing distributed sensor data to be aggregated and forwarded to the drive control loop without additional signal conditioning hardware. This architecture significantly reduces wiring complexity and improves system scalability.

At the HMI and SCADA level, the SDCS-CON4 enables full integration with ABB Ability™ System 800xA and third-party SCADA platforms via the DDCS fiber optic network or through gateway devices such as the ABB NMBP-01 Modbus adapter. Operators gain real-time visibility into drive parameters — including output current, DC voltage, motor speed, and fault codes — directly on SCADA dashboards and HMI panels such as the ABB CP600 HMI series.

In multi-drive configurations, the SDCS-CON4 supports master-follower topologies using the DDCS fiber optic ring, coordinating up to 12 DCS800 drives in synchronized operation. This is particularly valuable in paper machine drive sections, where precise speed matching between the DCS800-S02-0060-05 and DCS800-S02-0200-05 drive units is essential for product quality and process stability.

Edge computing integration is also supported through compatible ABB Edge gateways and third-party IIoT platforms, where the SDCS-CON4’s real-time data stream can be forwarded to cloud analytics systems for predictive maintenance, energy monitoring, and OEE optimization. The drive’s built-in adaptive programming environment further allows custom logic blocks to be executed locally, reducing dependency on upper-level controllers for time-critical responses.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in industrial automation is the fragmentation of communication protocols across different generations of equipment. Legacy DC drives often operate on proprietary serial protocols that cannot natively communicate with modern Ethernet-based SCADA systems, creating data silos that obscure process performance and complicate maintenance workflows.

The SDCS-CON4 directly addresses this challenge through its multi-protocol architecture. By supporting DDCS fiber optic communication natively and enabling PROFIBUS-DP, DeviceNet, and Modbus RTU connectivity through plug-in adapter modules, the SDCS-CON4 acts as a universal protocol bridge — connecting legacy DC drive infrastructure to contemporary industrial networks without requiring full drive replacement.

For sites transitioning to Industry 4.0 architectures, the SDCS-CON4 provides a cost-effective migration path. Rather than replacing entire drive systems, engineers can upgrade the control board and add the appropriate communication adapter to bring existing DCS800 drives into the digital network. This approach preserves capital investment while enabling production line transparency, remote monitoring, and data-driven maintenance scheduling.

Remote diagnostics capability is a key operational benefit. Through the DDCS network and DriveWindow software, maintenance engineers can access full drive parameter sets, fault histories, and real-time waveform data from a central control room — eliminating the need for on-site intervention for routine diagnostics. Alarm events are automatically logged with timestamps and transmitted to the SCADA system, enabling rapid root-cause analysis and minimizing unplanned downtime.

System expansion is equally straightforward. The SDCS-CON4’s modular design allows additional I/O, encoder feedback, and communication modules to be added as production requirements evolve, ensuring that the drive control architecture can scale alongside the facility without disruptive re-engineering.

Every SDCS-CON4 unit supplied by ZYPLC undergoes pre-shipment functional testing, including communication channel verification, parameter upload/download validation, and fault simulation testing. Units are shipped with full documentation and are covered by a 12-month warranty, with in-stock availability ensuring rapid delivery to support urgent maintenance and project timelines.

Industrial Connectivity FAQ

Q1: What communication protocols does the ABB SDCS-CON4 support, and how does it integrate with PROFIBUS-DP networks?
The SDCS-CON4 natively supports ABB’s DDCS fiber optic protocol for high-speed drive-to-drive and drive-to-controller communication. PROFIBUS-DP integration is achieved by installing the SDCS-COM8 adapter module into the control board’s option slot, enabling the DCS800 drive to appear as a standard PROFIBUS slave device on the network. This allows seamless integration with PROFIBUS master controllers, including Siemens S7 PLCs and ABB AC500 systems, with cyclic data exchange supporting up to 244 bytes of process data per cycle.

Q2: How does the SDCS-CON4 ensure network stability in high-interference industrial environments?
The SDCS-CON4 uses fiber optic DDCS channels for its primary communication links, providing complete galvanic isolation and immunity to electromagnetic interference — a critical advantage in environments with large motor drives, welding equipment, or high-voltage switching. The fiber optic medium eliminates ground loop issues and supports cable runs of up to 15 meters per segment, making it suitable for distributed drive installations across large production floors.

Q3: Can the SDCS-CON4 be integrated with third-party SCADA systems, and what data is available for monitoring?
Yes. Through the appropriate communication adapter (PROFIBUS, DeviceNet, or Modbus), the SDCS-CON4 exposes a comprehensive set of drive parameters to SCADA and HMI systems, including motor speed, armature current, DC link voltage, torque reference, fault codes, and drive status words. This data can be mapped to standard SCADA tags for real-time display, trending, and alarm management. Integration with ABB System 800xA, Wonderware, and Ignition SCADA platforms has been validated in field installations.

Q4: What does the 12-month warranty cover, and what pre-shipment testing is performed on each unit?
The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions. Each SDCS-CON4 unit undergoes pre-shipment testing that includes power-on verification, DDCS communication channel testing, parameter memory validation, and I/O functional checks. Units are shipped with anti-static packaging and full technical documentation. ZYPLC maintains in-stock inventory of SDCS-CON4 boards to support urgent replacement requirements, with same-day dispatch available for orders confirmed before 3:00 PM CST.
