ABB SDCS-IOB-21-COAT Industrial Network Interface for DCS800 Systems

ABB SDCS-IOB-21-COAT Industrial Network Interface for DCS800 Systems: Precision I/O Data Link for Smart Factory Automation

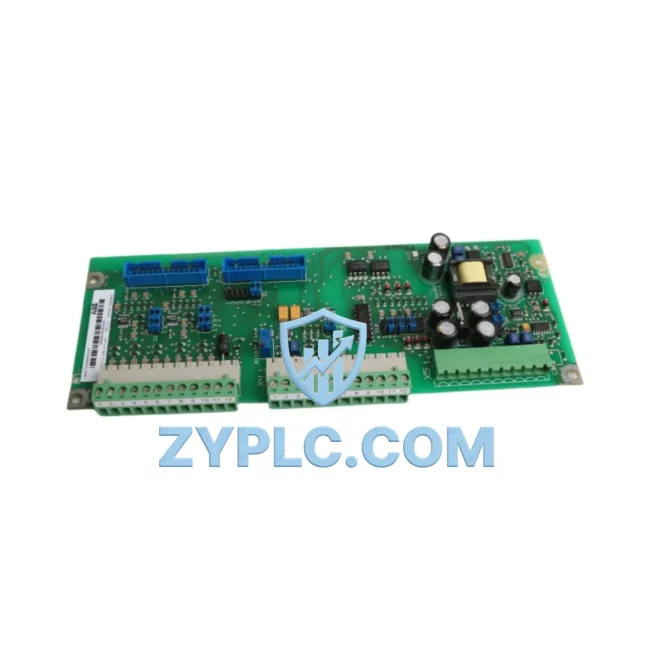

The ABB SDCS-IOB-21-COAT (Part No. 3ADT220090R0014) is a dedicated I/O Interface Module engineered for the ABB DCS800 Series DC drive platform. Designed to operate at the intersection of field-level signal acquisition and upper-level control systems, this module serves as a critical data bridge in industrial automation architectures — connecting drive hardware to PLC controllers, SCADA platforms, HMI terminals, and remote monitoring systems with precision and reliability.

In modern smart factory environments, the integrity of the data link between a DC drive and its supervisory control layer determines the responsiveness of the entire production line. The SDCS-IOB-21-COAT addresses this requirement by providing a structured, high-density I/O interface that supports real-time signal exchange, analog and digital I/O mapping, and seamless integration into the DCS800’s internal communication backbone. Whether deployed in metal processing, paper mills, marine propulsion, or heavy industrial drive applications, this module ensures that every control signal — from speed reference inputs to torque feedback outputs — is transmitted accurately and without latency.

Network Communication Table

Connected Automation Data Flow

The SDCS-IOB-21-COAT operates as the I/O nerve center of the DCS800 drive system, enabling a continuous and structured data flow across multiple layers of the automation hierarchy. At the field level, analog signals from process sensors — including speed encoders, current transducers, and temperature probes — are routed through the module’s input channels, digitized, and passed to the DCS800’s internal processor for real-time drive control calculations.

On the output side, the module drives analog reference signals to downstream actuators and provides digital status outputs that feed directly into ABB AC500 PLC or ABB AC800M DCS controller input cards. This tight coupling between the drive’s I/O layer and the PLC control layer eliminates the signal latency that would otherwise occur when using external signal converters or relay interfaces.

For multi-drive systems — common in winding lines, extruders, and coordinated conveyor applications — the SDCS-IOB-21-COAT works in conjunction with the SDCS-COM-8 DDCS Communication Module, which provides fiber optic master-follower communication between multiple DCS800 drives. The I/O module handles local signal conditioning while the COM-8 manages inter-drive synchronization, together forming a complete distributed drive control network.

At the supervisory level, drive status data collected by the SDCS-IOB-21-COAT is aggregated and forwarded via the DCS800’s fieldbus interface — typically through an SDCS-COM-81 PROFIBUS-DP Module or SDCS-COM-82 DeviceNet Module — to the plant’s SCADA system or DCS platform. This enables operators to monitor real-time drive parameters including output current, motor speed, torque reference, and fault status from a centralized ABB 800xA System or third-party HMI terminal without requiring direct access to the drive cabinet.

In remote diagnostic scenarios, the I/O data captured by the SDCS-IOB-21-COAT is also accessible through ABB DriveAP or ABB Drive Composer software tools connected via the drive’s service port, allowing maintenance engineers to perform parameter trending, fault log analysis, and I/O signal verification without interrupting production. This capability is particularly valuable in facilities where drives are installed in remote or hazardous locations, reducing the need for on-site intervention.

The conformal coating (COAT) variant of this module provides additional protection against humidity, dust, and corrosive atmospheres — making it the preferred choice for installations in coastal environments, chemical processing plants, and outdoor enclosures where standard PCB assemblies would be vulnerable to environmental degradation.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in industrial drive applications is the fragmentation of control data across incompatible systems. Legacy DC drive installations often rely on hardwired analog signals and proprietary communication protocols that cannot be directly integrated into modern Ethernet-based SCADA or MES platforms. The result is data isolation — where critical drive performance metrics remain trapped at the field level, invisible to production managers and maintenance teams operating from control rooms or remote locations.

The SDCS-IOB-21-COAT directly addresses this challenge by providing a standardized, high-density I/O interface that bridges the DCS800 drive’s internal signal world with the broader automation network. By consolidating analog inputs, digital inputs, and relay outputs into a single plug-in module, it eliminates the need for external signal conditioning panels and reduces wiring complexity — a common source of signal integrity issues in high-noise industrial environments.

When paired with a compatible fieldbus communication module such as the SDCS-COM-81 for PROFIBUS or the SDCS-COM-85 for PROFINET, the DCS800 drive system becomes fully transparent to the plant’s SCADA and PLC infrastructure. Drive speed, current, torque, and fault data are published to the network in real time, enabling production line transparency and supporting predictive maintenance strategies based on actual drive operating data rather than scheduled inspection intervals.

For facilities undergoing digital transformation, the SDCS-IOB-21-COAT also supports integration with edge gateway devices that aggregate drive data and forward it to cloud-based analytics platforms. This enables long-term trend analysis, energy consumption monitoring, and remote alarm management — capabilities that are increasingly required in Industry 4.0 and smart factory initiatives. The module’s robust design and conformal coating ensure that this connectivity is maintained reliably even in the demanding thermal and electrical environments typical of large DC drive installations.

All units supplied by ZYPLC are sourced from verified inventory channels, subjected to pre-shipment functional inspection, and covered by a 12-month warranty — providing procurement teams and maintenance engineers with the confidence to specify this module for both new installations and replacement applications.

Industrial Connectivity FAQ

Q1: What communication protocols does the SDCS-IOB-21-COAT support?
The SDCS-IOB-21-COAT is an I/O interface module that operates on the DCS800’s internal drive bus, handling analog and digital signal I/O rather than fieldbus communication directly. For PROFIBUS-DP, DeviceNet, PROFINET, or Modbus TCP connectivity, a dedicated communication module such as the SDCS-COM-81 or SDCS-COM-82 is installed alongside the IOB-21 to provide network protocol translation and data exchange with PLC and SCADA systems.

Q2: Is the SDCS-IOB-21-COAT compatible with all DCS800 drive variants?
Yes. The SDCS-IOB-21-COAT is designed as a standard plug-in option module for the ABB DCS800 Series DC drive platform, compatible across the full power range of the DCS800 family. It occupies one of the drive’s option module slots and is recognized automatically by the drive’s firmware during initialization. Compatibility should be verified against the specific DCS800 firmware version in use for installations involving older drive hardware.

Q3: How does the conformal coating affect module performance and longevity?
The COAT designation indicates that the module’s PCB assembly has been treated with a conformal coating — a protective chemical layer applied to the circuit board to resist moisture, dust, fungal growth, and corrosive contaminants. This treatment does not affect electrical performance or signal accuracy but significantly extends the module’s operational lifespan in harsh industrial environments. It is the recommended variant for installations in high-humidity, coastal, or chemically aggressive atmospheres.

Q4: What warranty and pre-shipment testing does ZYPLC provide for this module?
All SDCS-IOB-21-COAT units supplied by ZYPLC are covered by a 12-month warranty from the date of shipment. Each unit undergoes pre-shipment inspection to verify physical integrity and part number authenticity before dispatch. For customers requiring additional functional verification or third-party test certification, ZYPLC can arrange extended inspection services upon request. Contact our technical sales team at plc.sales@zyplc.com or +86 19859288691 for details.
