ABB SDCS-IOE-2C Industrial Network Interface for DCS800 Systems

ABB SDCS-IOE-2C Industrial Network Interface for DCS800 Systems: Bridging the Industrial Data Link in Smart Factory Environments

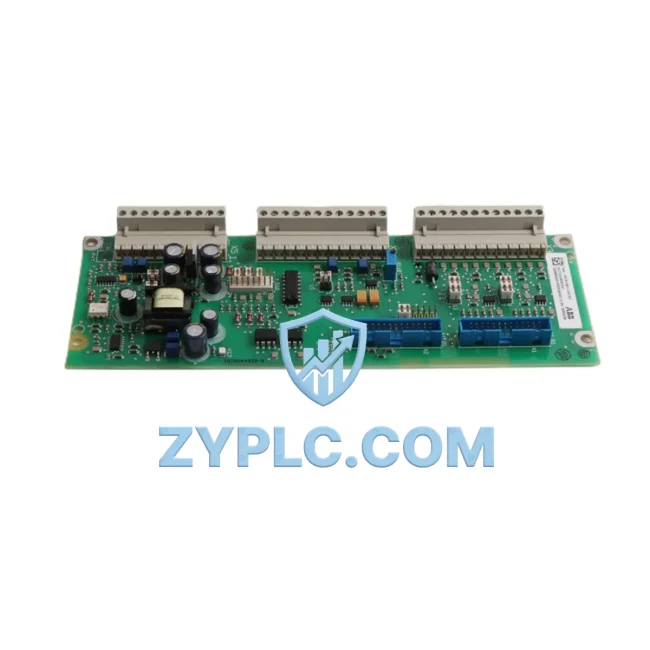

The ABB SDCS-IOE-2C is a precision-engineered measurement and I/O expansion board designed for seamless integration within the ABB DCS800 DC drive series. In modern smart factory deployments, where real-time data integrity and uninterrupted communication between field devices and supervisory systems are non-negotiable, the SDCS-IOE-2C serves as a critical node in the industrial data chain. It extends the analog signal acquisition and encoder feedback capabilities of the DCS800 platform, enabling engineers to build robust, scalable, and diagnostics-ready drive control architectures across a wide range of industrial applications — from heavy-duty paper mills and metal rolling lines to chemical processing plants and marine propulsion systems.

As industrial automation continues to evolve toward fully connected production environments, the ability to capture, transmit, and act on real-time process data becomes the defining factor of operational efficiency. The SDCS-IOE-2C addresses this need by providing expanded analog I/O channels and encoder interface support directly at the drive level, eliminating signal latency and reducing the dependency on external signal conditioning hardware. This tightly integrated approach ensures that the DCS800 drive can respond to process variables with the speed and precision demanded by closed-loop control systems.

Network Communication Table

Connected Automation Data Flow

In a fully integrated DCS800-based drive system, the SDCS-IOE-2C sits at the heart of the signal acquisition layer. Process sensors — including speed encoders, temperature transmitters, and current transducers — feed analog signals directly into the SDCS-IOE-2C’s expanded input channels. These signals are conditioned and passed to the DCS800 drive’s main control board, the SDCS-CON-4, which executes the closed-loop control algorithms in real time. The SDCS-CON-4 communicates upstream with the plant’s PLC infrastructure — typically an ABB AC500 PLC or a Siemens S7-300/S7-400 series controller — via the RDCO-04 DDCS fiber optic communication module, which provides electrically isolated, high-speed data transfer immune to industrial electromagnetic interference.

At the supervisory level, the drive data — including speed reference, actual speed, torque output, fault codes, and I/O status — is aggregated by a SCADA gateway running on platforms such as Wonderware InTouch, Ignition SCADA, or ABB’s own System 800xA. Operators at the HMI terminal — whether a panel-mounted ABB CP600 HMI or a PC-based SCADA workstation — can monitor drive performance, adjust setpoints, and acknowledge alarms without interrupting the production process. The SDCS-IOE-2C’s encoder feedback channel is particularly valuable in applications where precise position or speed tracking is required, such as winding machines, extruders, and rolling mills, where even minor deviations in speed synchronization can result in product defects or equipment damage.

For multi-drive systems, the SDCS-IOE-2C enables the DCS800 to participate in coordinated drive networks alongside other ABB drive products such as the ACS880 AC drive and the ACS580 general-purpose drive, all managed through a unified DDCS or PROFIBUS-DP network backbone. Remote I/O modules — such as the ABB CI854 PROFIBUS DP/V1 interface module — extend the network reach to distributed field devices, while edge gateways collect and forward drive telemetry to cloud-based analytics platforms for predictive maintenance and energy optimization. Industrial power supplies, including the ABB CP-E 24VDC series, ensure stable auxiliary power delivery to the drive control electronics, maintaining communication integrity even during load transients.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in legacy industrial installations is the fragmentation of communication protocols across different generations of equipment. A plant may simultaneously operate DCS800 DC drives using analog speed references, newer AC drives communicating over PROFIBUS-DP, and PLCs exchanging data via Modbus RTU — creating data silos that prevent unified monitoring and control. The SDCS-IOE-2C, combined with the appropriate ABB communication adapter modules (such as the RPBA-01 PROFIBUS adapter or the RMBA-01 Modbus adapter), bridges these protocol gaps by enabling the DCS800 to participate in standardized industrial networks without requiring costly drive replacements.

Remote monitoring and diagnostics are further enhanced through the drive’s network connectivity. Maintenance engineers can access real-time fault logs, I/O status, and performance trends from a central SCADA workstation or even a mobile device, dramatically reducing mean time to repair (MTTR) and eliminating the need for on-site inspection of every drive cabinet. Production line transparency — knowing exactly which drive is running at what load, speed, and temperature at any given moment — becomes achievable across the entire plant floor, enabling proactive maintenance scheduling and reducing unplanned downtime.

System expansion is equally straightforward. As production capacity grows, additional DCS800 drives equipped with SDCS-IOE-2C boards can be added to the existing DDCS or PROFIBUS network with minimal reconfiguration. The modular architecture of the DCS800 platform means that new measurement channels, encoder inputs, and analog outputs can be brought online without disrupting the existing control logic, protecting the plant’s investment in its automation infrastructure.

Every ABB SDCS-IOE-2C unit supplied by ZYPLC undergoes pre-shipment functional testing to verify analog I/O channel integrity, encoder interface operation, and backplane communication. Units are shipped with full 12-month warranty coverage, ensuring that any manufacturing defects or premature failures are addressed at no additional cost to the customer. Our inventory is maintained to support urgent project timelines, with same-day dispatch available for in-stock items.

Industrial Connectivity FAQ

Q1: What communication protocols does the ABB SDCS-IOE-2C support for integration with SCADA and PLC systems?
The SDCS-IOE-2C itself operates as an analog I/O and encoder expansion board within the DCS800 drive’s internal architecture. For external network communication with SCADA, PLC, or DCS systems, the DCS800 platform supports PROFIBUS-DP (via RPBA-01 adapter), Modbus RTU (via RMBA-01 adapter), and ABB’s proprietary DDCS fiber optic protocol (via RDCO-04 module). The SDCS-IOE-2C’s expanded I/O data is accessible to all these protocols through the DCS800’s unified parameter and signal database.

Q2: How does the SDCS-IOE-2C contribute to network stability in high-interference industrial environments?
The SDCS-IOE-2C is designed to operate within the DCS800’s shielded drive cabinet environment, with signal inputs that include filtering and conditioning to reject common-mode noise from variable-frequency switching and heavy motor loads. When combined with the RDCO-04 fiber optic communication module for upstream network connectivity, the system achieves complete galvanic isolation between the drive electronics and the plant network, eliminating ground loop interference and ensuring stable, error-free data transmission even in electrically noisy environments such as steel mills, mining operations, and large-scale HVAC systems.

Q3: Can the SDCS-IOE-2C be used to expand an existing DCS800 installation without system downtime?
In most cases, the SDCS-IOE-2C can be installed during a scheduled maintenance window without requiring a full system reconfiguration. The board slots into the DCS800’s designated expansion slot, and the drive’s firmware automatically recognizes the new I/O channels upon restart. Parameter assignments for the new analog inputs, outputs, and encoder channels are configured via the DriveWindow Light PC tool or the CDP312R control panel, allowing engineers to map the new signals to existing control logic with minimal disruption to production schedules.

Q4: What does the 12-month warranty cover, and what is the process for warranty claims?
The 12-month warranty provided by ZYPLC covers all manufacturing defects, component failures, and functional faults present at the time of shipment or arising from normal operating conditions within the warranty period. It does not cover damage resulting from incorrect installation, overvoltage events, or unauthorized modifications. To initiate a warranty claim, customers contact ZYPLC’s technical support team at plc.sales@zyplc.com with the unit’s serial number, purchase order reference, and a description of the fault. ZYPLC will arrange for inspection, repair, or replacement as appropriate, with the goal of minimizing disruption to the customer’s production operations.
