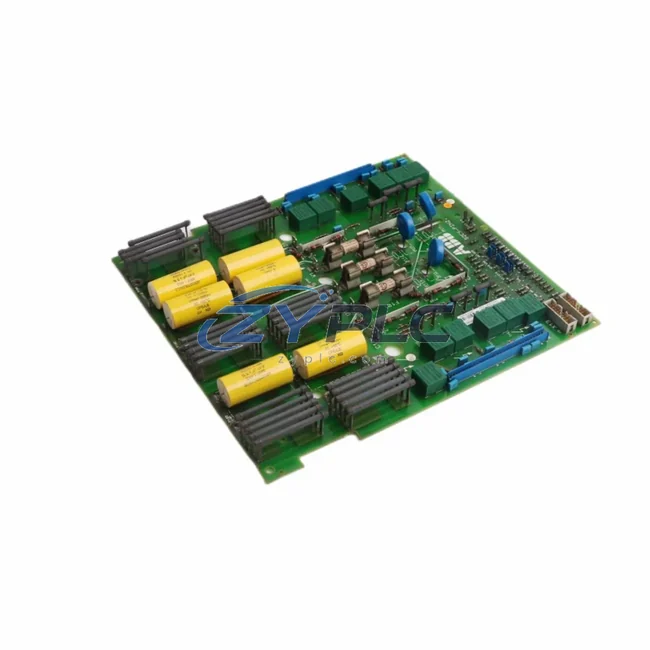

ABB SDCS-PIN-21 Industrial Network Interface for DCS Systems

ABB SDCS-PIN-21: Industrial Data Link for Smart Factory DCS Drive Networks

The ABB SDCS-PIN-21 is a high-performance Power Interface Board engineered for ABB’s DCS series DC drive platforms, serving as a critical node in the industrial data chain that connects field-level power conversion equipment to supervisory control and monitoring systems. In modern smart factory environments, where real-time data integrity and uninterrupted communication between drives, controllers, and upper-level systems are non-negotiable, the SDCS-PIN-21 delivers the electrical isolation, signal conditioning, and interface reliability that industrial automation demands.

Designed to operate within ABB’s modular DCS drive architecture, the SDCS-PIN-21 interfaces directly with the main control board — typically the ABB SDCS-CON-4 — providing the power supply routing and analog/digital signal interface layer that enables the drive’s closed-loop control algorithms to function with precision. This board is not merely a passive component; it is an active participant in the drive’s internal communication bus, ensuring that current feedback, voltage sensing, and firing pulse signals are transmitted with minimal latency across the drive’s internal network.

Compatibility & Integration Notes

Connected Automation Data Flow

In a fully integrated smart factory, the SDCS-PIN-21 sits at the heart of the DC drive’s power conversion and signal processing chain. The data flow begins at the field level, where motor current and voltage sensors feed analog signals into the SDCS-PIN-21’s measurement circuits. These conditioned signals are then passed to the ABB SDCS-CON-4 control board, which executes the drive’s speed and torque regulation algorithms in real time.

The SDCS-CON-4, acting as the drive’s primary intelligence unit, communicates upstream via optional fieldbus adapters — such as the ABB RDCO-03 DDCS fiber optic link or a PROFIBUS DP adapter module — to the plant’s PLC layer. In many installations, an ABB AC500 PLC or a Siemens S7-300/S7-400 controller receives drive status data, speed references, and fault codes from the DCS drive, integrating them into the broader production control loop.

At the supervisory level, an ABB System 800xA or a third-party SCADA platform — such as Wonderware InTouch or Ignition by Inductive Automation — collects real-time drive data via OPC-UA or PROFIBUS gateways, enabling operators to monitor motor load, drive temperature, output current, and alarm states from a centralized HMI. Remote I/O modules, such as the ABB S800 I/O series, extend the monitoring reach to distributed field devices across the production floor.

For edge-level diagnostics, an industrial edge gateway — such as the ABB Ability Edge or a Moxa MGate protocol converter — can bridge the DCS drive’s internal data to cloud-based analytics platforms, enabling predictive maintenance algorithms to analyze vibration trends, thermal profiles, and load cycles. Variable frequency drives on adjacent AC motor circuits, such as the ABB ACS880 series, may share the same PROFIBUS or EtherNet/IP network segment, allowing unified drive management across mixed AC/DC motor fleets.

Power quality at the drive input is monitored by industrial power analyzers connected to the same network backbone, while the SDCS-PIN-21 ensures that the DC bus voltage and thyristor firing signals remain synchronized — a prerequisite for stable regenerative braking and four-quadrant operation in demanding applications such as winding machines, extruders, and rolling mills.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in legacy industrial environments is the fragmentation of drive data across incompatible protocols and isolated control islands. Older DC drive installations — including many DCS400 and DCS500 systems — were commissioned before the widespread adoption of open fieldbus standards, leaving them unable to participate in modern SCADA or MES data architectures without hardware-level intervention.

The SDCS-PIN-21, as a genuine ABB replacement board, restores the drive’s full communication capability, enabling the SDCS-CON-4 to once again interface with fieldbus adapters and transmit real-time data to upper-level systems. This eliminates the data isolation that occurs when a faulty power interface board causes the drive to operate in a degraded, non-communicating state — a condition that prevents SCADA systems from receiving accurate speed, current, and fault data, and forces operators to rely on local panel indicators rather than centralized monitoring.

By restoring the SDCS-PIN-21, plant engineers can re-establish the full data chain: from motor feedback signals at the field level, through the drive’s internal control bus, across the fieldbus network to the PLC, and up to the SCADA/HMI layer. This end-to-end data visibility supports production line transparency, enables remote diagnostics without on-site intervention, and provides the fault history data needed for root cause analysis and predictive maintenance scheduling.

For facilities undergoing digital transformation, a functioning SDCS-PIN-21 is also a prerequisite for integrating legacy DC drives into IIoT architectures. Protocol gateways can only extract meaningful data from a drive that is operating with all internal communication boards intact — making the SDCS-PIN-21 a foundational component in any smart factory connectivity upgrade that includes legacy DC drive assets.

System scalability is another key benefit. With the SDCS-PIN-21 restored, additional DCS drive nodes can be added to the existing fieldbus segment without requiring a complete drive replacement, protecting capital investment while extending the operational life of proven DC drive technology in applications where precise torque control and regenerative capability remain essential.

Industrial Connectivity FAQ

Q1: Does the ABB SDCS-PIN-21 support PROFIBUS or EtherNet/IP communication directly?
The SDCS-PIN-21 itself is an internal power interface board and does not directly implement fieldbus protocols. Communication with PROFIBUS DP, DeviceNet, or EtherNet/IP networks is handled by optional fieldbus adapter modules connected to the SDCS-CON-4 control board. The SDCS-PIN-21 must be functioning correctly for the SDCS-CON-4 to operate and communicate via these adapters.

Q2: What is the communication latency impact of a degraded SDCS-PIN-21?
A degraded or faulty SDCS-PIN-21 can cause intermittent signal dropouts in the drive’s internal measurement bus, leading to erratic speed feedback, false overcurrent trips, and loss of fieldbus communication. This directly increases response latency in the control loop and can cause SCADA systems to report stale or missing data, triggering unnecessary alarms and production stoppages.

Q3: Is the SDCS-PIN-21 compatible with all DCS series drive variants?
The SDCS-PIN-21 is designed for use within ABB’s DCS series DC drive platform, including DCS400, DCS500, and DCS600 variants. Compatibility depends on the specific drive rating and hardware revision. We recommend verifying the drive’s existing board configuration and firmware version before ordering. Our technical team can assist with compatibility confirmation prior to dispatch.

Q4: What quality assurance and warranty terms apply to this board?
Every SDCS-PIN-21 unit supplied by ZYPLC undergoes functional testing prior to shipment, including power-on verification and signal integrity checks. All units are covered by a warranty terms confirmed during quotation against manufacturing defects and functional failures. In the event of a warranty claim, we provide rapid replacement or repair support to minimize production downtime. Stock is maintained for shipment arranged after confirmation via DHL or FedEx international express.
