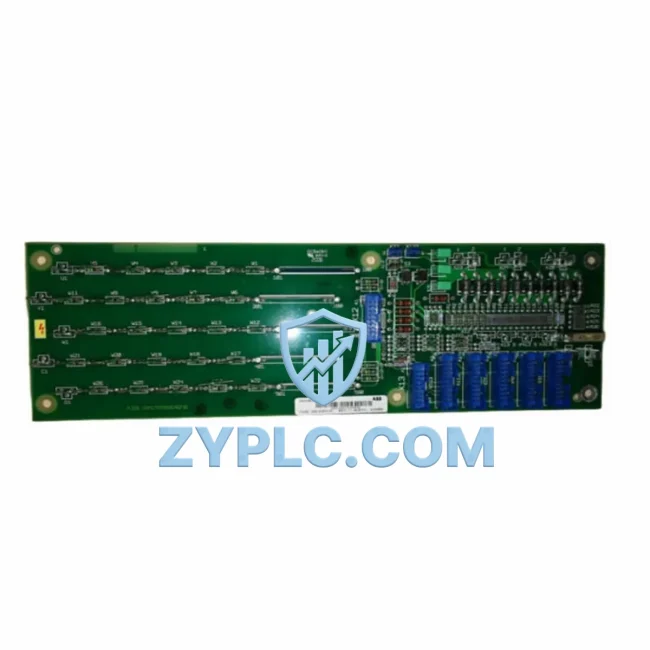

ABB SDCS-PIN-51 Industrial Network Interface for DCS800 Systems

ABB SDCS-PIN-51 3ADT220090R0006: Industrial Data Link for DCS800 Drive Systems

The ABB SDCS-PIN-51 (3ADT220090R0006) is a high-performance pulse encoder interface board engineered for seamless integration within the ABB DCS800 series DC drive platform. In modern smart factory environments, the integrity of the data link between field-level devices and upper-level control systems is paramount. This encoder interface board serves as a critical node in that chain — capturing real-time speed and position feedback from incremental encoders and transmitting precise digital signals to the DCS800 drive controller, enabling closed-loop speed regulation with millisecond-level accuracy.

As industrial sites evolve toward fully connected automation architectures, the SDCS-PIN-51 plays a foundational role in bridging the gap between rotating machinery and the digital control layer. Whether deployed in heavy-duty paper mills, steel rolling lines, crane hoisting systems, or large-scale extruder drives, this board ensures that encoder pulse data flows without interruption from the motor shaft to the drive’s feedback processing unit — forming the backbone of reliable torque and velocity control.

Network Communication Table

Connected Automation Data Flow

Understanding the SDCS-PIN-51’s role requires tracing the full data flow across the automation hierarchy. At the field level, incremental encoders mounted on DC motor shafts generate high-frequency pulse trains representing rotational speed and angular position. The SDCS-PIN-51 receives these signals and conditions them for the DCS800 drive’s internal feedback processor, enabling the drive to execute precise closed-loop PID speed regulation in real time.

Within a typical DCS800 installation, the drive communicates upstream via an ABB RDCO-03 DDCS fiber optic adapter, linking the drive to an ABB AC800M controller or a Siemens S7-400 PLC over a high-speed drive bus. The PLC or DCS controller aggregates speed references, torque limits, and fault status from multiple drives simultaneously. For sites running ABB Ability™ System 800xA or WinCC SCADA, the drive data — including encoder-derived speed feedback — is published to the supervisory layer via PROFIBUS-DP using an ABB RPBA-01 PROFIBUS adapter module installed in the DCS800 option slot.

On the remote I/O side, ABB CI854 PROFIBUS DP/V1 interface modules extend the network to distributed field panels, collecting analog and digital signals from pressure transmitters, temperature sensors, and limit switches. These signals are time-stamped and forwarded to the SCADA historian alongside the encoder speed data, enabling operators to correlate mechanical performance with process variables in a unified dashboard. For HMI visualization, ABB CP600 operator panels or Siemens TP1200 Comfort HMIs display real-time drive speed, current, and fault codes derived from the encoder feedback chain anchored by the SDCS-PIN-51.

In multi-drive configurations — such as coordinated winder/unwinder systems or tandem rolling mills — the SDCS-PIN-51 boards installed across multiple DCS800 units feed synchronized speed data to a master ABB DCS800 Master-Follower control topology, ensuring tension control and speed matching across the entire drive train. Edge gateways such as the Moxa MGate MB3480 or HMS Anybus X-gateway can further bridge the DCS800 network to Ethernet/IP or Modbus TCP for integration with MES and ERP platforms, completing the data journey from motor shaft to enterprise system.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in legacy industrial environments is data isolation — where field devices, drives, and control systems operate in silos, unable to share real-time information across the plant network. The SDCS-PIN-51, as part of the ABB DCS800 ecosystem, directly addresses this problem by providing a standardized, high-fidelity encoder feedback interface that integrates natively with ABB’s drive communication architecture.

Sites that previously relied on analog tachometer signals — prone to noise, drift, and calibration errors — can upgrade to digital encoder feedback via the SDCS-PIN-51, immediately improving speed regulation accuracy and enabling digital diagnostics. When combined with the DCS800’s built-in fieldbus capability and optional RPBA-01 or RDCO-03 communication adapters, the drive becomes a fully networked node on the plant PROFIBUS or DDCS backbone, eliminating the data gap between the drive layer and the SCADA/DCS layer.

For remote monitoring and predictive maintenance, the encoder data processed by the SDCS-PIN-51 feeds into the DCS800’s internal fault logging and diagnostic registers, which can be polled by a SCADA system or an edge computing gateway at configurable intervals. This enables maintenance teams to detect encoder signal degradation, cable faults, or mechanical wear trends before they cause unplanned downtime — transforming reactive maintenance into a data-driven, proactive strategy. Production line transparency is further enhanced as real-time speed and position data becomes available to MES systems, allowing accurate OEE calculation and shift-level performance reporting.

System expansion is equally straightforward: additional DCS800 drives equipped with SDCS-PIN-51 boards can be added to the existing drive bus without reconfiguring the upper-level control architecture, supporting phased capacity upgrades with minimal engineering effort. All units are shipped after full functional testing and are covered by a 12-month warranty, with in-stock availability ensuring short lead times for both planned projects and emergency replacements.

Industrial Connectivity FAQ

Q1: What encoder types are compatible with the SDCS-PIN-51?
The SDCS-PIN-51 supports incremental encoders with TTL (5V) and HTL (10–30V) output levels, providing A/B/Z channel inputs. It is designed exclusively for use with the ABB DCS800 DC drive series and must be installed in the designated encoder interface slot of the drive.

Q2: Can the DCS800 with SDCS-PIN-51 integrate with PROFIBUS-DP SCADA systems?
Yes. By adding an ABB RPBA-01 PROFIBUS-DP adapter to the DCS800’s fieldbus option slot, the drive — including all encoder-derived speed and position data — becomes a fully addressable PROFIBUS slave node. This allows seamless integration with Siemens S7 PLCs, ABB AC800M controllers, and SCADA platforms such as WinCC, iFIX, or Intouch.

Q3: How is network stability and signal integrity ensured over long cable runs?
The SDCS-PIN-51 includes differential signal input circuitry that rejects common-mode noise, making it suitable for industrial environments with high electromagnetic interference from variable frequency drives, contactors, and power cables. For cable runs exceeding 50 meters, shielded twisted-pair encoder cables with proper grounding at the drive end are recommended per ABB installation guidelines.

Q4: What does the 12-month warranty cover, and how is pre-shipment testing conducted?
Every SDCS-PIN-51 unit undergoes functional verification testing prior to shipment, including encoder signal input validation and drive communication handshake confirmation. The 12-month warranty covers component failure under normal operating conditions and includes technical support for installation and commissioning. Replacement or repair is provided at no charge for verified warranty claims within the coverage period.

—
