ABB SDCS-PIN-H01 3ADT318800R1501 Industrial Network Interface for DCS Series Systems

ABB SDCS-PIN-H01 3ADT318800R1501: Industrial Data Link for DCS Series Drive Systems

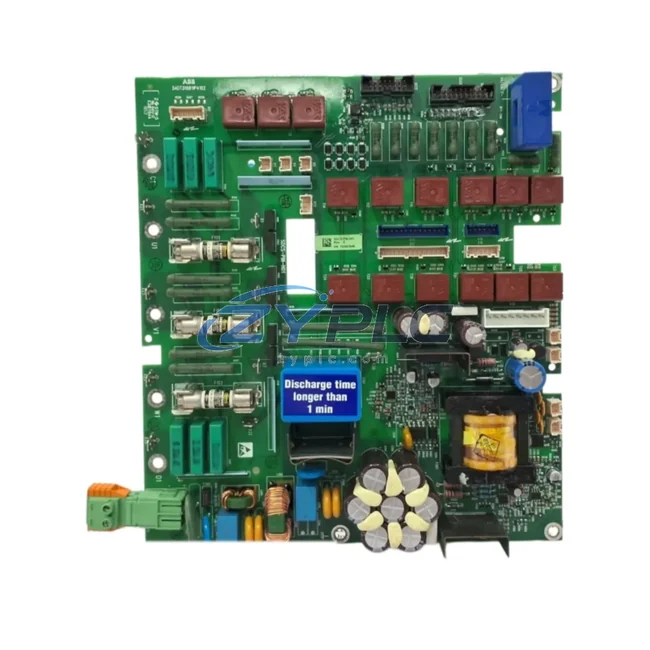

The ABB SDCS-PIN-H01 (Part No. 3ADT318800R1501) is a precision-engineered power interface board designed for ABB’s DCS Series DC drive platforms. In modern smart factory environments, this board serves as a critical node in the industrial data chain — bridging analog signal conditioning, power feedback, and drive-level diagnostics into a unified, network-ready communication architecture. Whether deployed in a standalone DC motor control cabinet or integrated into a multi-axis drive system supervised by an ABB ACS880 or ACS580 AC/DC converter, the SDCS-PIN-H01 ensures that real-time power data flows reliably from the drive layer to the control and monitoring layer above.

In industrial automation sites where data isolation is a persistent challenge, the SDCS-PIN-H01 plays a foundational role. It interfaces directly with the SDCS-CON-H1 control board — the computational core of the DCS Series drive — enabling seamless exchange of armature current feedback, field excitation signals, and fault status data. This tight hardware integration means that upstream systems, including PROFIBUS-DP gateways, PROFINET adapters such as the RPBA-01, and Modbus RTU communication modules, can accurately reflect drive health and operational parameters in real time.

Compatibility & Integration Notes

Connected Automation Data Flow

Understanding the SDCS-PIN-H01’s role requires tracing the full data flow of a DCS Series drive system. At the field level, current transformers and voltage sensors feed raw analog signals into the SDCS-PIN-H01, which conditions and scales these signals before passing them to the SDCS-CON-H1 control board. The control board processes this data and executes closed-loop speed and torque regulation, while simultaneously making drive status available to higher-level systems.

When a PROFIBUS-DP fieldbus adapter — such as the ABB RDCO-03 or RPBA-01 PROFINET adapter — is mounted on the drive’s option slot, the SDCS-CON-H1 can transmit real-time speed references, actual current values, fault codes, and operational status words directly to a Siemens S7-300/S7-400 PLC or an Allen-Bradley ControlLogix controller acting as the PROFIBUS master. This data is then aggregated by a SCADA platform — such as Wonderware InTouch, Ignition by Inductive Automation, or ABB’s own System 800xA — where operators can monitor drive performance across an entire production line from a centralized HMI panel.

In more complex architectures, the drive data path extends further. An edge gateway device — for example, an HMS Anybus X-gateway or a Moxa MGate MB3000 series Modbus-to-Ethernet gateway — can bridge the DCS Series drive’s serial communication output to an Industrial Ethernet backbone running EtherNet/IP or PROFINET. This enables the drive’s operational data to be consumed by MES (Manufacturing Execution Systems) and ERP platforms, completing the data chain from motor shaft to enterprise dashboard. Remote I/O modules, such as the ABB CI854 or Wago 750-352 PROFIBUS coupler, can be deployed alongside the drive to extend digital and analog I/O capacity without adding complexity to the core drive wiring.

For applications involving variable-speed pumps, compressors, or winding tension control, the SDCS-PIN-H01’s accurate current feedback is essential for maintaining process stability. When paired with an ABB ACS880 multidrive system or a DCS800 regenerative drive, the power interface board ensures that torque ripple data and field weakening transitions are captured with the precision required for closed-loop process control. Frequency inverters and servo drives operating in adjacent axes can receive synchronized speed references via the drive-to-drive communication link, reducing inter-axis latency and improving overall system throughput.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in legacy industrial environments is protocol fragmentation. A typical brownfield plant may have DCS Series DC drives communicating over Modbus RTU, newer AC drives using PROFINET, and legacy PLCs relying on DeviceNet — creating data silos that prevent unified monitoring and control. The SDCS-PIN-H01, as the power signal foundation of the DCS Series drive, is the starting point for resolving this fragmentation.

By ensuring that the SDCS-CON-H1 receives clean, accurately conditioned power feedback, the SDCS-PIN-H01 enables the drive to report consistent, trustworthy data to any fieldbus adapter installed on the system. This means that regardless of whether the plant’s SCADA system communicates via PROFIBUS-DP, PROFINET, or Modbus TCP, the drive data originating from the SDCS-PIN-H01’s signal chain is reliable and actionable. Operators gain full production line transparency — real-time current draw, motor speed, fault history, and energy consumption — without requiring costly rewiring or drive replacement.

Remote diagnostics capability is another key benefit. With the drive’s data accessible via the plant’s Industrial Ethernet network, maintenance engineers can perform remote fault analysis, review historical alarm logs, and initiate parameter adjustments from a central control room or even a mobile device connected to the plant’s secure VPN. This reduces unplanned downtime, accelerates fault resolution, and supports predictive maintenance strategies that are central to Industry 4.0 initiatives.

System scalability is equally important. As production capacity grows, additional DCS Series drives equipped with SDCS-PIN-H01 boards can be added to the network without disrupting existing communication architecture. Each new drive node integrates into the existing PROFIBUS segment or PROFINET ring, and its data becomes immediately visible in the SCADA and MES layers. This plug-and-expand capability makes the SDCS-PIN-H01-based drive system a long-term investment for facilities planning phased automation upgrades.

Every SDCS-PIN-H01 3ADT318800R1501 unit supplied by ZYPLC undergoes pre-shipment functional testing, including signal conditioning verification, insulation resistance checks, and communication interface validation. Units are shipped with full warranty terms confirmed during quotation coverage, ensuring that your production continuity is protected from the moment of installation.

Industrial Connectivity FAQ

Q1: What communication protocols does the ABB SDCS-PIN-H01 support in a SCADA-integrated drive system?
The SDCS-PIN-H01 itself is an analog power interface board and does not directly implement a fieldbus protocol. However, when installed in a DCS550 or DCS800 drive alongside a PROFIBUS-DP adapter (e.g., RDCO-03) or a PROFINET adapter (e.g., RPBA-01), the drive system becomes fully capable of communicating over PROFIBUS-DP, PROFINET, Modbus RTU, or DeviceNet, depending on the adapter selected. The SDCS-PIN-H01 ensures that the power feedback data available to these protocols is accurate and stable.

Q2: How does the SDCS-PIN-H01 contribute to network stability in multi-drive installations?
Network instability in drive systems is often caused by inaccurate or noisy feedback signals triggering spurious fault trips or erratic speed references. The SDCS-PIN-H01’s signal conditioning circuitry filters and scales armature current and field excitation signals before they reach the SDCS-CON-H1 control board, reducing the likelihood of false fault events. This contributes directly to network stability by preventing unnecessary drive trips that would otherwise generate alarm floods in the SCADA system and disrupt coordinated multi-drive operation.

Q3: Can the SDCS-PIN-H01 be used in systems with remote monitoring and predictive maintenance requirements?
Yes. When the DCS Series drive is connected to a SCADA or MES platform via a fieldbus adapter, the real-time data conditioned by the SDCS-PIN-H01 — including armature current, field current, and fault status — is continuously available for trend analysis and predictive maintenance algorithms. Integration with platforms such as ABB Ability, Ignition SCADA, or custom OPC-UA data collectors allows maintenance teams to establish baseline performance profiles and detect anomalies before they result in unplanned downtime.

Q4: What warranty and pre-shipment testing does ZYPLC provide for the SDCS-PIN-H01 3ADT318800R1501?
All SDCS-PIN-H01 3ADT318800R1501 units supplied by ZYPLC are covered by a warranty terms confirmed during quotation from the date of shipment. Prior to dispatch, each unit undergoes functional verification including signal path continuity testing, insulation resistance measurement, and visual inspection for component integrity. Units are packaged in anti-static protective materials to prevent ESD damage during transit. Availability is confirmed via RFQ for same-week shipment to support urgent production requirements.
