ABB SDCS-PIN-H41 3ADT320600R1501 Industrial Network Interface for DCS800 Systems

ABB SDCS-PIN-H41 3ADT320600R1501: Industrial Data Link for DCS800 Drive Systems

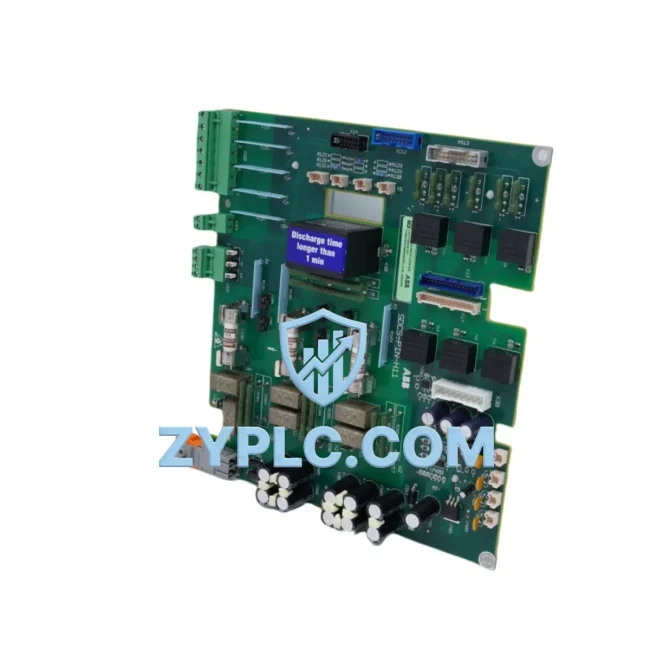

The ABB SDCS-PIN-H41 (3ADT320600R1501) is a precision transformer board engineered for the ABB DCS800 series DC drive platform. In modern smart factory environments, the integrity of the power interface layer is as critical as the communication layer itself — and the SDCS-PIN-H41 sits at the heart of that interface, ensuring stable signal isolation, accurate current sensing, and reliable gate pulse transmission between the drive control board and the power conversion stage. Whether deployed in heavy-duty rolling mills, paper machine drives, crane hoisting systems, or extruder lines, this board underpins the real-time data fidelity that SCADA systems and HMI platforms depend on for closed-loop control.

Network Communication Table

Connected Automation Data Flow

In a fully integrated DCS800 drive system, the SDCS-PIN-H41 transformer board operates as the silent backbone of the power-signal interface chain. The data flow begins at the field level: process sensors — including speed encoders, temperature transducers, and current feedback devices — feed real-time signals into the ABB SDCS-CON-4 control board, which is the primary intelligence unit of the DCS800 drive. The SDCS-PIN-H41 provides the isolated transformer coupling that allows the SDCS-CON-4 to safely transmit gate firing pulses to the thyristor power bridge without ground loop interference or signal degradation.

Upstream, the DCS800 drive communicates with plant-level systems via the ABB SDCS-COM-8 fieldbus adapter, which supports PROFIBUS-DP connectivity to Siemens S7-300/S7-400 PLCs or ABB AC500 controllers. In parallel, the ABB RDCO-03 optical communication module enables high-speed fiber-optic data exchange between the drive and the plant DCS, ensuring that torque references, speed setpoints, and fault status data are transmitted with sub-millisecond latency. This data stream feeds directly into SCADA platforms — such as ABB System 800xA or Siemens WinCC — where operators monitor drive performance, energy consumption, and alarm states in real time.

For remote I/O expansion, the DCS800 system can be paired with ABB CI854A PROFIBUS interface modules or Siemens ET 200S distributed I/O stations, extending the control network to field junction boxes and motor control centers. HMI panels — such as the ABB CP600 series or Siemens TP1200 Comfort — display live drive parameters, including armature current, field current, motor speed, and DC bus voltage, all of which depend on the accurate signal isolation provided by the SDCS-PIN-H41. In winder and unwinder applications, the board’s stable transformer coupling is essential for maintaining tension control loops that respond to real-time dancer roll feedback.

Edge gateway devices — such as the Moxa MGate MB3480 or HMS Anybus X-gateway — can bridge the DCS800’s PROFIBUS segment to Ethernet-based SCADA backbones, enabling cloud-level data aggregation for predictive maintenance analytics. Variable frequency drives on auxiliary systems, such as the ABB ACS880 for pump and fan loads, share the same PROFIBUS or PROFINET segment, creating a unified drive network where the DCS800 and its SDCS-PIN-H41 board serve as the high-power DC axis within a mixed AC/DC drive architecture.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in legacy DC drive installations is data isolation — the inability of older drive hardware to participate in modern fieldbus or Ethernet-based control networks. The ABB DCS800 platform, equipped with a properly functioning SDCS-PIN-H41 transformer board, directly addresses this challenge by maintaining the hardware integrity that allows the drive’s communication modules to operate reliably.

When the SDCS-PIN-H41 fails or degrades, the consequences cascade through the entire data chain: gate pulse timing errors cause thyristor misfires, armature current feedback becomes unreliable, and the SDCS-CON-4 control board loses the signal quality it needs to maintain closed-loop speed and torque control. This manifests as erratic drive behavior, nuisance fault trips (F501, F502, F503 overcurrent faults), and ultimately production downtime. Replacing the SDCS-PIN-H41 with a tested, verified unit restores the signal integrity that the entire data flow depends on.

For sites transitioning from isolated drive control to fully networked SCADA architectures, the DCS800 with a healthy SDCS-PIN-H41 board provides the stable hardware foundation needed to add PROFIBUS or Modbus communication modules without signal interference. This enables production line transparency — operators gain visibility into motor load trends, energy consumption per production cycle, and predictive fault indicators — without requiring a full drive replacement. The result is a cost-effective path to Industry 4.0 connectivity that preserves the investment in existing DC motor infrastructure.

System expansion is equally straightforward: additional DCS800 drives can be networked into the same PROFIBUS segment, with each drive’s SDCS-PIN-H41 board ensuring that its local power interface does not introduce noise into the shared communication bus. This architecture supports multi-drive coordination for applications such as tandem rolling mills, multi-section paper machines, and synchronized winder/unwinder systems.

Industrial Connectivity FAQ

Q1: Does replacing the SDCS-PIN-H41 affect the DCS800’s fieldbus communication latency?
No. The SDCS-PIN-H41 is a power interface and signal isolation board, not a communication processor. Its replacement restores gate pulse integrity and current feedback accuracy without altering the fieldbus cycle time of the SDCS-COM-8 or RDCO-03 communication modules. PROFIBUS-DP cycle times of 1–10 ms are maintained by the drive’s communication adapter independently of the transformer board.

Q2: Is the SDCS-PIN-H41 (3ADT320600R1501) compatible with all DCS800 drive ratings?
The SDCS-PIN-H41 / 3ADT320600R1501 is designed for specific DCS800 drive frame sizes. Compatibility depends on the drive’s current rating and frame type. ZYPLC’s technical team verifies compatibility against your drive’s nameplate data and serial number before shipment. Contact us at plc.sales@zyplc.com with your drive’s full type code for confirmation.

Q3: How is the SDCS-PIN-H41 tested before shipment?
Every SDCS-PIN-H41 unit supplied by ZYPLC undergoes functional verification including transformer winding continuity, insulation resistance testing, and visual inspection for component-level damage. Units are tested against ABB’s original board specifications to confirm signal isolation performance. A 12-month warranty is provided on all units, covering defects in materials and workmanship under normal operating conditions.

Q4: Can the DCS800 system be expanded to support PROFINET or EtherNet/IP after installing a replacement SDCS-PIN-H41?
Yes. The SDCS-PIN-H41 restores the drive’s hardware integrity, which is a prerequisite for stable fieldbus operation. Once the board is replaced and the drive is operating correctly, PROFINET or EtherNet/IP connectivity can be added via compatible ABB fieldbus adapter modules (such as the FPBA-01 for PROFIBUS or FENA-21 for EtherNet/IP), enabling full integration with modern SCADA and MES platforms without replacing the drive itself.
