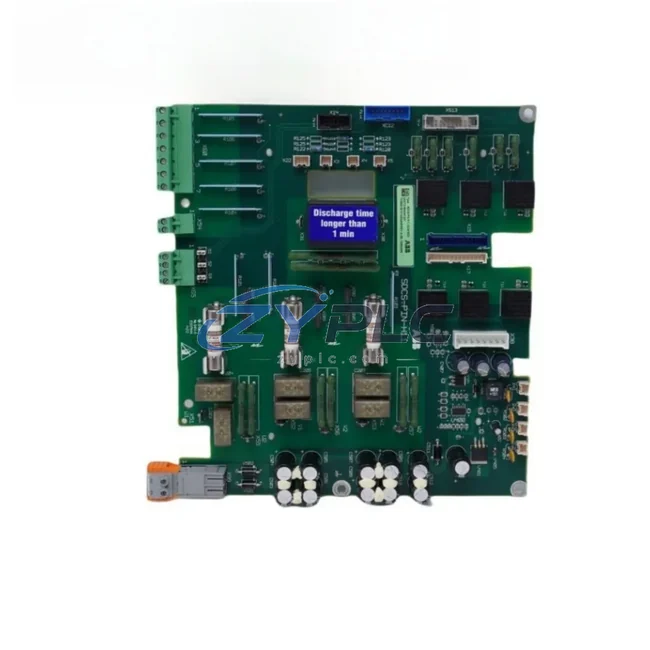

ABB SDCS-PIN-H41 COATED 3ADT320600R1501: Industrial Data Link for DCS500 Drive Systems
The ABB SDCS-PIN-H41 COATED (Part No. 3ADT320600R1501) is a precision transformer board engineered for the ABB DCS500 series DC drive platform. In modern smart factory environments, the integrity of power signal isolation and data communication between field devices and upper-level control systems is paramount. This transformer board serves as a critical node in the industrial data chain — ensuring clean, isolated signal transmission between the drive’s control electronics and the power conversion stage, enabling stable, real-time communication across the entire automation network.
From signal acquisition at the motor shaft encoder, through protocol conversion in the drive’s SDCS-CON-4 control board, across the PROFIBUS-DP or Modbus RTU fieldbus backbone, and up to the SCADA supervisory layer or DCS distributed control system, every link in the chain depends on reliable hardware. The SDCS-PIN-H41 COATED board provides the galvanic isolation and signal conditioning that underpins this entire data flow, protecting sensitive control logic from power-stage interference and ensuring measurement accuracy for current feedback loops critical to closed-loop DC motor control.
Compatibility & Integration Notes
| Parameter |
Specification |
| Part Number |
SDCS-PIN-H41 COATED / 3ADT320600R1501 |
| Compatible Platform |
ABB DCS500 Series DC Drives |
| Board Function |
Transformer / Signal Isolation Board |
| Communication Role |
Power-stage to control-stage signal interface |
| Protocol Compatibility |
PROFIBUS-DP, Modbus RTU (via DCS500 control board) |
| Interface Type |
Internal drive board — integrates with SDCS-CON-4 control board |
| Network Compatibility |
Compatible with ABB DriveWindow, SCADA, DCS, PLC upper systems |
| Coating |
Conformal coated for harsh industrial environments |
| System Application |
DC motor drives, rolling mills, paper machines, cranes, extruders |
| Origin |
Germany |
| Warranty |
warranty terms confirmed during quotation — tested and verified before shipment |
Connected Automation Data Flow
In a fully integrated smart factory, the ABB SDCS-PIN-H41 COATED operates at the heart of the DCS500 drive’s internal signal architecture. The data flow begins at the field level: speed and current sensors feed analog signals into the drive, where the SDCS-CON-4 control board processes closed-loop feedback. The SDCS-PIN-H41 transformer board provides the isolated signal path between the control electronics and the power bridge, ensuring that current measurement data is transmitted without ground loop interference or common-mode noise.
This clean signal is then processed by the drive’s internal microprocessor and communicated upstream via the SDCS-COM-8 PROFIBUS-DP adapter or SDCS-COM-81 DeviceNet communication module, connecting the DCS500 drive to the plant-wide fieldbus network. From there, a Siemens S7-300 PLC or ABB AC500 PLC acting as the PROFIBUS master collects real-time drive status — output current, motor speed, fault codes, and torque reference — and forwards this data to the WinCC SCADA or ABB 800xA DCS supervisory platform for centralized monitoring and alarm management.
At the remote I/O level, ABB S800 I/O modules gather additional process signals — temperature, pressure, and position — and relay them through the same PROFIBUS backbone. An IndraDrive or Sinamics G120 variable frequency drive on an adjacent conveyor axis communicates in parallel, with all drive data aggregated at an industrial edge gateway running OPC-UA for cloud connectivity. The ABB Panel 800 HMI at the operator station displays real-time drive parameters, trend curves, and alarm histories, giving operators full visibility into the DCS500’s operational state. The SDCS-PIN-H41 COATED board is the foundational hardware that makes this entire data chain possible — without reliable signal isolation at the drive level, the accuracy and stability of every upstream data point is compromised.
Solving Data Isolation in Industrial Sites
One of the most persistent challenges in legacy industrial facilities is the coexistence of multiple communication protocols and drive generations on the same production floor. Older DC drive systems running on proprietary serial protocols struggle to integrate with modern PROFIBUS-DP or Ethernet/IP networks, creating data silos that prevent plant-wide transparency. The ABB DCS500 platform, equipped with the SDCS-PIN-H41 COATED transformer board and the appropriate communication adapter, bridges this gap — enabling legacy DC drive data to flow seamlessly into modern SCADA and MES systems.
Remote monitoring is another critical requirement in today’s industrial environment. Maintenance teams need to diagnose drive faults, monitor insulation resistance trends, and track motor load profiles without being physically present at the drive cabinet. The SDCS-PIN-H41’s role in maintaining signal integrity means that remote diagnostic data — accessed via ABB DriveWindow software or the plant’s DCS historian — accurately reflects actual drive conditions, enabling predictive maintenance decisions and reducing unplanned downtime.
Production line transparency is further enhanced by the drive’s ability to report real-time energy consumption, torque output, and fault event logs to the upper control system. With the SDCS-PIN-H41 COATED board ensuring clean signal transmission, engineers can confidently expand the DCS500 network — adding additional drive axes, integrating new sensor nodes, or upgrading the SCADA platform — without compromising the accuracy of existing measurement loops. System scalability is built into the DCS500 architecture, and the SDCS-PIN-H41 is a key enabler of that expandability.
Industrial Connectivity FAQ
Q1: Does the SDCS-PIN-H41 COATED support PROFIBUS-DP communication?
The SDCS-PIN-H41 is an internal transformer and signal isolation board within the DCS500 drive. PROFIBUS-DP communication is handled by the SDCS-COM-8 or SDCS-COM-81 adapter boards. The SDCS-PIN-H41 ensures the signal integrity of the drive’s internal data, which is a prerequisite for reliable fieldbus communication. All boards are tested for protocol compatibility before shipment.
Q2: Is the SDCS-PIN-H41 COATED compatible with all DCS500 drive variants?
The SDCS-PIN-H41 COATED (3ADT320600R1501) is designed for the ABB DCS500 series DC drive platform. Compatibility with specific drive ratings and hardware revisions should be confirmed against the DCS500 hardware manual or by contacting our technical team. We maintain availability subject to RFQ confirmation and can cross-reference your drive’s serial number before shipment.
Q3: What does the conformal coating provide in terms of network stability?
The conformal coating protects the board’s circuitry from moisture, dust, chemical vapors, and temperature cycling — common in heavy industrial environments such as steel mills, paper plants, and chemical processing facilities. This protection directly contributes to long-term network stability by preventing corrosion-induced signal degradation, which can cause intermittent communication faults and false alarms in SCADA systems.
Q4: What warranty and testing standards apply to this board?
All SDCS-PIN-H41 COATED boards supplied by ZYPLC carry a warranty terms confirmed during quotation and are functionally tested prior to dispatch. Testing covers signal isolation performance, transformer output levels, and board-level continuity checks consistent with ABB DCS500 drive commissioning standards. Availability is confirmed via RFQ for shipment arranged after confirmation, supporting urgent maintenance and production recovery requirements.
