ABB SDCS-POW-4-SD Industrial Network Interface for DCS800 Systems

ABB SDCS-POW-4-SD Industrial Network Interface for DCS800 Systems: Powering the Industrial Data Link in Smart Factory Environments

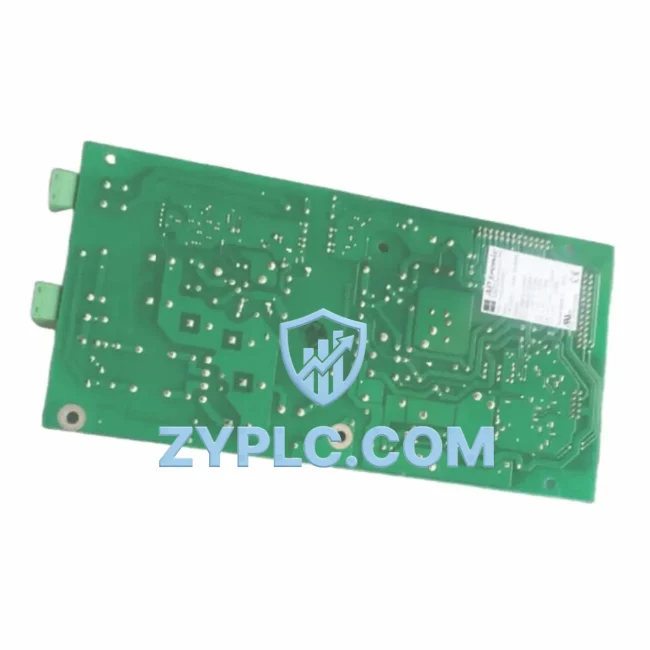

The ABB SDCS-POW-4-SD is a precision-engineered DC power supply board designed for the ABB DCS800 series of DC drives, serving as a foundational power and signal management component within industrial automation networks. In modern smart factory deployments, the integrity of the power supply layer directly determines the reliability of the entire data chain — from field-level sensors and actuators through to PLC controllers, remote I/O modules, HMI panels, SCADA systems, and enterprise-level MES platforms. The SDCS-POW-4-SD ensures that the DCS800 drive operates with stable, conditioned power, enabling uninterrupted communication across all connected automation layers.

In a typical industrial network architecture, the DCS800 DC drive interfaces with upstream control systems via PROFIBUS-DP, Modbus RTU, or DeviceNet communication adapters — such as the ABB RDCO-03 or RPBA-01 fieldbus modules — which plug directly into the drive’s option slots. The SDCS-POW-4-SD supports this communication ecosystem by maintaining the internal power rails that sustain the drive’s control board, I/O interface, and fieldbus adapter circuitry. Any instability in this power supply layer can result in communication timeouts, drive faults, or loss of real-time data visibility at the SCADA level.

From signal acquisition at the motor shaft encoder or process sensor, through protocol conversion at the drive’s fieldbus gateway, across the industrial Ethernet backbone to the SCADA server or DCS workstation — every node in this data flow depends on stable, noise-free power. The SDCS-POW-4-SD is the component that anchors this stability within the DCS800 platform.

Network Communication Table

Connected Automation Data Flow

Understanding the SDCS-POW-4-SD requires placing it within the broader context of the DCS800 drive’s role in a connected automation system. In a paper mill, steel processing line, or winding machine application, the DCS800 DC drive receives speed and torque references from a Siemens S7-300 or Allen-Bradley ControlLogix PLC via a PROFIBUS-DP network. The fieldbus communication is handled by an ABB RPBA-01 PROFIBUS adapter mounted in the drive’s option slot. The SDCS-POW-4-SD powers the internal control board — the SDCS-CON-4 — which processes these references and generates the firing pulses for the thyristor power bridge.

Simultaneously, the drive’s analog and digital I/O — managed through the SDCS-IOB-3 I/O extension board — feeds real-time process data back to the PLC and, via an OPC-UA gateway or SCADA data concentrator, to the plant’s Wonderware or Ignition SCADA platform. Operators at the HMI panel — typically a Siemens TP1200 or ABB CP600 — can monitor drive speed, armature current, field current, and fault status in real time. The SDCS-PIN-48 power interface board works in conjunction with the SDCS-POW-4-SD to manage the AC input and DC output power stages, ensuring that the control electronics remain isolated from high-voltage transients on the power bus.

In multi-drive systems, the DCS800 units are often networked together via an ABB DDCS fiber optic link or a Modbus RTU master-slave topology, with a master drive or PLC coordinating speed references across multiple axes. The SDCS-POW-4-SD’s role in maintaining stable internal power is critical in these synchronized multi-drive configurations, where a single drive fault can cascade into a production line stoppage. Remote diagnostic access is typically provided via an ABB Panel Bus or through the drive’s serial diagnostic port connected to a Moxa NPort industrial serial device server, enabling remote engineers to read drive parameters and fault logs without physical site access.

Edge computing nodes — such as an ABB Edge Controller or a Siemens SIMATIC IPC — can aggregate drive data from multiple DCS800 units and push it to cloud-based analytics platforms for predictive maintenance analysis, further extending the data chain that the SDCS-POW-4-SD helps sustain at its foundation.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in legacy industrial environments is data isolation — where drives, PLCs, sensors, and HMI systems operate on incompatible protocols or aging hardware that cannot be integrated into modern SCADA or MES platforms. The ABB DCS800 series, supported by components like the SDCS-POW-4-SD, addresses this challenge through its modular fieldbus adapter architecture. By replacing a failed or degraded power supply board with a genuine SDCS-POW-4-SD, maintenance teams restore the drive’s ability to participate in the plant’s communication network — eliminating the data gap that a faulted or offline drive creates in the production monitoring system.

Protocol unification is achieved through the DCS800’s support for multiple fieldbus adapters, allowing the same drive hardware to communicate over PROFIBUS-DP in one plant and Modbus TCP in another, simply by swapping the communication option module. This flexibility, underpinned by reliable internal power management from the SDCS-POW-4-SD, means that plant engineers can standardize on the DCS800 platform across diverse network architectures without sacrificing connectivity.

For remote monitoring and transparent production line visibility, the DCS800’s real-time data output — enabled by stable operation of the SDCS-POW-4-SD — feeds into SCADA dashboards that display KPIs such as drive efficiency, energy consumption, and fault frequency. This data transparency supports proactive maintenance scheduling, reduces unplanned downtime, and provides the audit trail required for ISO 50001 energy management compliance. System expansion is straightforward: additional DCS800 drives can be added to the network by connecting them to the existing fieldbus segment, with each drive’s SDCS-POW-4-SD ensuring that the new node communicates reliably from day one.

Industrial Connectivity FAQ

Q1: Does the SDCS-POW-4-SD support direct fieldbus communication?
The SDCS-POW-4-SD is an internal power supply board, not a fieldbus interface. Fieldbus communication for the DCS800 is handled by optional adapter modules such as the RPBA-01 (PROFIBUS-DP), RMBA-01 (Modbus RTU), or RCAN-01 (CANopen), which are powered and supported by the stable internal supply that the SDCS-POW-4-SD provides.

Q2: How does a faulty SDCS-POW-4-SD affect network communication and SCADA visibility?
A degraded or failed SDCS-POW-4-SD can cause the DCS800 drive to generate internal power faults, leading to communication dropouts on the fieldbus network. This results in the drive appearing offline in the SCADA system, loss of real-time process data, and potential production line alarms. Replacing the board with a tested SDCS-POW-4-SD restores full network participation and data visibility.

Q3: Is the SDCS-POW-4-SD tested before shipment, and what warranty is provided?
Yes. Every SDCS-POW-4-SD unit supplied by ZYPLC undergoes functional testing prior to shipment to verify power output stability and board integrity. All units are covered by a 12-month warranty from the date of delivery, with technical support available for installation and commissioning queries.

Q4: Can the SDCS-POW-4-SD be used in systems with extended network architectures or multi-drive configurations?
Yes. The SDCS-POW-4-SD is fully compatible with DCS800 drives deployed in multi-drive DDCS fiber optic networks, Modbus RTU master-slave topologies, and PROFIBUS-DP segments with multiple drive nodes. Its role in maintaining stable internal power is especially critical in synchronized multi-drive systems where communication reliability across all nodes is essential for coordinated motion control.
