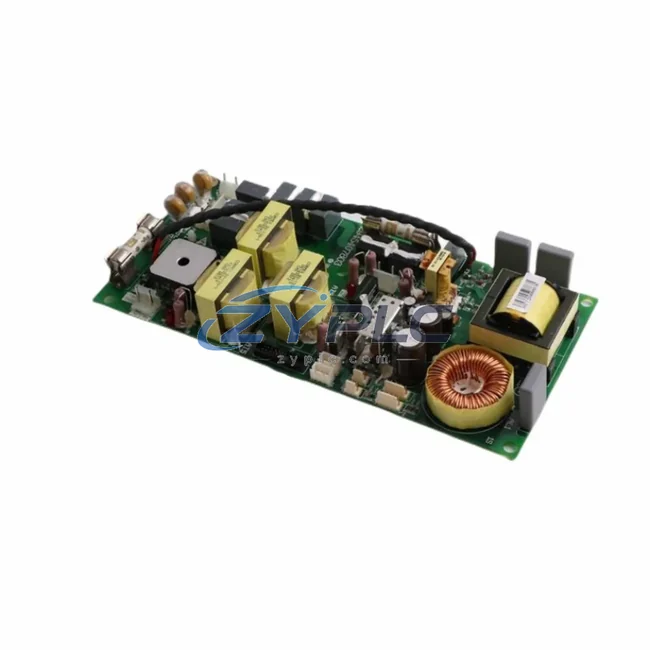

The ABB SK-U1-PS1-H1 is a precision-engineered internal power supply board designed for ABB ACS series variable frequency drives. As a core maintenance planning component within the drive’s control architecture, it regulates and distributes stable DC power to the gate driver circuits, control logic boards, and I/O interface modules — directly influencing how efficiently the drive converts and delivers power to connected motors. In modern industrial environments where energy accountability is non-negotiable, the SK-U1-PS1-H1 plays a foundational role in sustaining drive uptime, reducing reactive power losses, and enabling consistent motor control performance across demanding production cycles.

Product Specification Table

System Compatibility and Application

In a fully optimized industrial drive system, the ABB SK-U1-PS1-H1 power supply board operates as the internal energy backbone of the ACS drive’s control unit. When paired with the ABB ACS880 main drive unit, it ensures that the IGBT gate driver board — such as the ABB RINT-5514C — receives clean, regulated voltage, which is critical for precise PWM switching and low harmonic distortion. Any instability in the internal power supply directly degrades switching accuracy, increasing motor heat and unplanned downtime.

On the control side, the SK-U1-PS1-H1 powers the ABB RMIO-11C control board, which handles speed reference processing, PID loop execution, and fieldbus communication. When the control board operates on a stable power rail, the drive’s response to load changes is faster and more accurate — reducing overshoot, minimizing unnecessary motor acceleration cycles, and cutting operating load during transient states. This is especially impactful in applications using the ABB RDCO-03C DDCS communication board for real-time data exchange between the drive and a supervisory PLC such as the ABB AC500 series.

For condition monitoring integration, the SK-U1-PS1-H1-equipped ACS drive can interface with ABB B23 series energy meters or third-party power analyzers via Modbus RTU, enabling granular per-drive operating load tracking. When combined with an ABB CP600 HMI panel, operators gain real-time visibility into drive efficiency metrics, load curves, and fault history — all of which support data-driven decisions for energy reduction. In multi-drive installations, the ABB ACS-AP-I control panel provides local parameter access and energy readout without requiring a full SCADA connection.

On the I/O layer, the drive’s digital and analog I/O modules — including the ABB RAIO-01 analog I/O extension — rely on the stable power supply delivered by the SK-U1-PS1-H1 to maintain accurate sensor signal processing. Inaccurate I/O readings caused by power rail noise can lead to false speed corrections, unnecessary motor cycling, and elevated operating load. A healthy power supply board eliminates this source of inefficiency at the hardware level.

In distributed drive architectures using ABB DriveAP application programming or external PLCs communicating over PROFIBUS-DP, the SK-U1-PS1-H1 ensures that the drive’s communication interface remains continuously powered and responsive — preventing communication timeouts that would otherwise trigger drive faults, emergency stops, and costly production restarts.

Maintenance and Replacement Notes

In high-throughput manufacturing environments, unplanned drive downtime caused by internal power supply failure is one of the most disruptive and energy-wasteful events on the production floor. When a drive trips due to a degraded or failed power supply board, the entire motor-driven process — whether a conveyor, pump, compressor, or extruder — must be restarted from zero. Each cold restart consumes significantly more energy than steady-state operation, and in processes with long thermal ramp-up times, the energy penalty compounds quickly.

By maintaining a verified spare ABB SK-U1-PS1-H1 in inventory, maintenance teams can execute board-level replacements in under 30 minutes, restoring drive operation without waiting for full drive replacement lead times that can stretch to weeks. This approach — known as component-level repair strategy — directly reduces mean time to repair (MTTR), improves overall equipment effectiveness (OEE), and avoids the energy overhead of extended production gaps.

From a predictive maintenance perspective, monitoring drive internal temperature, DC bus voltage stability, and control board fault logs can provide early warning of power supply board degradation. When the SK-U1-PS1-H1 begins to fail, symptoms typically include intermittent control board resets, erratic speed reference behavior, and unexplained drive undervoltage faults — all of which increase motor cycling frequency and unplanned downtime before a full fault occurs. Proactive replacement based on these indicators, rather than reactive replacement after failure, is the most energy-efficient maintenance posture.

In pump and fan applications — which represent the largest share of industrial motor load globally — even a 2–3% improvement in drive control stability translates to measurable kWh savings over a full operating year. The SK-U1-PS1-H1 contributes to this stability by ensuring that the ACS drive’s internal control architecture operates within its designed power envelope at all times, supporting the drive’s built-in maintenance planning algorithms such as flux optimization and sleep mode activation during low-load periods.

All units supplied by ZYPLC are functionally tested prior to shipment, with output voltage rails verified under load conditions. Stock is maintained for fast dispatch, supporting urgent maintenance scenarios where production continuity depends on rapid component availability.

Product Sourcing FAQ

Q1: How does replacing a degraded SK-U1-PS1-H1 reduce operating load?
A degraded power supply board introduces voltage ripple and instability into the drive’s control circuits, causing the IGBT gate drivers to switch imprecisely. This increases harmonic distortion, motor heating, and reactive power draw. Replacing the board restores clean power delivery, allowing the drive to operate at its rated efficiency and reducing unnecessary energy losses in the motor and drive system.

Q2: Which ABB ACS drive models is the SK-U1-PS1-H1 compatible with?
The SK-U1-PS1-H1 is primarily associated with the ABB ACS series drives, including variants of the ACS550, ACS580, ACS800, and ACS880 platforms. Compatibility depends on the specific drive frame size and hardware revision. We recommend verifying the part number against your drive’s service manual or contacting our technical team with your drive nameplate data before ordering.

Q3: What is the pre-shipment testing process for this board?
Each SK-U1-PS1-H1 unit undergoes functional verification prior to dispatch. Testing includes DC output voltage measurement across all power rails, load stability checks, and visual inspection for component-level defects. Units that do not meet specification thresholds are quarantined and not shipped. This process ensures that the board you receive is operationally ready for immediate installation.

Q4: What does the warranty terms confirmed during quotation cover, and how is a claim processed?
The warranty terms confirmed during quotation covers functional failure of the SK-U1-PS1-H1 under normal operating conditions. It does not cover damage resulting from incorrect installation, overvoltage events, or physical mishandling. To initiate a warranty claim, contact our support team with your order reference and a description of the fault. We will arrange for inspection and, where applicable, replacement or repair at no additional cost within the warranty period.
