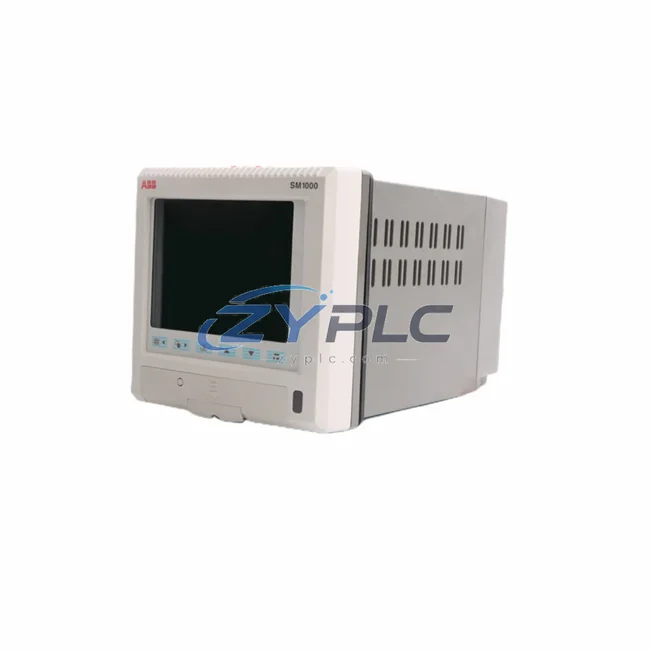

The ABB SM1006S/B12/0000/32/STD is a system-compatible videographic chart recorder engineered for seamless system integration within the ABB SM1006S distributed control architecture. Rather than functioning as a standalone instrument, this recorder is designed to occupy a defined role within a layered automation hierarchy — bridging the gap between field-level signal acquisition and supervisory data visualization. In modern industrial control environments, where process continuity, audit traceability, and regulatory compliance are non-negotiable, the SM1006S/B12/0000/32/STD delivers the recording fidelity and communication stability that system architects demand.

With 12 configurable input channels (B12 designation), universal signal compatibility, and a 32 MB onboard storage capacity in standard configuration (STD), this unit is purpose-built for integration into multi-loop control systems where data integrity across the full signal chain — from transmitter to historian — must be maintained without interruption. Its architecture-aware design ensures that it can be deployed alongside ABB’s broader SM1006S ecosystem components, including companion recorders, I/O expansion modules, and communication gateways, without requiring custom engineering workarounds.

Product Specification Table

System Compatibility Notes

The SM1006S/B12/0000/32/STD achieves its full operational value when deployed as part of a coordinated control system rather than in isolation. In a typical SM1006S-based architecture, this recorder sits at the data acquisition and visualization layer, receiving analog and digital signals from field instruments and transmitting processed data upward to supervisory systems via Modbus RTU or Modbus TCP.

At the controller layer, the SM1006S/B12/0000/32/STD is commonly paired with ABB AC500 series PLCs or ABB Symphony Plus DCS controllers, which handle closed-loop control logic while the recorder manages continuous trend logging and alarm event capture. The recorder’s RS-485 Modbus interface allows it to be polled directly by the PLC’s communication module — such as the ABB AC500 CM572-DP PROFIBUS master or the CM589-PNIO PROFINET adapter — enabling real-time data exchange without dedicated historian middleware.

At the I/O layer, field signals are typically conditioned through ABB IOEX I/O expansion modules or third-party signal conditioners before reaching the recorder’s universal input terminals. For installations requiring high-density analog input aggregation, the SM1006S/B12/0000/32/STD can be deployed alongside ABB AI523 analog input modules within the same control cabinet, ensuring consistent signal scaling and reference grounding across the measurement chain.

Power architecture is a critical consideration in any panel-mounted recorder deployment. The SM1006S/B12/0000/32/STD’s wide-range universal power input (85–264 V AC) allows it to share a common 24 V DC bus with ABB CP-E 24/5.0 or CP-E 24/10.0 SMPS power supplies, which also feed the PLC CPU, communication modules, and HMI terminals. This shared power topology simplifies cabinet design and reduces the number of discrete power rails required.

For human-machine interface integration, the recorder’s trend data and alarm logs can be mirrored to ABB CP600 series HMI panels or third-party SCADA systems via OPC DA/UA bridges, providing operators with a unified process view that spans both real-time control and historical trend analysis. In redundant architectures, a secondary SM1006S recorder — such as the SM1006S/B06/0000/32/STD (6-channel variant) — can be configured in parallel to provide hot-standby recording capability, ensuring no data loss during primary unit maintenance windows.

Terminal connectivity within the control cabinet is typically managed through Phoenix Contact or Weidmüller DIN-rail terminal blocks, which provide the necessary isolation and labeling infrastructure for the recorder’s multi-channel wiring. For installations in hazardous areas or where signal isolation is mandatory, ABB MACX analog signal conditioners or galvanic isolators are inserted between field transmitters and the recorder’s input terminals, preserving measurement accuracy and protecting the recorder’s input circuitry from ground loops and transient surges.

Industrial Application Notes

The SM1006S/B12/0000/32/STD is deployed across a wide range of process industries where continuous multi-channel recording, regulatory data retention, and system-level integration are mandatory requirements.

In power generation and electrical utilities, this recorder is used to log turbine exhaust temperatures, generator winding temperatures, and transformer oil temperatures across 12 simultaneous channels, providing the continuous audit trail required by grid operators and regulatory bodies. Its IP65 front panel protection ensures reliable operation in switchgear rooms and substation control panels where dust and humidity are persistent concerns.

In petrochemical and refinery applications, the SM1006S/B12/0000/32/STD is integrated into distillation column control loops, where it records column tray temperatures, reflux flow rates, and pressure differential signals in real time. The recorder’s Modbus TCP interface allows refinery DCS systems to retrieve historical trend data on demand, supporting process optimization and incident investigation workflows.

In water and wastewater treatment, the recorder monitors pH, dissolved oxygen, turbidity, and flow rate signals across multiple treatment stages simultaneously. Its wide operating temperature range and universal power input make it suitable for outdoor pump station panels and indoor SCADA-connected control rooms alike.

In metallurgical and mining operations, the SM1006S/B12/0000/32/STD records furnace temperature profiles, conveyor motor current signatures, and hydraulic pressure trends, providing maintenance engineers with the long-term data sets needed for predictive maintenance scheduling and equipment life-cycle analysis.

In pharmaceutical and food processing environments, where 21 CFR Part 11 or equivalent data integrity standards apply, the recorder’s tamper-evident logging and configurable alarm thresholds support validation documentation and batch record requirements.

Product Compatibility FAQ

Q1: Is the SM1006S/B12/0000/32/STD compatible with existing ABB AC500 PLC architectures via Modbus?
Yes. The SM1006S/B12/0000/32/STD supports Modbus RTU over RS-485 and Modbus TCP over Ethernet (where the optional Ethernet module is fitted). ABB AC500 PLCs with CM589-PNIO or CM572-DP communication modules can be configured to poll the recorder’s Modbus register map directly, enabling seamless data exchange without third-party middleware. Standard Modbus function codes (FC03, FC04, FC06, FC16) are supported for register read/write operations.

Q2: Can this recorder be installed in a control cabinet alongside other SM1006S series components without electrical interference?
Yes, provided standard cabinet engineering practices are followed. The SM1006S/B12/0000/32/STD should be mounted with adequate clearance from high-voltage switchgear and variable frequency drives. Signal cables should be routed in separate cable ducts from power cables, and shielded twisted-pair wiring is recommended for all analog inputs. The recorder’s universal power input accepts both AC and DC supply, allowing it to share a common UPS-backed DC bus with other SM1006S components, PLCs, and HMI terminals within the same cabinet.

Q3: What warranty terms are confirmed during quotation, and how is long-term maintenance supported?
The warranty terms confirmed during quotation covers all manufacturing defects, component failures, and functional non-conformances from the date of dispatch. During the warranty period, units are repaired or replaced at no charge. Beyond the warranty period, ZYPLC supports RFQ sourcing for SM1006S series recorders and compatible accessories to support long-term maintenance and emergency replacement requirements. Firmware update support, configuration backup assistance, and application engineering consultation are available throughout the product’s operational life.
