ABB SNAT620PCB Encoder Interface for ACS600

ABB SNAT620PCB Encoder Interface for ACS600

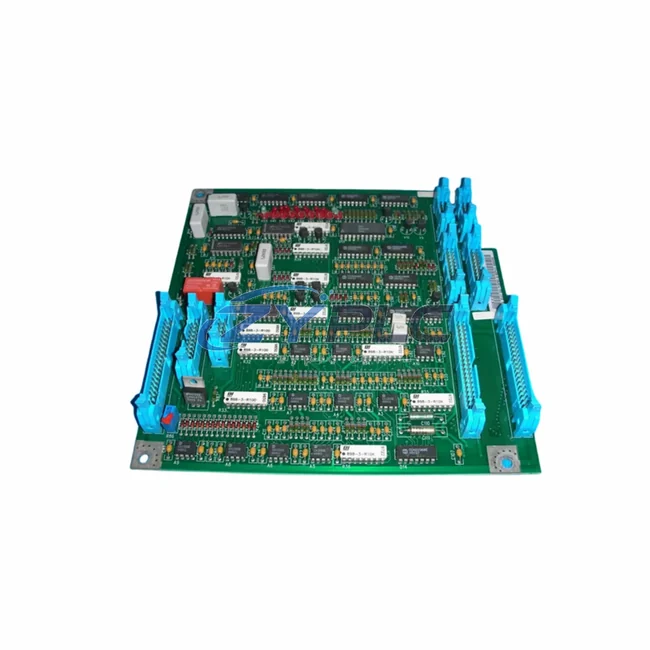

In modern industrial automation, the integrity of a drive control system depends not only on the performance of individual components but on how seamlessly each module integrates within the broader control architecture. The ABB SNAT620PCB pulse encoder interface board is engineered to fulfill a precise and critical role within the ACS600 drive platform — bridging the gap between rotary feedback devices and the drive’s closed-loop control logic. As factories evolve toward higher levels of process transparency and adaptive control, the SNAT620PCB ensures that encoder signals are captured, conditioned, and delivered to the drive’s control layer with the accuracy and reliability that demanding applications require.

The SNAT620PCB is designed as a plug-in option board for the ACS600 series of AC drives, which are widely deployed across industries including pulp and paper, metals, marine, oil and gas, and general manufacturing. Its primary function is to receive incremental pulse signals from a shaft-mounted encoder and relay precise speed and position feedback to the drive’s main control board. This closed-loop feedback capability is essential for applications where open-loop speed regulation is insufficient — such as winding machines, cranes, extruders, and high-precision conveyor systems.

Product Specification Table

System Compatibility Notes

The SNAT620PCB does not operate in isolation — it is one node in a carefully coordinated control architecture. Within the ACS600 platform, the encoder board slots into the option interface of the drive’s main control unit, working in concert with the RMIO-02C main control board, which handles the core vector control algorithms and I/O processing. The RMIO-02C reads the encoder feedback delivered by the SNAT620PCB and uses it to execute direct torque control (DTC) with closed-loop precision, enabling the drive to maintain exact speed references even under variable load conditions.

On the power side, the NPOW-42C power supply board provides the regulated internal voltages that keep the control electronics — including the SNAT620PCB — operating within specification. For multi-drive installations or cabinet-level architectures, the NDBU-95C distributed branching unit manages the DDCS fiber-optic communication network, allowing the ACS600 drives to exchange data with higher-level controllers and SCADA systems. The AINT-02C analog I/O extension board complements the encoder feedback by providing additional process variable inputs, enabling the control system to correlate speed data with pressure, temperature, or flow signals from field instruments.

At the network and supervisory level, the NINT-42 fieldbus adapter module connects the ACS600 drive to PROFIBUS-DP or other industrial networks, enabling the drive — and by extension the encoder feedback loop — to be monitored and commanded from a Siemens S7 PLC, ABB AC500 controller, or a distributed control system (DCS). The SNAT607TAB pulse tachometer board serves as a complementary feedback option in installations where analog tachometer signals are used alongside digital encoder inputs, providing redundant speed verification in safety-critical applications.

For the human-machine interface layer, ABB’s Panel Bus-connected operator panels or third-party HMI systems connected via the NINT-42 fieldbus module allow operators to visualize real-time speed, torque, and encoder pulse count data. This visibility is essential for commissioning engineers who need to verify encoder wiring polarity, pulse count per revolution, and signal integrity before enabling closed-loop control. The SNAT634PAC option board, used in parallel configurations, extends the drive’s I/O capacity to accommodate additional feedback and control signals in complex multi-axis systems.

Industrial Application Notes

The SNAT620PCB finds application across a wide range of industrial sectors where precise motor speed and position control is non-negotiable. In the metals and mining industry, ACS600 drives equipped with the SNAT620PCB control hoist motors, rolling mill drives, and conveyor systems where load variations are extreme and speed accuracy directly impacts product quality and safety. The encoder feedback loop ensures that the drive compensates for slip and mechanical compliance in real time, maintaining the commanded speed reference within tight tolerances.

In the pulp and paper industry, winder and unwinder drives rely on closed-loop encoder feedback to maintain constant web tension across varying roll diameters. The SNAT620PCB enables the ACS600 to calculate surface speed from shaft encoder data and adjust torque output accordingly, preventing web breaks and ensuring consistent product quality. Similarly, in packaging and printing lines, where registration accuracy is critical, the encoder interface board provides the positional feedback necessary for electronic line shafting and cam profile control.

Water treatment and municipal infrastructure applications benefit from the SNAT620PCB’s ability to provide accurate pump speed feedback, enabling energy-optimized variable flow control. In chemical and petrochemical plants, where process safety and regulatory compliance demand verifiable control performance, the closed-loop architecture enabled by the SNAT620PCB supports audit trails and performance documentation. Power generation facilities use ACS600 drives with encoder feedback for exciter control, cooling fan regulation, and auxiliary drive systems where speed stability directly affects grid synchronization.

Product Compatibility FAQ

Q1: Is the SNAT620PCB compatible with all ACS600 drive variants, and what encoder types are supported?
The SNAT620PCB is designed for the ACS600 series, including the ACS601, ACS604, and ACS607 variants. It supports incremental TTL and HTL encoders with differential A/B/Z channel outputs. Single-ended encoder configurations are also supported with appropriate wiring. Always verify the option slot availability on your specific ACS600 control unit before installation, as some configurations may already occupy available option slots with other boards such as the NINT-42 or AINT-02C.

Q2: How does the SNAT620PCB integrate with higher-level control systems and SCADA platforms?
The SNAT620PCB feeds encoder data directly to the ACS600’s RMIO-02C control board, which processes the feedback within the drive’s DTC algorithm. This data is then accessible to higher-level systems via the NINT-42 fieldbus adapter, which bridges the drive to PROFIBUS-DP, DeviceNet, or other industrial networks. SCADA systems connected through the DCS or PLC layer can read real-time speed, position, and diagnostic data, enabling system integration of drive performance into plant-wide monitoring and reporting frameworks.

Q3: What does the warranty terms confirmed during quotation cover, and how is pre-shipment testing conducted?
