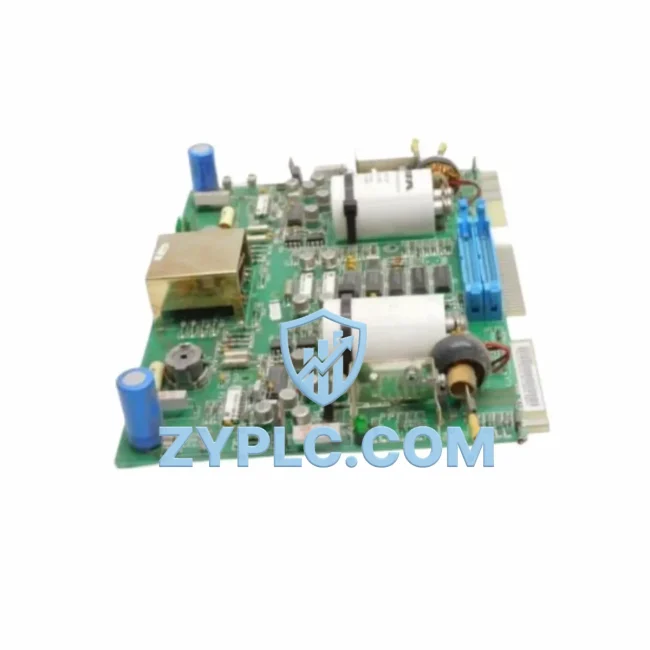

ABB SNAT630PAC Industrial Network Interface for ACS Drive Systems

ABB SNAT630PAC Industrial Network Interface for ACS Drive Systems

The ABB SNAT630PAC is a high-performance pulse amplifier and drive communication board engineered for seamless integration within ABB’s ACS series variable frequency drive platforms. Designed to bridge the gap between field-level devices and upper-level control systems, the SNAT630PAC plays a critical role in the industrial data chain — from encoder signal conditioning and pulse amplification at the motor shaft, through protocol-level communication with PLC controllers, all the way to real-time visualization on SCADA and HMI platforms. In smart factory environments where data continuity, network stability, and system transparency are non-negotiable, the SNAT630PAC delivers the connectivity backbone that modern automation demands.

Network Communication Table

Connected Automation Data Flow

In a typical smart factory deployment, the ABB SNAT630PAC sits at the heart of the drive-level communication architecture. At the field layer, incremental encoders and speed sensors feed pulse signals directly into the SNAT630PAC, which amplifies and conditions these signals before relaying them to the ACS 800 or ACS 880 drive control unit. The drive unit, in turn, communicates upstream via the RDCO-02 DDCS Communication Module — a fiber optic link that carries real-time torque, speed, and fault data to the master controller.

At the control layer, an ABB AC500 PLC or ABB Symphony Plus DCS receives structured drive data through fieldbus adapters such as the RPBA-01 PROFIBUS Adapter or the FPBA-01 PROFINET Adapter, both of which mount directly onto the ACS drive’s fieldbus slot. This architecture allows the PLC to issue speed references, torque commands, and start/stop signals while simultaneously reading back actual values, fault codes, and energy consumption metrics — all in real time.

For remote I/O expansion, ABB CI840A Remote I/O Modules extend the control network to distributed field cabinets, enabling sensor data from pressure transmitters, flow meters, and temperature probes to be aggregated and forwarded to the SCADA layer. The ABB System 800xA SCADA/DCS platform provides the supervisory visualization layer, where operators monitor drive performance, set process parameters, and acknowledge alarms from a centralized HMI workstation.

At the edge, ABB Edge Controllers or third-party industrial edge gateways collect OPC-UA data streams from the drive network and push them to cloud-based MES or ERP systems, completing the data chain from motor shaft to enterprise dashboard. Industrial Ethernet switches — such as those in the ABB Ethernet Switch ES series — provide the managed Layer 2 network backbone that ensures deterministic, low-latency communication across all nodes in the automation cell.

Variable frequency drives in adjacent production lines, including the ABB ACS580 General Purpose Drive and ACS380 Machinery Drive, can be networked in parallel using the same DDCS fiber ring topology, with each drive’s SNAT630PAC board ensuring signal integrity across the entire ring. This topology supports hot-standby redundancy and enables seamless drive replacement without disrupting the production network.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in legacy industrial environments is protocol fragmentation — where drives, PLCs, remote I/O modules, and SCADA systems each speak a different communication language, creating data silos that prevent real-time visibility and coordinated control. The ABB SNAT630PAC directly addresses this challenge by serving as the protocol-aware interface between the drive’s internal DDCS network and the plant’s broader fieldbus infrastructure.

By enabling the ACS drive series to participate in PROFIBUS, PROFINET, Modbus, and EtherNet/IP networks through compatible fieldbus adapters, the SNAT630PAC eliminates the need for external protocol converters or custom middleware. Drive data — including speed feedback, current draw, fault status, and energy metrics — flows transparently from the motor to the SCADA historian, enabling production line transparency that was previously impossible without costly system overhauls.

For remote monitoring and diagnostics, the SNAT630PAC’s integration with the DDCS fiber optic ring allows maintenance engineers to access drive fault logs, parameter sets, and real-time waveforms from a remote HMI or laptop running ABB Drive Composer, without physically accessing the drive cabinet. This capability dramatically reduces mean time to repair (MTTR) and supports predictive maintenance strategies by surfacing early warning indicators before equipment failure occurs.

System expansion is equally straightforward: additional drives equipped with SNAT630PAC boards can be added to the DDCS ring without reconfiguring the existing network, supporting phased capacity expansion in line with production growth. All units supplied by ZYPLC undergo pre-shipment functional testing and are backed by a 12-month warranty, ensuring confidence in every deployment.

Industrial Connectivity FAQ

Q1: What communication protocols does the ABB SNAT630PAC support?
The SNAT630PAC interfaces with ABB’s proprietary DDCS (Distributed Drive Control System) fiber optic network. When combined with fieldbus adapter modules such as the RPBA-01 (PROFIBUS-DP), FPBA-01 (PROFINET), or FMBA-01 (Modbus/TCP), the ACS drive system gains full compatibility with standard industrial fieldbus and Industrial Ethernet protocols, enabling integration with virtually any PLC or SCADA platform.

Q2: How does the SNAT630PAC ensure network stability in high-interference environments?
The board uses fiber optic DDCS links for all drive-to-controller communication, providing inherent immunity to electromagnetic interference (EMI) — a critical advantage in environments with large motor drives, welding equipment, or high-voltage switchgear. The fiber topology also supports ring redundancy, ensuring that a single cable fault does not interrupt the entire drive network.

Q3: Can the SNAT630PAC be integrated with existing SCADA and HMI systems?
Yes. Through compatible fieldbus adapters, the SNAT630PAC enables the ACS drive to publish real-time data — speed, torque, current, fault codes, and energy consumption — directly to SCADA historians and HMI displays via standard OPC, PROFIBUS, or PROFINET interfaces. This makes it fully compatible with ABB System 800xA, Wonderware, Ignition, and other leading SCADA platforms.

Q4: What does the 12-month warranty cover, and how is pre-shipment testing conducted?
All ABB SNAT630PAC units supplied by ZYPLC are tested for electrical continuity, signal output integrity, and communication link functionality prior to dispatch. The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions. In the event of a warranty claim, ZYPLC provides rapid replacement support with global DHL/FedEx logistics to minimize production downtime.
