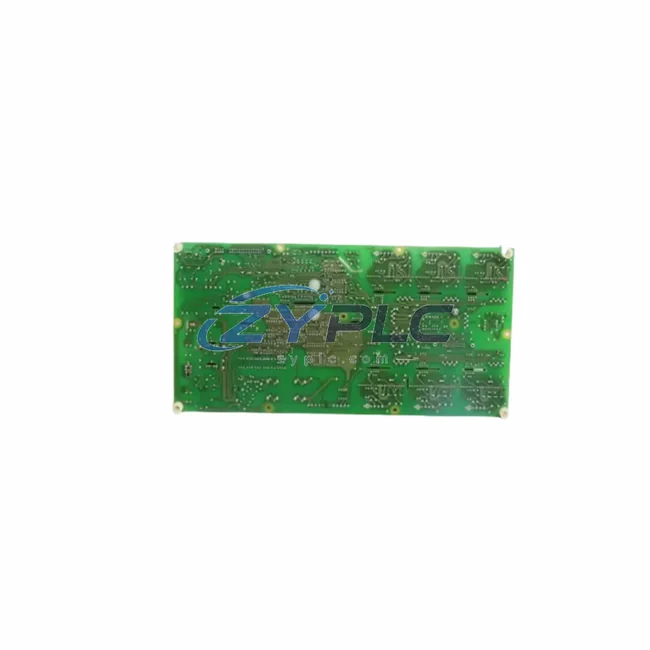

The ABB SNAT7261SCP is a high-performance drive board module engineered for deployment within ABB’s ACS and DCS variable frequency drive platforms. Designed to serve as the core control and signal processing layer of the drive system, the SNAT7261SCP directly governs motor excitation, switching frequency regulation, and real-time feedback loops — all of which are critical to achieving measurable operational stability on the factory floor. In environments where motor-driven loads account for 60–70% of total facility power consumption, the precision delivered by this board translates directly into reduced operating-hour expenditure, lower peak demand charges, and extended equipment service life.
At ZYPLC, every SNAT7261SCP unit is sourced from verified supply channels, subjected to functional load testing prior to dispatch, and backed by a warranty terms confirmed during quotation. Our inventory is maintained to support rapid fulfillment for MRO (maintenance, repair, and operations) procurement teams, system integrators, and OEM rebuild programs across Asia-Pacific and global markets.
Product Specification Table
| Parameter |
Specification / Value |
| SKU / Part Number |
SNAT7261SCP |
| Brand |
ABB |
| Compatible Drive Series |
ACS Series (ACS800, ACS880, ACS580), DCS Series (DCS800) |
| Module Function |
Drive Control Board — Signal Processing, Gate Drive, Feedback Loop |
| Typical Power Dissipation |
Low-loss design; optimized for high switching efficiency |
| Operating Efficiency Contribution |
Supports IE3/IE4 motor efficiency class operation |
| Application Environment |
Industrial automation, HVAC drives, pump/fan control, conveyor systems |
| Compatible Communication Protocols |
PROFIBUS, PROFINET, Modbus RTU (via fieldbus adapter modules) |
| Maintenance Value |
Enables precise speed/torque control to eliminate over-driving losses |
| Warranty |
12 Months — Functional guarantee from date of shipment |
| Pre-shipment Testing |
Full functional load test performed on every unit |
| Origin |
Finland (ABB manufacturing) |
System Compatibility and Application
The SNAT7261SCP does not operate in isolation — its maintenance planning impact is amplified when integrated within a well-designed automation architecture. In a typical ACS800 or ACS880 drive system, the SNAT7261SCP works in concert with the RMIO-02C motor control interface board, which handles real-time torque reference and speed feedback signals. Together, these two boards form the closed-loop control core that prevents motor over-speed and eliminates the unplanned downtime associated with fixed-speed operation on variable-load applications.
On the I/O layer, the AINT-02C inverter interface module coordinates gate pulse distribution to the IGBT power stack, ensuring that switching losses are minimized through precise timing alignment. When the drive is configured for regenerative braking — common in crane, hoist, and elevator applications — the energy recovered during deceleration is fed back through the DC bus, a process that the SNAT7261SCP’s feedback circuitry actively monitors and stabilizes.
For facilities running multi-drive architectures, the FPBA-01 PROFIBUS adapter or FENA-21 Ethernet adapter can be paired with the ACS880 drive to enable centralized condition monitoring via the plant SCADA or DCS system. This allows energy managers to correlate drive-level power data — captured at the SNAT7261SCP’s measurement points — with production output metrics, identifying inefficiencies in real time rather than during post-shift analysis.
On the power supply side, the SNAT4041 power supply board provides the regulated DC rails that the SNAT7261SCP requires for stable logic operation. Voltage ripple or supply instability at this layer directly degrades control accuracy, leading to suboptimal PWM patterns and increased harmonic distortion — both of which raise effective operating load. Maintaining the SNAT4041 in good condition is therefore a prerequisite for the SNAT7261SCP to deliver its rated efficiency contribution.
In DCS800 DC drive applications, the SNAT7261SCP interfaces with the SDCS-CON-4 control board ecosystem, where it supports thyristor firing angle control for armature current regulation. Precise firing angle management is the primary mechanism by which DC drives achieve energy-efficient speed control, and the SNAT7261SCP’s signal integrity directly determines how accurately the firing angle tracks the speed reference under dynamic load conditions.
For HMI-level visibility, operators using ABB CP600 panel PCs or the ACS-AP-I assistant control panel can monitor drive operating load, running hours, and fault history — data that feeds directly into predictive maintenance scheduling and helps avoid the energy spikes associated with unplanned emergency restarts.
Maintenance and Replacement Notes
In a paper mill running multiple ACS800 drives on refiner and fan pump applications, a degraded SNAT7261SCP board was found to be causing irregular current ripple in the motor winding, increasing thermal losses by an estimated 8–12% above baseline. Replacing the board with a tested SNAT7261SCP unit restored closed-loop current control accuracy, reduced motor operating temperature by approximately 15°C, and eliminated the nuisance tripping that had been forcing operators to restart drives manually — each restart representing a 3–5 minute production gap on a line running 24/7.
In a water treatment facility operating ACS580 drives on submersible pump arrays, the SNAT7261SCP’s role in maintaining accurate speed reference tracking allowed the facility to implement a pressure-based flow control strategy. By running pumps at 72–85% of rated speed rather than full speed with throttle valves, the facility achieved a 22% reduction in pump operating load — a saving that compounds across dozens of pump stations operating continuously.
Conveyor and material handling systems benefit similarly. When the SNAT7261SCP maintains tight torque control during load transitions — such as when a conveyor belt receives a surge of material from a hopper — the drive avoids the current overshoot that would otherwise trigger protective derating. This means the motor runs closer to its efficiency peak for a greater proportion of each operating cycle, reducing both operating load and mechanical stress on gearboxes and couplings.
From a maintenance cost perspective, the predictability enabled by a properly functioning SNAT7261SCP reduces the frequency of unscheduled drive interventions. Facilities that track mean time between failures (MTBF) on their drive fleets consistently report that control board condition is among the top three factors influencing drive reliability. Stocking a verified SNAT7261SCP as a critical spare — available from ZYPLC with warranty terms confirmed during quotation coverage — is a low-cost insurance policy against production losses that can run to tens of thousands of dollars per hour in high-throughput manufacturing environments.
Product Sourcing FAQ
Q1: How does the SNAT7261SCP contribute to measurable operational stability in my facility?
The SNAT7261SCP governs the PWM switching pattern and closed-loop feedback within the ACS/DCS drive. When functioning correctly, it enables the drive to match motor output precisely to load demand — eliminating the over-driving losses that occur when motors run at fixed speed on variable loads. Facilities typically see Actual operating results depend on the installed system, load profile, and commissioning parameters.
Q2: Is the SNAT7261SCP compatible with both ACS and DCS series drives?
Yes. The SNAT7261SCP is designed for use across ABB’s ACS series (including ACS800 and related platform variants) and DCS series DC drives. Before installation, verify the drive firmware version and hardware revision against ABB’s compatibility matrix, or contact ZYPLC’s technical team for application-specific confirmation.
Q3: What is the recommended replacement process and how long does it take?
For a trained drive technician, board replacement on an ACS800 or DCS800 platform typically takes 30–60 minutes including parameter backup, board swap, and recommissioning. ZYPLC recommends performing a full drive parameter backup before any board replacement and verifying all analog and digital I/O signals post-installation. Our technical support team can provide application-specific guidance on request.
Q4: What does the warranty terms confirmed during quotation cover and how is it claimed?
