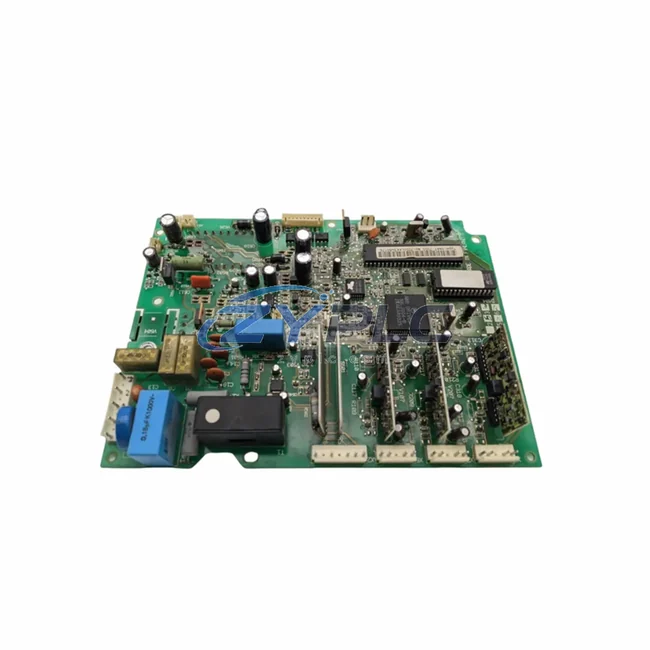

ABB SNAT7600 SNAZ7600D Industrial Network Interface for ACS600 Systems

ABB SNAT7600 SNAZ7600D Industrial Network Interface for ACS600 Systems: Bridging the Industrial Data Link in Smart Factory Environments

In modern smart manufacturing, the ability to move data seamlessly between field devices, PLC controllers, remote I/O modules, HMI panels, SCADA platforms, variable frequency drives, sensors, and supervisory systems is no longer optional — it is the foundation of operational excellence. The ABB SNAT7600 / SNAZ7600D communication and control board, designed for the ACS600 series of AC drives, serves as a critical node in this industrial data chain. By enabling reliable protocol conversion, real-time signal transmission, and network-level integration, the SNAT7600 ensures that your drive systems are not isolated endpoints but active participants in a fully connected automation architecture.

Compatibility & Integration Notes

Connected Automation Data Flow

The SNAT7600 / SNAZ7600D operates at the intersection of field-level hardware and plant-level intelligence. In a typical smart factory deployment, the data journey begins at the sensor layer — where pressure transmitters, temperature probes, and encoder feedback devices feed raw process signals into the ACS600 drive. The SNAT7600 board captures these signals and translates them into structured network data packets compatible with the plant’s communication backbone.

When integrated with an ABB AC500 PLC acting as the Profibus DP master, the SNAT7600 enables cyclic process data exchange — transmitting speed references, torque feedback, fault codes, and status words in real time. This tight coupling between the drive and the controller eliminates polling delays and ensures deterministic response times critical for closed-loop motion control applications.

For installations using the RPBA-01 Profibus DP Adapter alongside the SNAT7600, engineers gain a dual-layer communication path: the RPBA-01 handles the fieldbus master interface while the SNAT7600 manages internal drive coordination via the DDCS fiber optic ring. This architecture is particularly effective in multi-drive systems where the RMIO-01C I/O board distributes digital and analog I/O signals across multiple ACS600 units on the same network segment.

At the HMI layer, the ABB Panel 800 series operator terminals connect to the Modbus TCP/IP network, pulling live drive parameters — output frequency, motor current, DC bus voltage — directly from the SNAT7600’s data registers. Operators can monitor drive health, acknowledge alarms, and adjust setpoints without leaving the control room. When the system is linked to an ABB Ability SCADA platform, historical trending, energy consumption analytics, and predictive maintenance alerts become available across the entire drive fleet.

In distributed architectures, the SNAT7600 also interfaces with remote I/O modules connected via DeviceNet or CANopen, extending the drive’s digital I/O capacity without additional wiring runs. The RINT-5611C power interface board and NPOW-42C power supply module within the ACS600 cabinet provide the stable internal power rails that keep the SNAT7600 and its communication circuits operating reliably even under heavy industrial load cycles. For applications requiring optical isolation between drive and network, the OITF-01C optical interface module provides galvanic separation, protecting sensitive communication hardware from ground loops and electrical noise common in high-power drive environments.

In facilities running mixed drive fleets, the SNAT7600’s DDCS compatibility allows it to participate in master-follower drive configurations alongside ACS800 series units, enabling coordinated speed and torque control across multiple drive axes — a common requirement in winding, conveying, and pumping applications.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in industrial automation is the fragmentation of communication protocols across different generations of equipment. Older drives may speak only Modbus RTU, while newer PLC platforms demand Profibus DP or Ethernet-based protocols. Without a capable interface board like the SNAT7600, these devices become data islands — unable to share process information with supervisory systems, unable to trigger alarms in SCADA, and invisible to remote diagnostic tools.

The SNAT7600 / SNAZ7600D directly addresses this challenge by supporting multiple fieldbus protocols within a single hardware platform. Engineers can configure the board to match the plant’s existing network topology without replacing the drive unit itself, protecting capital investment while modernizing the communication layer. This flexibility is especially valuable during phased plant upgrades, where new PLC systems must coexist with legacy drive hardware.

Remote monitoring and diagnostics are equally transformed. With the SNAT7600 active on the network, maintenance teams can access drive fault logs, runtime hours, and thermal status from any SCADA workstation on the plant network — eliminating the need for on-site inspection of individual drive cabinets. Alarm events are propagated in real time to HMI panels and SCADA dashboards, enabling faster fault response and reducing unplanned downtime.

Production line transparency is another key benefit. By exposing drive-level data — energy consumption, load profiles, speed trends — to the plant’s MES or ERP layer via the SCADA gateway, operations managers gain the visibility needed to optimize throughput, schedule preventive maintenance, and validate process compliance. The SNAT7600 thus becomes not just a communication component, but a strategic enabler of data-driven manufacturing.

Every SNAT7600 / SNAZ7600D unit supplied by ZYPLC undergoes functional communication testing prior to shipment. Stock is maintained for shipment arranged after confirmation, and all units are covered by a warranty terms confirmed during quotation from the date of delivery.

Industrial Connectivity FAQ

Q1: What communication protocols does the ABB SNAT7600 support?
The SNAT7600 / SNAZ7600D supports Profibus DP, Modbus RTU, Modbus TCP/IP, CANopen, DeviceNet, and ABB’s proprietary DDCS fiber optic protocol. Protocol selection is configured via the ACS600 drive parameters, allowing the board to adapt to the plant’s existing network architecture without hardware changes.

Q2: Is the SNAT7600 compatible with third-party SCADA and HMI systems?
Yes. Because the SNAT7600 supports industry-standard protocols including Profibus DP and Modbus, it is compatible with SCADA platforms from multiple vendors, including Wonderware, Ignition, Siemens WinCC, and ABB Ability, as well as HMI terminals from ABB, Siemens, Schneider Electric, and others. Standard protocol compliance ensures broad system interoperability.

Q3: How does the SNAT7600 ensure network stability in high-interference industrial environments?
The SNAT7600 uses fiber optic DDCS links for internal drive-to-drive communication, providing complete electrical isolation and immunity to electromagnetic interference. For fieldbus connections, the board supports shielded RS-485 wiring with configurable termination resistors. The OITF-01C optical interface module can be added for additional galvanic isolation on external network connections.

Q4: What warranty and testing does ZYPLC provide for the SNAT7600?
All SNAT7600 / SNAZ7600D units are tested for communication functionality and drive compatibility before shipment. ZYPLC provides a warranty terms confirmed during quotation covering manufacturing defects and communication failures. Availability is confirmed via RFQ for same-week dispatch with DHL or FedEx international express delivery.
