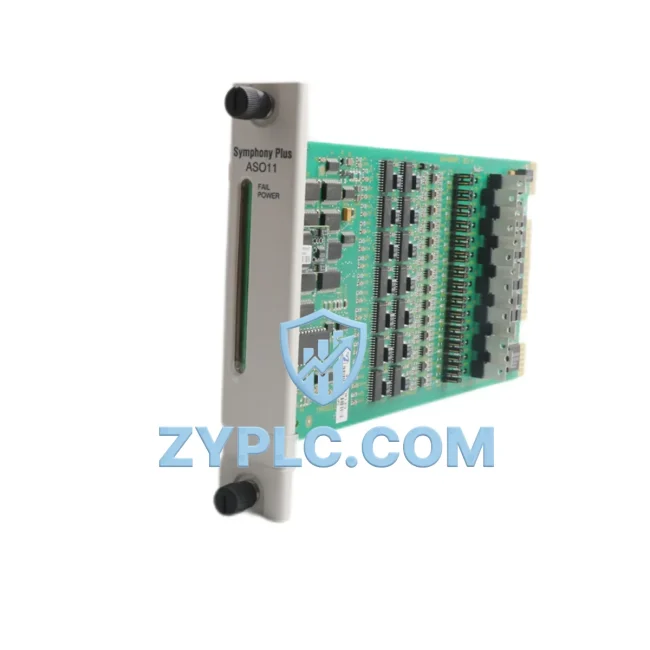

ABB SPASO11 Industrial Network Interface for AC500 Systems

ABB SPASO11 Industrial Data Link: Analog Output Gateway for AC500 Smart Factory Systems

The ABB SPASO11 is a high-performance analog output slave module engineered for seamless integration within ABB’s AC500 PLC platform. Designed to serve as a critical node in industrial data communication chains, the SPASO11 bridges the gap between digital control logic and real-world field devices — enabling precise signal output to actuators, variable frequency drives, control valves, and process instrumentation across demanding manufacturing and process automation environments.

In modern smart factory architectures, the ability to transmit accurate, low-latency analog signals across distributed control networks is fundamental to operational efficiency. The SPASO11 fulfills this role by delivering stable 4–20 mA or 0–10 V analog output channels that interface directly with field-level devices while remaining fully synchronized with the AC500 CPU’s real-time data processing cycle. Whether deployed in a standalone machine cell or integrated into a plant-wide SCADA network, the SPASO11 ensures that control commands from the PLC reach actuators with minimal signal degradation and maximum repeatability.

Network Communication Table

Connected Automation Data Flow

The SPASO11 operates as an integral component within a layered industrial communication architecture. At the field level, the AC500 CPU — such as the ABB PM573-ETH or PM591-ETH — collects process data from upstream sensors, encoders, and remote I/O stations via PROFIBUS-DP or Modbus RTU. This data is processed in real time and translated into analog output commands that are dispatched to the SPASO11 over the AC500 internal CS31 bus.

The SPASO11 then converts these digital control values into precise analog signals, which are transmitted to downstream field devices including ABB ACS580 variable frequency drives, proportional control valves, and analog-input process transmitters. In parallel, the AC500 CPU communicates upstream with ABB CP600 HMI panels, providing operators with real-time visualization of output states, setpoint values, and alarm conditions.

For plant-wide integration, the AC500 system — with the SPASO11 as a distributed output node — connects to SCADA platforms via Ethernet/IP or OPC-UA through the ABB AC500 eCo communication gateway. Remote I/O expansion is further supported through ABB TB521-ETH terminal base units, allowing the SPASO11 to be deployed at distances from the main CPU rack without signal loss. Edge computing nodes, such as the ABB Ability Edge Gateway, can aggregate analog output telemetry from multiple SPASO11 modules and forward structured data to cloud-based MES or ERP systems for production analytics and predictive maintenance workflows.

In drive control applications, the SPASO11 provides speed reference signals to ABB ACS355 and ACS880 series drives, enabling smooth acceleration ramps and precise torque control without the latency associated with digital fieldbus polling. For process industries, the module’s analog outputs interface with ABB TZIDC digital positioners and smart valve controllers, closing the loop between PLC logic and physical process control with sub-millisecond response times.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in industrial automation is the fragmentation of control data across incompatible protocols and legacy hardware generations. The ABB SPASO11, when deployed within the AC500 ecosystem, directly addresses these data isolation problems by providing a standardized analog output interface that bridges legacy field devices with modern digital control networks.

Sites running mixed environments — where older pneumatic actuators or analog-only transmitters coexist with modern PROFIBUS or Ethernet-based controllers — benefit from the SPASO11’s ability to translate digital PLC commands into universally accepted 4–20 mA signals. This eliminates the need for costly field device replacements and allows phased digital transformation without production downtime.

For remote monitoring and diagnostics, the SPASO11’s integration with the AC500 CPU enables full output channel status reporting through the HMI and SCADA layers. Operators can monitor output values, detect wire-break faults, and receive alarm notifications in real time — reducing mean time to repair (MTTR) and improving overall equipment effectiveness (OEE). In multi-line production environments, the SPASO11 supports system scalability by allowing additional analog output channels to be added to the AC500 rack without reprogramming the CPU communication stack, making it an ideal solution for phased capacity expansions and production line reconfigurations.

All SPASO11 units supplied by ZYPLC are sourced from verified channels, subjected to pre-shipment functional testing, and backed by a 12-month warranty. In-stock inventory ensures rapid order fulfillment with DHL/FedEx express shipping to global destinations, minimizing procurement lead times for MRO and project-critical applications.

Industrial Connectivity FAQ

Q1: What communication protocols does the ABB SPASO11 support?
The SPASO11 communicates with the AC500 CPU via the proprietary CS31 internal bus. When the AC500 CPU is configured as a PROFIBUS-DP master or Modbus RTU master, the SPASO11’s analog outputs can be mapped to fieldbus data objects, enabling protocol-transparent integration with third-party SCADA systems, HMI panels, and remote I/O networks.

Q2: Can the SPASO11 be used in systems with high network traffic or fast scan cycles?
Yes. The SPASO11 is designed to operate synchronously with the AC500 CPU scan cycle, which can be configured as low as 1 ms for time-critical applications. The CS31 bus architecture ensures deterministic data transfer between the CPU and the SPASO11, making it suitable for high-speed process control and motion coordination tasks where analog output latency must be minimized.

Q3: Is the SPASO11 compatible with third-party PLCs or only ABB AC500 systems?
The SPASO11 is specifically designed for the ABB AC500 platform and communicates via the AC500 internal bus. For integration with third-party PLCs or DCS systems, an AC500 CPU acting as a gateway — combined with appropriate communication modules such as the ABB CI590-CS31-HA — can bridge the SPASO11’s outputs into standard industrial protocols including PROFIBUS-DP, Modbus TCP, and EtherNet/IP.

Q4: What warranty and testing standards apply to SPASO11 units from ZYPLC?
Every SPASO11 unit shipped by ZYPLC carries a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions. Prior to dispatch, each module undergoes pre-shipment functional testing to verify analog output accuracy, bus communication integrity, and channel isolation. Expedited shipping via DHL or FedEx is available for urgent MRO and project requirements.

—
