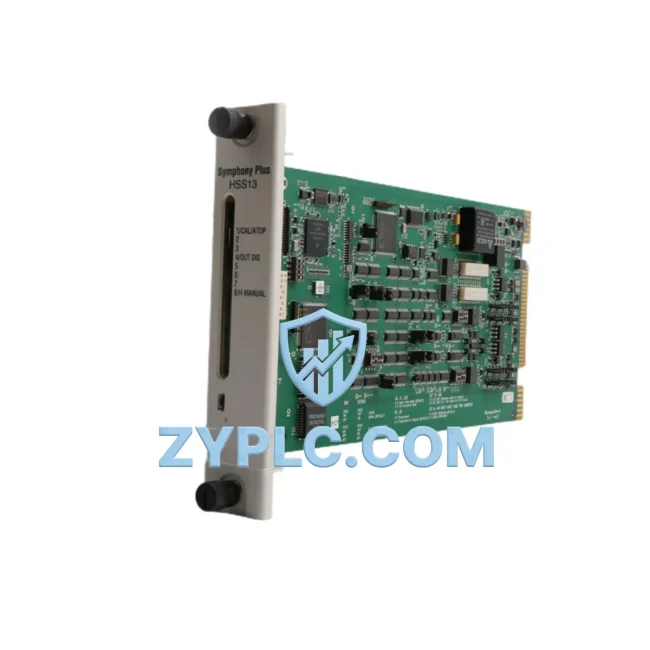

ABB SPHSS13 Industrial Network Interface for SPHS Systems

ABB SPHSS13 Industrial Network Interface for SPHS Systems: Enabling Smart Factory Data Links

The ABB SPHSS13 is a high-performance hydraulic servo module from ABB’s SPHS Series, engineered to serve as a critical industrial network interface within distributed control architectures. Designed for demanding process automation environments — including pulp and paper, power generation, oil and gas, and heavy manufacturing — the SPHSS13 delivers precise servo positioning control while simultaneously acting as a data bridge between field-level hydraulic actuators and upper-level control systems such as DCS, SCADA, and HMI platforms.

In modern smart factories, data isolation between hydraulic servo systems and digital control networks is one of the most persistent challenges. The SPHSS13 addresses this directly by integrating seamlessly into ABB’s Advant OCS and Symphony Plus distributed control ecosystems, enabling real-time signal acquisition, protocol-level communication, and continuous loop feedback across the entire automation chain.

Network Communication Table

Connected Automation Data Flow

The SPHSS13 sits at the intersection of physical process control and digital data infrastructure. In a typical smart factory deployment, the data flow begins at the hydraulic actuator — where position sensors and pressure transducers generate analog signals that are captured and conditioned by the SPHSS13 module. These signals are then processed through the ABB SPHS Series servo control loop, which executes high-speed closed-loop positioning commands with millisecond-level response times.

Upstream, the SPHSS13 communicates with the ABB PM864A or PM865A process controller modules via the Advant OCS backplane bus, transmitting real-time servo status, fault diagnostics, and position data. This data is then aggregated by the ABB CI854A PROFIBUS-DP communication interface module, which bridges the servo control layer to the plant-wide PROFIBUS network — enabling integration with third-party PLCs, remote I/O stations, and field devices from other vendors.

At the SCADA and HMI layer, operators interact with the SPHSS13’s live data through ABB Operate IT or compatible HMI terminals, where servo position trends, alarm states, and loop performance metrics are visualized in real time. For plants running ABB Symphony Plus, the SPHSS13 data stream feeds directly into the S+ Operations historian and alarm management system, supporting predictive maintenance workflows and production KPI dashboards.

In multi-axis hydraulic press or rolling mill applications, the SPHSS13 operates in parallel with ABB SPHS21 and SPHS31 servo modules, forming a coordinated servo network managed by a central ABB AC800M controller. Remote I/O expansion is handled through ABB S800 I/O modules, which extend the control network to distributed field cabinets without additional wiring infrastructure. For edge connectivity and remote diagnostics, the system integrates with ABB Ability™ Edge gateways, enabling cloud-based monitoring and OPC UA data export to MES and ERP platforms.

Variable frequency drives such as the ABB ACS880 series are often deployed alongside the SPHSS13 in hybrid hydraulic-electric drive systems, with both device types reporting to the same DCS node — creating a unified energy and motion management layer across the production line.

Solving Data Isolation in Industrial Sites

One of the most common pain points in legacy industrial facilities is the existence of data silos — hydraulic servo systems that operate in isolation from the plant’s digital control network, making it impossible to achieve true production transparency or implement predictive maintenance strategies. The ABB SPHSS13 directly resolves this challenge through its native integration with ABB’s distributed control architecture.

Protocol Unification: The SPHSS13 eliminates the need for custom protocol converters between the servo layer and the DCS by using ABB’s standardized backplane communication bus. When combined with the CI854A PROFIBUS gateway, it extends this unified communication to third-party systems, ensuring that no field device remains isolated from the control network.

Real-Time Monitoring and Alarm Feedback: Servo position deviations, hydraulic pressure anomalies, and loop instability events are detected and reported in real time through the SPHSS13’s onboard diagnostics. These alarms propagate immediately to the SCADA alarm management system, enabling operators to respond before process deviations escalate into equipment damage or production loss.

Remote Diagnostics and Predictive Maintenance: Through integration with ABB Ability™ Edge and OPC UA connectivity, maintenance engineers can remotely access SPHSS13 performance data — including servo gain parameters, feedback signal quality, and historical fault logs — without requiring physical access to the control cabinet. This capability is especially valuable for geographically distributed plants or facilities with limited on-site engineering resources.

System Scalability: The modular architecture of the SPHS Series means that additional servo axes can be added to the control network without redesigning the communication infrastructure. Each new SPHSS13 module integrates automatically into the existing DCS node, and its data becomes immediately available to the SCADA historian and HMI displays — supporting phased capacity expansion without production interruption.

Production Line Transparency: By connecting hydraulic servo data to the plant’s MES layer via OPC UA or PROFIBUS gateways, production managers gain full visibility into cycle times, energy consumption per servo axis, and equipment utilization rates — enabling data-driven decisions about maintenance scheduling, shift planning, and capital investment.

Industrial Connectivity FAQ

Q1: What communication protocols does the ABB SPHSS13 support, and is it compatible with third-party SCADA systems?
The SPHSS13 uses ABB’s proprietary SPHS Series backplane communication protocol for native integration with Advant OCS and Symphony Plus DCS platforms. For third-party SCADA compatibility, it is typically paired with the ABB CI854A PROFIBUS-DP interface module or an OPC UA gateway, enabling data exchange with Wonderware, Ignition, Siemens WinCC, and other industrial SCADA platforms without protocol conflicts.

Q2: How does the SPHSS13 perform in terms of communication latency and control loop stability?
The SPHSS13 is designed for high-speed closed-loop servo control with scan cycle times in the low-millisecond range, ensuring that position feedback and control output updates occur faster than the mechanical response time of the hydraulic actuator. This makes it suitable for precision applications such as hydraulic press control, rolling mill gap adjustment, and turbine valve positioning where loop stability is critical.

Q3: Can the SPHSS13 be integrated into an existing plant network without replacing the current DCS infrastructure?
Yes. The SPHSS13 is designed for backward compatibility within the ABB Advant and Symphony Plus ecosystems, and can be installed as a replacement or expansion module within existing control cabinets. For plants running non-ABB DCS platforms, integration is achieved through PROFIBUS-DP or OPC UA gateway modules, allowing the SPHSS13 to report data to the existing control network without requiring a full system migration.

Q4: What does the 12-month warranty cover, and what pre-shipment testing is performed?
Every ABB SPHSS13 unit supplied by ZYPLC undergoes functional verification testing prior to shipment, including power-on self-test, communication interface validation, and servo feedback signal integrity checks. The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions. Our inventory is sourced from verified supply channels, and all units are shipped with appropriate anti-static packaging and documentation to ensure safe transit and traceability.
