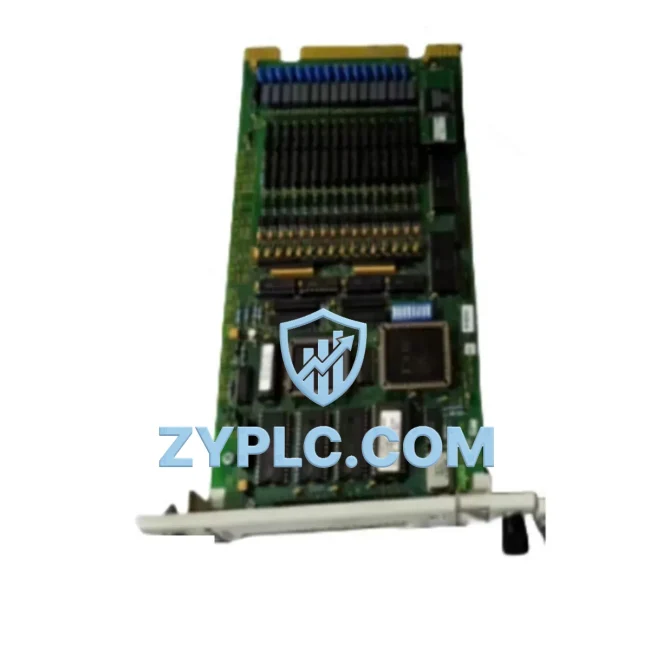

ABB SPSED01 Industrial Network Interface for AC500 Systems: Precision Data Link for Smart Factory Automation

The ABB SPSED01 is a high-performance Digital Input Module engineered for the ABB AC500 PLC series, delivering reliable signal acquisition and seamless industrial data communication across complex automation architectures. Designed to bridge field-level devices with upper-layer control and monitoring systems, the SPSED01 serves as a critical node in the industrial data chain — from raw signal capture at the sensor level to real-time data visibility in SCADA and HMI platforms. Whether deployed in discrete manufacturing, process automation, or smart factory environments, this module ensures deterministic, low-latency digital input processing that modern Industry 4.0 applications demand.

Network Communication Table

Connected Automation Data Flow

In a typical smart factory deployment, the ABB SPSED01 sits at the foundation of the digital data chain. Field-level sensors — including proximity switches, photoelectric sensors, and limit switches — feed 24VDC digital signals directly into the SPSED01’s input channels. These signals are immediately processed and made available on the AC500 backplane bus, where the ABB PM573 or PM591 CPU module executes the IEC 61131-3 control logic in real time.

From the CPU, processed data travels upstream via the ABB CM589-PNIO PROFINET communication module or the CM572-DP PROFIBUS DP master module, enabling the AC500 rack to participate in plant-wide industrial Ethernet or fieldbus networks. At the network layer, managed industrial switches — such as those in the ABB EL series — ensure deterministic packet delivery and network redundancy across the production floor.

For remote I/O expansion beyond the main rack, the SPSED01 can be paired with ABB TB521 or TB541 terminal base units and extended via the CS31 system bus, allowing distributed digital input nodes to be placed close to field devices while maintaining centralized control. This architecture is particularly effective in large-scale assembly lines, conveyor systems, and multi-zone process plants where cable runs must be minimized.

At the HMI and SCADA layer, real-time digital input states captured by the SPSED01 are visualized through platforms such as ABB CP635 or CP651 HMI panels, providing operators with live process status, alarm conditions, and trend data. Integration with SCADA systems — including ABB System 800xA or third-party platforms via OPC-UA gateways — enables plant-wide transparency, historical data logging, and remote diagnostic access. When a digital input triggers an alarm condition, the signal path from the SPSED01 through the AC500 CPU to the SCADA alarm server completes in milliseconds, ensuring rapid operator response and minimizing unplanned downtime.

For drive and motion control applications, digital inputs from the SPSED01 can be mapped to control logic that governs ABB ACS580 or ACS880 variable frequency drives, enabling start/stop commands, speed reference selection, and fault acknowledgment based on field device states. This tight integration between digital I/O modules and drive systems is fundamental to coordinated motion sequences in packaging, material handling, and robotics applications.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in industrial automation is the fragmentation of data across incompatible protocols, legacy systems, and isolated control islands. The ABB SPSED01, as part of the AC500 ecosystem, directly addresses these pain points through its native compatibility with multiple communication standards and its role as a standardized digital input node across diverse automation platforms.

Protocol Unification: Many industrial sites operate a mix of PROFIBUS DP legacy devices alongside newer PROFINET or Modbus TCP/IP infrastructure. The AC500 platform — with the SPSED01 as its digital input backbone — supports protocol bridging through dedicated communication modules, eliminating the need for standalone protocol converters and reducing network complexity.

Breaking Data Silos: When digital input states from field devices remain trapped within a local PLC and never reach the SCADA or MES layer, production visibility suffers. The SPSED01’s integration with the AC500 CPU and its upstream communication modules ensures that every digital signal — from a simple limit switch to a complex safety interlock — is available for real-time monitoring, historical trending, and KPI reporting at the enterprise level.

Remote Monitoring and Diagnostics: With the AC500’s remote access capabilities via Ethernet communication modules, maintenance engineers can interrogate the SPSED01’s input states, diagnose wiring faults, and verify signal integrity without physical access to the control panel. This capability is critical for geographically distributed plants, unmanned substations, and 24/7 production environments where on-site intervention is costly.

Production Line Transparency: By standardizing on the ABB AC500 platform with SPSED01 digital input modules across multiple production cells, plant managers gain a unified data model that feeds directly into OEE dashboards, predictive maintenance algorithms, and digital twin simulations — transforming raw digital signals into actionable business intelligence.

System Scalability: The modular architecture of the AC500 system allows additional SPSED01 modules to be added to the rack or distributed via CS31 bus without reprogramming the core control logic, making it straightforward to expand I/O capacity as production requirements evolve.

Industrial Connectivity FAQ

Q1: What is the communication latency of the ABB SPSED01 within the AC500 system?
The SPSED01 exchanges data with the AC500 CPU via the high-speed backplane bus with cycle times as low as 1ms, depending on the CPU model and program complexity. This ensures that time-critical digital input events — such as emergency stop signals or position feedback — are processed within the PLC scan cycle without measurable delay.

Q2: Is the SPSED01 compatible with PROFIBUS DP and Modbus RTU networks simultaneously?
The SPSED01 itself is a digital input module that interfaces with the AC500 backplane. Protocol compatibility with PROFIBUS DP, Modbus RTU, or PROFINET is provided by the corresponding AC500 communication modules (e.g., CM572-DP for PROFIBUS, CM589-PNIO for PROFINET). Multiple communication modules can be installed in the same AC500 rack, enabling simultaneous multi-protocol connectivity.

Q3: How does the SPSED01 support network stability in high-noise industrial environments?
The SPSED01 is designed to IEC 61131-2 environmental standards, with robust EMC immunity ratings suitable for installation in close proximity to variable frequency drives, welding equipment, and high-current switching devices. The 24VDC SELV input design and galvanic isolation on input channels further protect signal integrity in electrically noisy environments.

Q4: What does the 12-month warranty cover, and is pre-shipment testing performed?
Every ABB SPSED01 unit supplied by ZYPLC undergoes functional verification testing prior to shipment, confirming input channel operation, backplane communication integrity, and LED status indication. The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions. Global stock is maintained for rapid dispatch, and RFQ responses are provided within one business day.
