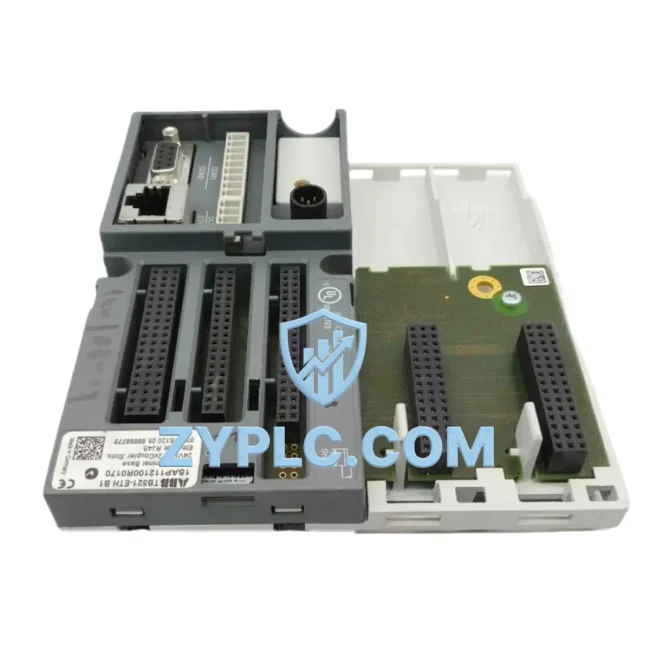

ABB TB521-ETH 1SAP112100R0170 Ethernet Terminal Base AC500

ABB TB521-ETH 1SAP112100R0170: Ethernet Terminal Base for AC500 Industrial Data Links

The ABB TB521-ETH (1SAP112100R0170) is a high-performance Ethernet Terminal Base engineered for the ABB AC500 PLC platform, purpose-built to serve as the physical and logical backbone of industrial network communication in smart factory environments. As manufacturing sites evolve toward fully connected automation architectures, the TB521-ETH provides the critical Ethernet interface layer that bridges field-level devices — sensors, actuators, remote I/O modules — with upper-level control and supervisory systems including SCADA platforms, HMI panels, and MES infrastructure.

Designed and manufactured in Germany to ABB’s stringent industrial quality standards, the TB521-ETH supports seamless integration within AC500 control cabinets, enabling deterministic, low-latency Ethernet communication across the entire automation data chain. Whether deployed in discrete manufacturing, process control, energy management, or infrastructure automation, this terminal base delivers the connectivity reliability that modern industrial operations demand.

Network Communication Table

Connected Automation Data Flow

In a typical smart factory deployment, the TB521-ETH 1SAP112100R0170 sits at the heart of the AC500 control node, providing the Ethernet backbone over which all automation data flows. At the field level, distributed I/O modules such as the ABB DC532 digital I/O module and AI523 analog input module collect real-time process signals — temperature readings, pressure values, motor feedback — and relay them upstream through the AC500 CPU mounted on the TB521-ETH terminal base.

The AC500 CPU, typically an ABB PM564-T or PM573-ETH, processes this field data and communicates via Ethernet to the plant’s SCADA system — for example, a Wonderware InTouch or Ignition SCADA server — where operators monitor production KPIs, set process parameters, and receive alarm notifications in real time. Simultaneously, the Ethernet link established through the TB521-ETH enables direct HMI connectivity: ABB CP600 series operator panels or third-party HMI terminals can poll the PLC for live data without additional protocol conversion hardware.

For drive integration, the TB521-ETH-equipped AC500 node communicates with ABB ACS880 variable frequency drives over Ethernet, enabling closed-loop speed and torque control with millisecond response times. In parallel, remote I/O expansion racks — connected via ABB TU515 or TU516 terminal units — extend the I/O footprint across the production floor without additional cabling runs to the main control cabinet.

At the network edge, industrial Ethernet switches such as the ABB EL1008 or compatible Hirschmann SPIDER series managed switches aggregate traffic from multiple AC500 nodes, ensuring deterministic packet delivery and network redundancy. For sites requiring protocol bridging between legacy fieldbus systems and modern Ethernet infrastructure, the TB521-ETH-based AC500 node can interface with communication modules such as the ABB CI592-CS31 or CI501-PNIO PROFINET adapter, enabling transparent data exchange between older CS31 field devices and the Ethernet backbone.

Edge computing gateways — such as ABB Edge Controller or third-party devices running IEC 61131-3 soft PLC environments — can subscribe to real-time data published by the AC500 over Ethernet, enabling local analytics, predictive maintenance algorithms, and OPC UA data uplink to cloud MES or ERP platforms. This end-to-end data chain, anchored by the TB521-ETH terminal base, transforms isolated field devices into fully visible, remotely manageable assets within the smart factory ecosystem.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in industrial automation is data isolation: field devices operating on incompatible protocols, control islands that cannot share process data, and production lines where real-time visibility ends at the cabinet door. The ABB TB521-ETH 1SAP112100R0170 directly addresses these challenges by providing a standards-based Ethernet interface at the PLC level, eliminating the need for proprietary communication adapters between the AC500 controller and the plant network.

Sites running mixed protocol environments — where legacy Modbus RTU sensors coexist with modern PROFINET drives and EtherNet/IP I/O blocks — benefit from the AC500’s multi-protocol Ethernet stack, accessible through the TB521-ETH interface. A single AC500 node can simultaneously serve as a Modbus TCP server for SCADA polling, a PROFINET controller for drive networks, and an EtherNet/IP adapter for upstream MES connectivity, all over the same Ethernet port provided by the TB521-ETH terminal base.

Remote monitoring and diagnostics are equally transformed. With the TB521-ETH in place, maintenance engineers can access AC500 diagnostic data — CPU load, communication error counters, I/O module health — from any networked workstation or mobile device, without physical access to the control cabinet. Alarm events are propagated in real time to SCADA and HMI systems, enabling rapid fault response and minimizing unplanned downtime.

Production line transparency is achieved through continuous data logging: the AC500 node streams process variables, cycle counts, and quality metrics over Ethernet to historian servers or cloud analytics platforms, providing the data foundation for OEE analysis, predictive maintenance, and continuous improvement initiatives. As production capacity grows, additional AC500 nodes — each equipped with a TB521-ETH terminal base — can be added to the network without architectural changes, providing linear scalability for expanding smart factory deployments.

Industrial Connectivity FAQ

Q: What communication protocols does the ABB TB521-ETH 1SAP112100R0170 support?
A: The TB521-ETH provides a standard RJ45 Ethernet interface for the AC500 PLC platform, supporting Ethernet-based protocols including Modbus TCP, PROFINET (with appropriate CPU or communication module), and EtherNet/IP. Protocol availability depends on the AC500 CPU firmware version and installed communication modules.

Q: Is the TB521-ETH compatible with all AC500 CPU modules?
A: The TB521-ETH is designed for the AC500 modular platform and is compatible with PM5xx series CPUs including PM564, PM573, PM583, and PM595 variants that support Ethernet communication. Always verify CPU-to-terminal-base compatibility in the ABB AC500 system configuration guide before ordering.

Q: How does ZYPLC ensure network stability and product quality before shipment?
A: Every ABB TB521-ETH 1SAP112100R0170 unit supplied by ZYPLC undergoes pre-shipment functional verification, including communication interface testing and visual inspection. All units are covered by a 12-month warranty from the date of shipment, with technical support available for integration and commissioning queries.

Q: Can the TB521-ETH support system expansion without network reconfiguration?
A: Yes. The AC500 platform’s modular architecture allows additional I/O modules and communication adapters to be added to an existing TB521-ETH-based node without changes to the Ethernet network configuration. IP addressing and PROFINET device naming can be managed centrally via the AC500 engineering tool (Automation Builder), enabling seamless system expansion as production requirements grow.
