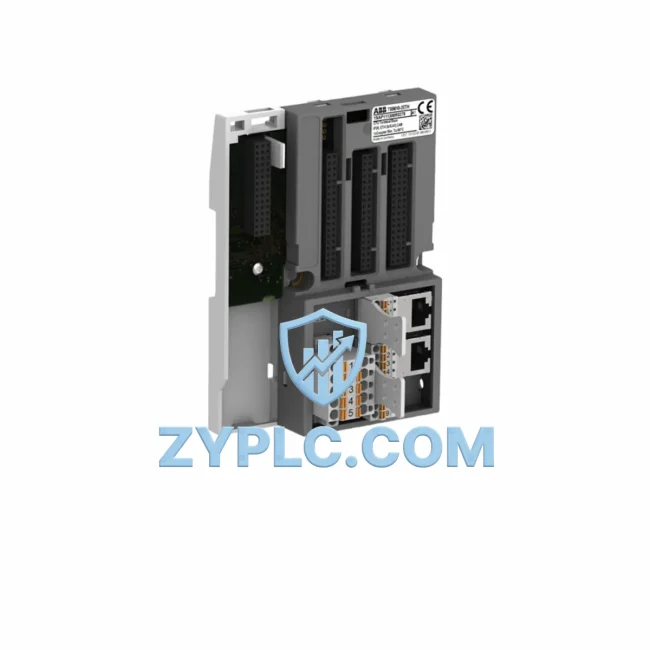

ABB TB5610-2ETH Industrial Network Interface for AC500 Systems: Bridging the Industrial Data Link

In modern smart factory environments, seamless data flow between field devices, controllers, and supervisory systems is the backbone of operational efficiency. The ABB TB5610-2ETH (SKU: TB5610-2ETH 1SAP111300R0278) is a dual-port Ethernet communication gateway engineered specifically for the ABB AC500 PLC platform, delivering robust industrial network connectivity across every layer of the automation hierarchy — from sensor-level signal acquisition to SCADA-level real-time monitoring and remote diagnostics.

Whether you are integrating legacy field instruments, expanding a distributed control architecture, or building a fully transparent production line, the TB5610-2ETH provides the protocol conversion, network stability, and data throughput required to eliminate communication bottlenecks in demanding industrial environments.

Network Communication Table

Connected Automation Data Flow

The TB5610-2ETH sits at the heart of the AC500 communication architecture, acting as the critical bridge between the controller and the broader industrial network. In a typical smart factory deployment, field-level sensors — such as ABB’s range of process transmitters and proximity switches — feed analog and digital signals into ABB AC500 remote I/O modules (e.g., the DC532 digital I/O module or AI523 analog input module). These signals are aggregated at the AC500 CPU, where the TB5610-2ETH enables real-time data exchange over dual Ethernet ports.

On the network side, the gateway communicates upstream with SCADA platforms and HMI panels — including ABB’s CP600 HMI series — using Modbus TCP or PROFINET IO, ensuring that operators have live process visibility without polling delays. For drive integration, the TB5610-2ETH facilitates data exchange with ABB ACS880 variable frequency drives, enabling speed references, fault codes, and energy consumption data to flow transparently into the control layer.

In multi-node architectures, the dual-port design supports daisy-chain or ring topologies, allowing the TB5610-2ETH to connect alongside industrial Ethernet switches (such as unmanaged DIN-rail switches rated for -40°C to +75°C operation) without introducing single points of failure. Edge gateway devices can tap into this data stream to forward production KPIs to MES or cloud-based analytics platforms, completing the IIoT data chain from field to enterprise.

For installations requiring protocol translation between legacy serial devices and modern Ethernet networks, the AC500 platform — with the TB5610-2ETH as its Ethernet backbone — can interface with Modbus RTU serial gateways and PROFIBUS DP communication modules (such as the ABB TK501 or CM572-DP), enabling brownfield integration without replacing existing field instrumentation. This makes the TB5610-2ETH an essential component in phased digital transformation projects where legacy and modern systems must coexist.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in industrial automation is data isolation — where PLCs, drives, sensors, and HMI systems operate in communication silos, preventing plant-wide transparency and real-time decision-making. The ABB TB5610-2ETH directly addresses this by providing a standardized, high-speed Ethernet interface that unifies disparate protocol environments under a single network fabric.

Protocol Unification: Many industrial sites run a mix of Modbus RTU, PROFIBUS, and proprietary serial protocols inherited from different equipment generations. The TB5610-2ETH, operating within the AC500 ecosystem, enables protocol bridging so that data from legacy instruments reaches modern SCADA and MES systems without manual intervention or data re-entry.

Remote Monitoring and Diagnostics: With dual Ethernet connectivity, maintenance engineers can access AC500 controller diagnostics, I/O status, and alarm logs remotely — reducing mean time to repair (MTTR) and eliminating the need for on-site visits for routine fault analysis. Integration with SCADA platforms enables alarm escalation workflows and historical trending for predictive maintenance.

Production Line Transparency: By connecting the AC500 PLC network to HMI panels and SCADA servers via the TB5610-2ETH, production managers gain real-time OEE (Overall Equipment Effectiveness) data, cycle time tracking, and quality metrics — all without additional middleware or custom software development.

Scalable Network Expansion: The dual-port Ethernet design supports network topologies that scale from small standalone cells to plant-wide distributed control systems. Adding new nodes — whether additional remote I/O racks, drive controllers, or edge computing devices — requires only network configuration changes, not hardware redesign.

Outgoing Test and 12-Month Warranty: Every TB5610-2ETH unit shipped by ZYPLC undergoes functional testing prior to dispatch, verifying Ethernet link establishment, protocol handshake, and communication integrity. A 12-month warranty covers all hardware defects, giving procurement and maintenance teams confidence in long-term reliability.

Industrial Connectivity FAQ

Q1: What communication protocols does the ABB TB5610-2ETH support?
The TB5610-2ETH supports Modbus TCP and PROFINET IO natively within the AC500 platform. Depending on the AC500 CPU firmware version, EtherNet/IP and OPC UA communication are also achievable, making it compatible with a wide range of SCADA, HMI, and MES systems from multiple vendors.

Q2: How does the dual-port Ethernet design improve network stability?
The two independent RJ45 ports allow the TB5610-2ETH to participate in ring or daisy-chain topologies with media redundancy protocol (MRP) support, eliminating single points of network failure. In the event of a cable fault, traffic is automatically rerouted, maintaining continuous communication between the AC500 controller and upstream systems.

Q3: Can the TB5610-2ETH be integrated into an existing SCADA or HMI system without replacing the PLC?
Yes. The TB5610-2ETH is designed as a plug-in communication module for the AC500 backplane, adding Ethernet capability to existing AC500 installations without requiring CPU replacement. It is compatible with ABB Automation Builder engineering software for configuration and diagnostics, minimizing integration effort.

Q4: What does the 12-month warranty cover, and how is outgoing testing performed?
The 12-month warranty covers all manufacturing defects and hardware failures under normal operating conditions. Prior to shipment, each unit is tested for Ethernet port functionality, module recognition within the AC500 backplane, and basic communication handshake. Test records are available upon request for quality assurance documentation.
