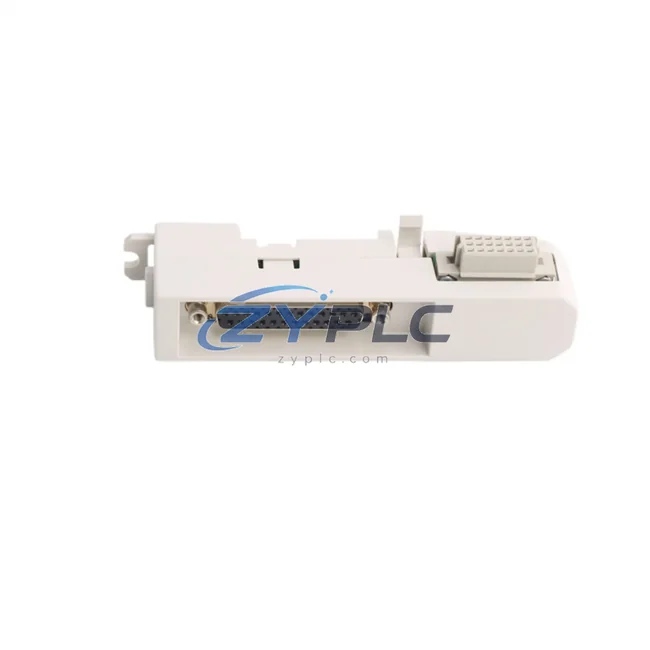

ABB TB805 3BSE008534R1 Industrial Network Interface for 800xA Systems

ABB TB805 3BSE008534R1: Industrial Data Link for Smart Factory Connectivity in 800xA Systems

The ABB TB805 (3BSE008534R1) is a high-performance ModuleBus Communication Gateway engineered for seamless integration within ABB’s System 800xA Distributed Control System architecture. Designed to bridge field-level devices and supervisory control networks, the TB805 serves as a critical node in the industrial data chain — enabling reliable, real-time communication between PLCs, remote I/O stations, HMI panels, SCADA platforms, and upper-level management systems. In smart factory environments where data latency and protocol fragmentation can disrupt production continuity, the TB805 delivers the deterministic communication backbone that modern industrial automation demands.

As manufacturing facilities accelerate their transition toward Industry 4.0, the need for robust, protocol-aware connectivity modules has never been greater. The ABB TB805 3BSE008534R1 addresses this need directly — providing a stable, tested, and field-proven gateway solution that supports the full data lifecycle from signal acquisition at the sensor level through to enterprise-level analytics and remote diagnostics.

Compatibility & Integration Notes

Connected Automation Data Flow

In a fully integrated 800xA automation architecture, the ABB TB805 3BSE008534R1 operates as the ModuleBus backbone connector, linking the ABB AC800M Controller — the central processing unit of the 800xA platform — to distributed S800 I/O modules such as the AI810 analog input module and the DI810 digital input module. These I/O modules collect real-time process signals from field instruments including pressure transmitters, flow sensors, temperature probes, and motor feedback devices.

The TB805 gateway ensures that data acquired at the field level is transmitted with minimal latency across the ModuleBus segment to the AC800M controller, where it is processed and forwarded upstream to the ABB System 800xA Operator Workplace and connected SCADA servers. This data path supports real-time monitoring dashboards, alarm management, and historical trending — all essential functions in process-critical industries such as oil and gas, power generation, pulp and paper, and chemical manufacturing.

For applications requiring extended I/O reach, the TB805 works in conjunction with TB807 and TB820 ModuleBus Modem modules, enabling long-distance communication between the controller cabinet and remote I/O clusters located across the plant floor. This architecture eliminates the need for dedicated point-to-point wiring between each field device and the control room, dramatically reducing installation complexity and cable costs.

At the drive integration layer, the TB805 supports data exchange with ABB ACS880 and ACS580 variable frequency drives via the 800xA Drive Manager, enabling closed-loop speed and torque control with full diagnostic visibility from the SCADA level. Similarly, ABB PROFIBUS DP communication modules such as the CI854 can be deployed alongside the TB805 to bridge legacy PROFIBUS field devices into the 800xA network, ensuring backward compatibility with existing plant instrumentation.

For edge computing and IIoT gateway applications, the TB805 data stream can be aggregated by ABB Edge Computing solutions or third-party industrial edge gateways, enabling cloud-based analytics, predictive maintenance algorithms, and remote asset management — all without disrupting the real-time control loop integrity managed by the AC800M and TB805 combination.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in legacy industrial environments is protocol fragmentation — where field devices, PLCs, drives, and supervisory systems speak different communication languages, creating data silos that prevent plant-wide visibility and coordinated control. The ABB TB805 3BSE008534R1 directly addresses this challenge by providing a standardized ModuleBus communication interface that integrates seamlessly into the 800xA ecosystem, acting as the translation and transport layer between heterogeneous device types.

In plants where older Advant OCS controllers coexist with modern 800xA infrastructure, the TB805 enables a phased migration strategy — allowing engineers to extend the life of existing I/O hardware while progressively upgrading the control network. This approach protects capital investment while delivering the connectivity improvements needed for production line transparency, OEE tracking, and digital twin integration.

Remote monitoring and diagnostics are further enhanced through the TB805’s role in the 800xA Asset Optimization framework. Maintenance teams can access real-time device health data, communication status, and fault diagnostics from any authorized workstation on the network — reducing unplanned downtime and enabling condition-based maintenance scheduling. Alarm rationalization tools within the 800xA platform leverage the TB805’s reliable data feed to ensure that operators receive accurate, timely alerts without alarm flooding.

For system integrators and OEMs designing scalable automation solutions, the TB805 provides a future-proof foundation. Its modular architecture supports incremental I/O expansion without requiring controller replacement, and its compatibility with the full S800 I/O family means that new measurement points, control loops, and safety interlocks can be added as production requirements evolve.

Every ABB TB805 3BSE008534R1 unit supplied by ZYPLC undergoes pre-shipment functional testing to verify communication integrity, module recognition, and bus timing compliance. Units are shipped with full documentation and are backed by a warranty terms confirmed during quotation, with availability confirmed by RFQ availability ensuring rapid deployment for both planned upgrades and emergency replacement scenarios.

Industrial Connectivity FAQ

Q1: What communication protocol does the ABB TB805 3BSE008534R1 use, and is it compatible with third-party systems?
The TB805 uses ABB’s proprietary ModuleBus protocol, which is optimized for deterministic, high-speed communication within the System 800xA and Advant OCS environments. While ModuleBus is an ABB-native protocol, the 800xA platform supports integration with third-party systems via standard fieldbus interfaces such as PROFIBUS DP (CI854), PROFINET, Modbus TCP, and Foundation Fieldbus — allowing the TB805 to serve as part of a broader multi-protocol industrial network architecture.

Q2: How does the TB805 ensure network stability in high-noise industrial environments?
The TB805 is designed to ABB’s industrial-grade hardware standards, incorporating noise immunity measures appropriate for process plant environments. ModuleBus communication is inherently deterministic, meaning that data transmission timing is predictable and not subject to the collision-based delays found in standard Ethernet networks. For installations in electrically noisy environments, proper cabinet grounding, shielded cabling, and adherence to ABB’s ModuleBus installation guidelines are recommended to maintain signal integrity.

Q3: Can the ABB TB805 be used to expand an existing 800xA system without replacing the AC800M controller?
Yes. The TB805 is specifically designed to extend the ModuleBus segment of an existing AC800M controller installation, allowing additional S800 I/O modules to be connected without modifying the controller configuration. This makes it an ideal solution for capacity expansion projects where production requirements have grown beyond the original I/O count, or where new measurement points need to be added to an existing control loop.

Q4: What does the warranty terms confirmed during quotation cover, and what is the lead time for availability confirmed by RFQ units?
The warranty terms confirmed during quotation covers manufacturing defects and functional failures under normal operating conditions, including communication faults attributable to the module hardware. Availability is confirmed via RFQ for same-day or next-day dispatch via DHL or FedEx international express, with typical delivery times of 3–7 business days to most global destinations. Pre-shipment testing is performed on all units to verify ModuleBus communication functionality prior to dispatch.
