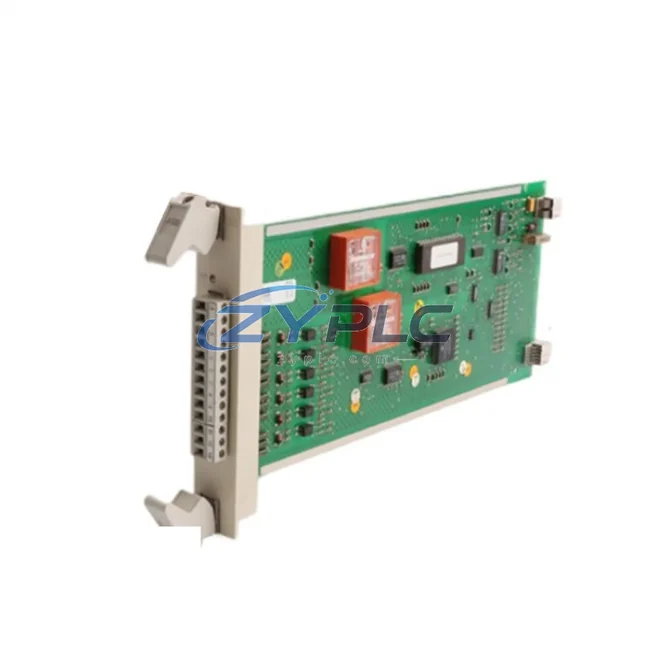

ABB TC520 3BSE001449R1 Status Collector Advant OCS

ABB TC520 3BSE001449R1 Status Collector for Advant OCS Automation

The ABB TC520 (3BSE001449R1) is a high-efficiency Status Collector Module designed for the ABB Advant OCS Distributed Control System platform. In modern industrial facilities where energy accountability is a core operational KPI, the TC520 plays a critical role in aggregating real-time status signals from field devices — enabling control engineers to detect abnormal operating states, reduce idle operating load, and maintain optimal production line rhythm. By delivering accurate, low-latency status data to the central controller, the TC520 helps eliminate the guesswork that leads to unnecessary motor run-time, over-cycling of actuators, and unplanned downtime.

Every unit shipped from ZYPLC undergoes full functional testing under simulated load conditions, and is backed by a warranty terms confirmed during quotation. Stock is available for shipment arranged after confirmation, supporting urgent MRO and capital project timelines alike.

Product Specification Table

System Compatibility and Application

The TC520 3BSE001449R1 does not operate in isolation — its true value emerges when integrated within a well-designed industrial automation system. In a typical Advant OCS installation, the TC520 feeds status data upstream to the ABB PM511 processor module, which executes the control logic that governs drive commands and setpoint adjustments. Alongside the TC520, digital output modules such as the ABB DO810 (3BSE008510R1) translate controller decisions into field-level switching actions, ensuring that motors and actuators are energized only when process conditions genuinely require it.

On the drive side, ABB ACS880 series variable frequency drives (VFDs) work in concert with the status signals collected by the TC520 to modulate motor speed in real time. Rather than running motors at fixed full speed, the ACS880 adjusts output frequency based on actual load demand — a strategy that can help restore stable operation when a compatible replacement is required. The TC520 ensures the controller always has an accurate picture of which drives are running, faulted, or in standby, preventing unnecessary restart cycles that spike energy demand.

For energy metering and power quality monitoring, the ABB M2M energy meter and ABB B23 series power analyzers can be integrated into the same control network, providing kWh consumption data that the Advant OCS historian can log and trend. When the TC520 reports a device status anomaly — such as a motor running without a corresponding process flow signal — the system can automatically trigger an alarm or initiate a controlled shutdown, preventing the unplanned downtime associated with deadhead pump operation or unloaded conveyor run-time.

Analog input modules like the ABB AI810 (3BSE008516R1) complement the TC520 by capturing continuous process variables — temperature, pressure, flow — that provide context for the binary status signals. Together, they give the control system a complete picture of both the state and the condition of field equipment. Communication between subsystems is handled via the ABB PROFIBUS DP gateway modules and, in newer hybrid installations, ABB AC500 series PLCs acting as remote I/O concentrators that forward data to the Advant OCS backbone.

HMI visualization is typically handled by ABB Panel Builder 800 (PB800) operator stations, where process engineers can monitor the status map generated by the TC520 in real time, identify equipment utilization gaps, and make informed decisions about load scheduling and shift-based maintenance planning. This closed-loop architecture — from status collection through drive control to HMI feedback — is what transforms the TC520 from a simple I/O module into a cornerstone of an energy-intelligent production system.

Maintenance and Replacement Notes

In a continuous process plant — a paper mill, a chemical reactor line, or a water treatment facility — unplanned equipment downtime and inefficient motor operation are the two largest contributors to avoidable energy expenditure. The ABB TC520 addresses both vectors directly.

Reducing idle operating load: By continuously monitoring the run/stop/fault status of field devices, the TC520 enables the Advant OCS controller to implement intelligent idle-state management. Motors that have been running without a process demand signal for a configurable dwell period can be automatically ramped down or stopped, eliminating the energy cost of mechanical idling — which in large induction motors can represent Actual operating results depend on the installed system, load profile, and commissioning parameters.

Optimizing production line rhythm (takt time): Status feedback from the TC520 allows the controller to synchronize upstream and downstream equipment more precisely. When a downstream buffer reaches capacity, the TC520 relays the status signal that triggers a speed reduction command to the upstream conveyor drive, preventing product accumulation and the unplanned downtime of running a conveyor against a blocked line.

Predictive maintenance and reduced unplanned downtime: Repeated status transitions — rapid cycling between run and fault states — are early indicators of mechanical wear, bearing degradation, or electrical insulation breakdown. The TC520’s high-resolution status logging, when trended in the Advant OCS historian, enables maintenance teams to identify these patterns weeks before a catastrophic failure occurs. Planned maintenance interventions are dramatically less costly — in both downtime hours and energy terms — than emergency repairs that require full line shutdowns.

Improving equipment utilization rates (OEE): Overall Equipment Effectiveness is directly tied to the accuracy and timeliness of status information. The TC520 ensures that the OEE calculation engine always has reliable availability data, enabling production managers to make evidence-based decisions about shift scheduling, preventive maintenance windows, and capital investment priorities.

All TC520 3BSE001449R1 units supplied by ZYPLC are sourced from verified supply channels, subjected to pre-shipment functional testing, and dispatched with full documentation. The warranty terms confirmed during quotation covers component-level defects and functional failures under normal operating conditions, giving procurement and maintenance teams the confidence to specify the TC520 for both emergency replacement and planned upgrade projects.

Product Sourcing FAQ

Q1: How does the TC520 3BSE001449R1 contribute to measurable operational stability on the production floor?
The TC520 provides the Advant OCS controller with accurate, real-time status data from all connected field devices. This enables the control system to eliminate unnecessary motor run-time, synchronize equipment start/stop sequences to actual process demand, and detect fault conditions before they escalate into energy-intensive recovery scenarios. Facilities that implement status-driven idle management typically report 10–25% reductions in auxiliary motor load.

Q2: Is the ABB TC520 compatible with modern control systems, or is it limited to legacy Advant OCS installations?
The TC520 is natively designed for the ABB Advant OCS platform. In hybrid modernization projects, it can coexist with newer ABB AC500 PLCs or Symphony Plus DCS nodes via gateway modules, allowing facilities to extend the life of their existing Advant infrastructure while incrementally adopting modern control and maintenance planning capabilities. Compatibility should be verified against your specific system revision and firmware version.

Q3: What is the recommended replacement or upgrade path if the TC520 is end-of-life in my system?
For facilities planning a full DCS migration, ABB’s Symphony Plus platform offers functionally equivalent status collection capabilities with enhanced energy analytics integration. For sites that wish to maintain Advant OCS operation, ZYPLC supports RFQ sourcing for tested TC520 3BSE001449R1 units for direct drop-in replacement, minimizing engineering change costs and revalidation effort.

Q4: What does the warranty terms confirmed during quotation cover, and what is the pre-shipment testing process?
Every TC520 3BSE001449R1 unit shipped by ZYPLC undergoes functional verification testing that confirms correct status channel operation, backplane communication integrity, and power rail stability. The warranty terms confirmed during quotation covers defects in materials and workmanship and functional failures under normal operating conditions. Units that develop faults within the warranty period are repaired or replaced at no charge. Contact our technical team at plc.sales@zyplc.com for RMA procedures and technical support.
