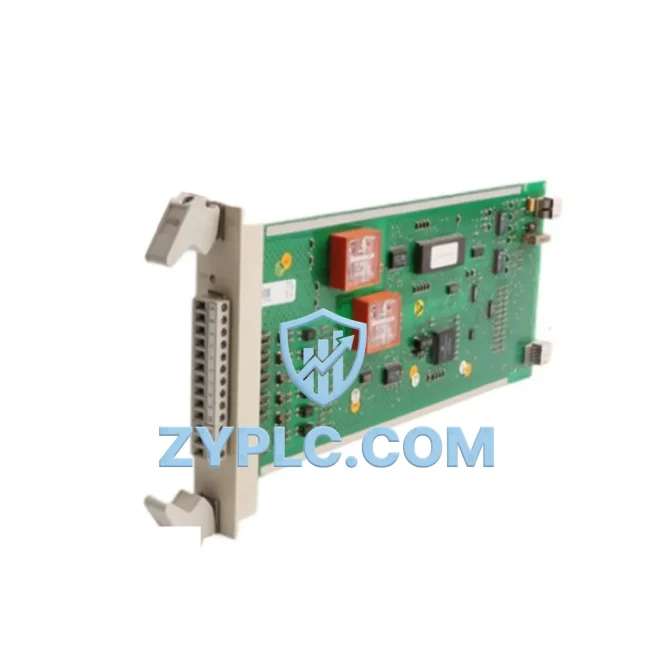

ABB TC520 Industrial Network Interface for AC500 Systems: Bridging the Industrial Data Link

In modern smart factory environments, seamless data flow between field devices and upper-level control systems is no longer optional — it is the foundation of operational efficiency. The ABB TC520 is a high-performance Modbus TCP communication gateway engineered specifically for the ABB AC500 PLC series, delivering reliable protocol conversion, real-time data transmission, and robust network integration across complex industrial topologies. Whether you are connecting field-level sensors and actuators to a SCADA platform, bridging legacy RS-485 Modbus RTU devices into an Ethernet-based control network, or enabling remote diagnostics from an HMI workstation, the TC520 provides the communication backbone your automation architecture demands.

From signal acquisition at the device layer to data aggregation at the supervisory level, the TC520 operates as a transparent and intelligent bridge. It captures process variables from instruments, transmitters, and I/O modules connected via RS-485, converts them into Modbus TCP frames, and delivers structured data packets across standard Ethernet infrastructure to AC500 CPU modules, SCADA servers, and cloud-connected edge gateways. This end-to-end data chain eliminates communication dead zones and ensures that every node in your network — from a remote temperature sensor to a plant-wide MES system — shares a unified, real-time data view.

Network Communication Table

Connected Automation Data Flow

The TC520 sits at the heart of a layered industrial communication architecture. At the field level, process sensors — including pressure transmitters, flow meters, and temperature probes connected via RS-485 — feed raw measurement data into the TC520’s serial port. The gateway performs real-time Modbus RTU-to-TCP conversion and forwards structured data to the ABB AC500 PM591 CPU over Ethernet, where the PLC executes control logic and issues output commands to connected ABB TB5600 remote I/O modules distributed across the production floor.

For motion control applications, the TC520 integrates with ABB ACS880 variable frequency drives, reading speed references, torque feedback, and fault registers via Modbus TCP. Drive status data is simultaneously mirrored to an ABB CP600 HMI panel, giving operators a real-time graphical view of motor performance without requiring dedicated fieldbus hardware. In parallel, the TC520 feeds process data to a SCADA server running on the plant network — platforms such as Ignition or Wonderware can poll the gateway’s Modbus TCP registers directly, enabling trend logging, alarm management, and KPI dashboards without additional middleware.

For distributed architectures, the TC520 works alongside ABB CI590-CS31-HA communication interface modules to extend the AC500 network across multiple production cells. Managed industrial Ethernet switches — such as those from the Hirschmann RS20 series or Moxa EDS-308 series — provide the network backbone, ensuring deterministic packet delivery and VLAN segmentation between control and supervisory traffic. At the edge, an ABB Edge Controller EC2 series or compatible IIoT gateway can aggregate TC520 data streams and forward them to cloud analytics platforms via MQTT or OPC-UA, completing the data journey from field sensor to enterprise dashboard.

In safety-critical zones, the TC520 can be paired with ABB Pluto safety PLCs for read-only data mirroring, allowing safety system status to be visible on the SCADA layer without compromising the integrity of the safety network. Power for the gateway and associated communication modules is typically supplied by ABB CP-E 24/5.0 DIN rail power supplies, ensuring stable 24 VDC operation even in electrically noisy industrial environments.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in industrial automation is the coexistence of legacy serial devices and modern Ethernet-based control systems. Many production facilities operate equipment installed over multiple decades, resulting in a fragmented communication landscape where Modbus RTU instruments cannot natively communicate with Ethernet-connected PLCs or SCADA servers. The ABB TC520 directly addresses this data isolation problem by acting as a transparent protocol bridge — no custom programming, no proprietary middleware, and no replacement of existing field devices required.

Beyond protocol conversion, the TC520 enables production line transparency by making previously invisible process data accessible to supervisory systems. Operators and engineers gain the ability to monitor equipment health, track production metrics, and respond to alarms from centralized HMI or SCADA workstations — eliminating the need for manual data collection rounds on the factory floor. Remote diagnostics capabilities allow maintenance teams to interrogate device registers, check communication status, and identify fault conditions from the control room or even from off-site locations via secure VPN connections.

System expansion is equally straightforward. As production capacity grows or new equipment is added, the TC520’s standard Modbus TCP interface allows additional devices to be integrated into the existing network without architectural redesign. New sensors, drives, or I/O modules can be mapped to available Modbus register addresses and immediately made visible to the SCADA and MES layers. This scalability makes the TC520 a long-term investment for facilities pursuing phased smart factory upgrades, Industry 4.0 connectivity initiatives, or IIoT data collection programs.

Every ABB TC520 unit supplied by ZYPLC undergoes functional communication testing prior to shipment, verifying Modbus TCP/RTU connectivity, register mapping integrity, and Ethernet link stability. Units are held in climate-controlled inventory and are available for immediate dispatch, supported by a 12-month warranty covering manufacturing defects and communication failures under normal operating conditions.

Industrial Connectivity FAQ

Q1: What is the typical communication latency of the ABB TC520 in a Modbus TCP polling cycle?
Under standard network conditions with a 100 Mbps Ethernet link and a polling interval configured at 100 ms, the TC520 delivers end-to-end Modbus TCP response times well under 10 ms for single-register reads. Latency increases proportionally with the number of polled registers and the number of connected Modbus RTU slave devices on the RS-485 bus, but remains within acceptable bounds for most process control and SCADA monitoring applications.

Q2: Is the TC520 compatible with third-party SCADA and HMI platforms beyond the ABB ecosystem?
Yes. Because the TC520 communicates using the open Modbus TCP standard, it is natively compatible with any SCADA, HMI, or data historian platform that supports Modbus TCP client functionality. This includes Ignition by Inductive Automation, Siemens WinCC, Rockwell FactoryTalk View, Wonderware System Platform, and most OPC server software with Modbus TCP drivers. No proprietary configuration tools are required for third-party integration.

Q3: How does the TC520 maintain network stability in electrically noisy industrial environments?
The TC520 is designed to industrial-grade EMC standards, with internal isolation between the RS-485 serial port and the Ethernet interface to prevent ground loop interference and transient voltage coupling. The device supports automatic link recovery and Modbus TCP connection re-establishment after network interruptions, ensuring that temporary cable faults or switch reboots do not result in permanent communication loss. For additional resilience, the TC520 can be deployed behind a managed switch with port-level storm control and VLAN isolation.

Q4: What does the 12-month warranty cover, and how is pre-shipment testing conducted?
The 12-month warranty covers all manufacturing defects, component failures, and communication malfunctions arising under normal operating conditions as specified in the ABB TC520 datasheet. Prior to shipment, each unit is bench-tested for Modbus TCP client/server communication, RS-485 serial connectivity, Ethernet link negotiation, and power supply stability. A test report is available upon request. Warranty claims are processed directly through ZYPLC, with replacement or repair turnaround typically within 5–10 business days.
