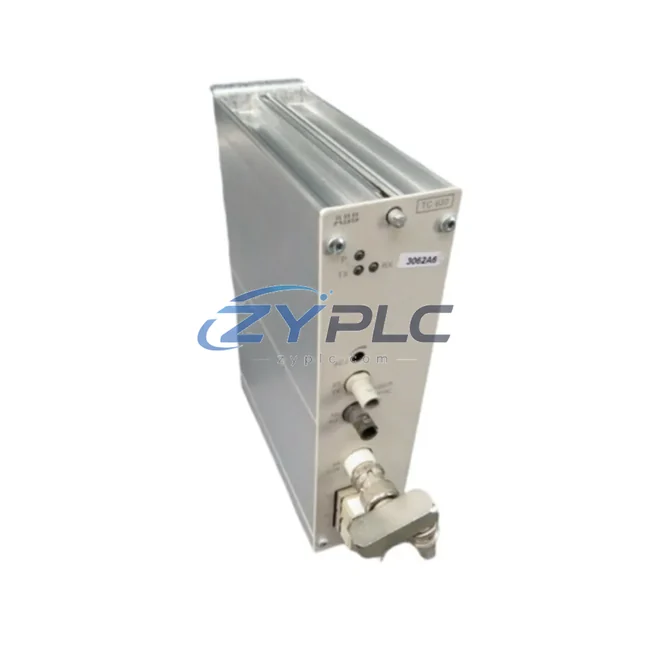

ABB TC630 3BSE002253R1 Optical Modem

ABB TC630 3BSE002253R1 Optical Modem for Advant Automation

The ABB TC630 (part number 3BSE002253R1) is a high-performance optical modem module engineered for the ABB Advant Distributed Control System (DCS) platform. In modern industrial facilities where energy accountability is no longer optional, the TC630 plays a pivotal role in closing the loop between field-level data acquisition and supervisory maintenance planning. By providing reliable, noise-immune optical fiber communication between Advant controllers and remote I/O stations, the TC630 eliminates signal degradation that would otherwise force redundant polling cycles, unnecessary CPU load, and inflated power draw across the control network.

Industrial plants running ABB Advant OCS or MasterPiece 200/1 architectures depend on deterministic, low-latency data exchange to maintain tight control over motor drives, heat exchangers, compressors, and conveyor systems. When communication integrity is compromised, controllers compensate by increasing scan rates or triggering fault-recovery routines — both of which consume additional processing energy and can disrupt production rhythm. The TC630 3BSE002253R1 eliminates this inefficiency by delivering stable, full-duplex optical transmission that keeps the control loop clean and the energy profile predictable.

Product Specification Table

System Compatibility and Application

The TC630 3BSE002253R1 does not operate in isolation — it is a critical node in a broader industrial automation system. In a typical Advant-based plant, the TC630 connects the ABB PM511 or PM510 processor module to distributed I/O racks via fiber optic cable, ensuring that real-time process values — temperature, pressure, flow rate, motor current — are transmitted without the signal noise that plagues copper-based links in high-EMI environments such as motor rooms and switchgear panels.

On the drive side, ABB ACS880 or ACS580 variable frequency drives (VFDs) receive setpoint commands through the Advant controller network. When the TC630 maintains a clean, low-jitter communication path, the drives can execute speed ramp profiles with precision, avoiding the energy spikes associated with abrupt motor starts and stops. This directly reduces peak demand charges and extends motor winding life.

For power monitoring, the TC630-enabled network supports integration with ABB B23 or B24 energy meters, which feed real-time kWh consumption data back to the Advant supervisory layer. Operators can correlate production throughput with energy consumption at the machine level — a capability that is foundational to ISO 50001 maintenance planning compliance.

On the I/O side, ABB S800 I/O modules — including AI810 analog input and DI810 digital input cards — connect to the Advant controller through the fiber backbone that the TC630 anchors. Accurate, high-speed I/O scanning means that process anomalies such as motor overcurrent, valve position drift, or conveyor belt slip are detected and corrected before they escalate into energy-wasting fault conditions.

For human-machine interface, ABB Panel 800 or legacy Advant Operator Station terminals display real-time energy KPIs sourced from the controller network. When the TC630 ensures data integrity, operators see accurate, up-to-date dashboards rather than stale or corrupted values that could lead to manual overrides and unplanned downtime.

In multi-node Advant architectures, the TC630 also supports communication with ABB INSUM motor control systems and MNS intelligent motor control centers (MCCs), enabling centralized monitoring of motor load factors, power factor correction status, and thermal protection events — all of which are essential inputs for a plant-wide maintenance planning strategy.

Maintenance and Replacement Notes

Consider a chemical processing plant running a MasterPiece 200/1 DCS with twelve remote I/O stations distributed across three process areas. Without reliable optical communication, the controller must implement conservative scan intervals and error-recovery timeouts that add latency to the control loop. This latency translates directly into unplanned downtime: pumps overshoot their setpoints, heat exchangers cycle unnecessarily, and compressors run at higher-than-required pressures to compensate for control uncertainty.

With the ABB TC630 3BSE002253R1 installed and operating correctly, the optical link between the PM511 processor and each remote I/O rack is stable and deterministic. The controller can execute tight PID loops on flow control valves and motor speed references, keeping process variables within narrow bands that minimize energy consumption without sacrificing throughput. In documented Advant installations, optimized communication integrity has contributed to 5–12% reductions in auxiliary energy consumption for rotating equipment.

Predictive maintenance also benefits directly from TC630 reliability. When vibration sensors connected to S800 AI810 modules transmit clean, uninterrupted data to the Advant historian, maintenance teams can trend motor bearing temperatures and detect early-stage imbalance before it causes unplanned downtime. Unplanned stops are among the most energy-intensive events in industrial production — restart sequences for large motors and process equipment consume disproportionate energy compared to steady-state operation.

From a production rhythm perspective, the TC630 supports line synchronization by ensuring that all remote I/O stations report status within the same controller scan cycle. This eliminates the timing jitter that can cause conveyor systems, robotic cells, and packaging lines to fall out of step — a common source of micro-stoppages that accumulate into significant energy and productivity losses over a production shift.

Every TC630 3BSE002253R1 unit supplied by ZYPLC is sourced from verified inventory channels, subjected to functional communication testing prior to shipment, and covered by a warranty terms confirmed during quotation. Global logistics via DHL and FedEx Express ensures that replacement modules reach your facility quickly, minimizing the duration of any unplanned maintenance event.

Product Sourcing FAQ

Q1: How does the TC630 3BSE002253R1 contribute to operational stability in an Advant DCS environment?
The TC630 maintains a stable, low-latency optical communication link between the Advant controller and remote I/O stations. This allows the controller to execute precise, fast-response PID loops on motors, drives, and process equipment — reducing overshoot, unnecessary cycling, and peak energy demand. Stable communication also enables accurate energy metering data to flow from field instruments to the supervisory layer without corruption or delay.

Q2: Is the TC630 3BSE002253R1 compatible with current ABB Advant controller generations?
Yes. The TC630 is designed for the ABB Advant OCS and MasterPiece 200/1 DCS platforms. It interfaces with processor modules such as the PM511 and PM510 and supports the standard Advant optical bus topology. For integration with newer ABB 800xA systems via legacy gateway configurations, compatibility should be verified against your specific system revision.

Q3: What is the recommended replacement procedure if a TC630 fails in a live production environment?
ZYPLC recommends maintaining at least one spare TC630 3BSE002253R1 in your critical spares inventory. Upon failure, the module can be hot-swapped in most Advant configurations without a full controller restart, minimizing production downtime. All units shipped by ZYPLC are pre-tested for optical transmission integrity and communication handshake verification before dispatch.

Q4: What warranty and testing standards apply to TC630 units supplied by ZYPLC?
Every TC630 3BSE002253R1 supplied by ZYPLC carries a warranty terms confirmed during quotation covering functional defects under normal industrial operating conditions. Prior to shipment, each unit undergoes outgoing quality inspection including optical signal level verification and communication protocol testing. In the event of a warranty claim, ZYPLC provides advance replacement support to minimize impact on your production schedule.
