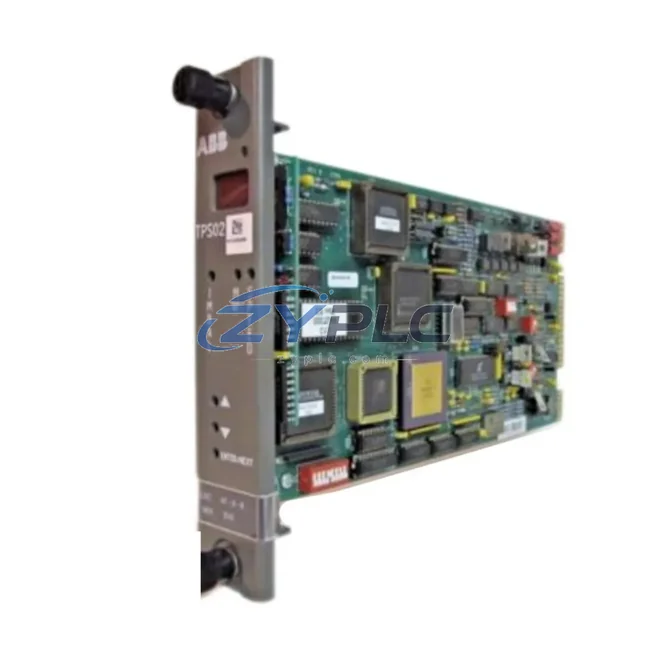

ABB TPS02 Turbine Protection Slave for UNITROL

ABB TPS02 Turbine Protection Slave for UNITROL: Control System and Upstream–Downstream Coordination

The ABB TPS02 Turbine Protection Slave Module is a purpose-engineered component within ABB’s UNITROL excitation and turbine protection platform, designed to operate as a subordinate processing node in distributed protection architectures. Rather than functioning as a standalone device, the TPS02 is conceived as an integral element of a layered control hierarchy — one that spans the control layer, I/O acquisition layer, communication network layer, power supply layer, human-machine interface layer, and the final execution layer. Understanding the TPS02 in this full-system context is essential for engineers responsible for turbine generator protection, excitation system commissioning, and long-term plant maintenance.

In a typical UNITROL-based turbine protection system, the TPS02 slave module works in close coordination with the TPS01 master protection module, sharing real-time signal data across a high-speed internal bus. This master-slave architecture ensures that protection decisions — including over-excitation trips, loss-of-field detection, and stator earth fault responses — are processed with the redundancy and speed required by IEC 60255 and IEEE C37.102 standards. The TPS02 extends the processing capacity of the master unit, enabling the system to handle a broader range of analog and digital input channels without compromising scan cycle times.

At the I/O layer, the TPS02 interfaces directly with current transformers, voltage transformers, and discrete digital inputs sourced from the generator terminal and excitation transformer. These signals are conditioned, digitized, and passed to the protection logic engine, where they are evaluated against configurable thresholds. The module’s signal acquisition architecture supports both single-ended and differential measurement modes, making it compatible with a wide range of generator ratings and transformer configurations found in thermal, hydro, and gas turbine power plants.

From a network and communication perspective, the TPS02 participates in the UNITROL system’s internal communication fabric, which typically employs proprietary ABB fieldbus protocols alongside standard interfaces such as IEC 61850 GOOSE messaging and Modbus RTU for integration with plant-level SCADA systems. This dual-protocol capability ensures that the TPS02 can report protection events, alarm states, and measurement data to both the local HMI panel — often an ABB CP600 or CP635 operator panel — and to remote distributed control system (DCS) platforms such as the ABB System 800xA or ABB AC500 PLC series.

Power supply integrity is a critical consideration in turbine protection architectures, and the TPS02 is designed to operate from the UNITROL system’s redundant 24 VDC or 48 VDC auxiliary power rail. In installations where continuous availability is mandatory, the power supply subsystem typically incorporates ABB’s UPS modules or dedicated redundant power supply units, ensuring that the TPS02 remains operational even during AC supply interruptions. This power architecture aligns with the broader philosophy of the UNITROL platform: no single point of failure should compromise turbine protection availability.

The execution layer — comprising field contactors, excitation thyristor bridges, automatic voltage regulators (AVRs), and generator circuit breakers — receives trip and control commands from the TPS02 via hardwired relay outputs and digital output modules. The TPS02’s output relay contacts are rated for the inductive loads typical of generator protection circuits, and their response times are optimized to meet the clearing time requirements specified in generator protection coordination studies. In multi-unit power stations, the TPS02 can be configured to participate in inter-unit bus transfer schemes, coordinating with other protection relays and the plant’s busbar protection system.

For system integrators and commissioning engineers, the TPS02 offers a structured parameterization interface accessible through ABB’s UNITROL configuration software. Protection settings, including pickup levels, time delays, and blocking logic, can be defined and downloaded without interrupting the module’s monitoring functions — a feature that significantly reduces commissioning time and minimizes the risk of protection gaps during parameter updates. The module also supports event logging and fault recording, storing time-stamped records of protection operations that are invaluable for post-fault analysis and regulatory reporting.

Long-term maintenance of the TPS02 within a UNITROL architecture benefits from ABB’s modular design philosophy. The module can be replaced without disturbing adjacent modules in the rack, and its firmware can be updated in the field using standard ABB service tools. Spare parts availability is supported by ZYPLC’s inventory program, which supports RFQ sourcing for TPS02 units alongside complementary components such as the TPS01 master module, UNITROL 6000 AVR boards, ABB SDCS-CON-4 control boards, and ABB SDCS-POW-4 power supply boards — ensuring that plant maintenance teams can source replacement modules quickly and avoid extended turbine outages.

All TPS02 units supplied by ZYPLC are covered by a warranty terms confirmed during quotation, with full system integration support to assist engineers in verifying module compatibility, configuring protection settings, and validating system behavior within the existing UNITROL architecture. This warranty and integration support framework reflects ZYPLC’s commitment to supplying not just components, but complete system-compatible solutions for industrial power generation and turbine protection applications.

Product Specification Table

System Compatibility Notes

The TPS02 achieves its full operational value only when considered within the coordinated architecture of the UNITROL protection platform. At the control layer, the TPS01 Master Protection Module serves as the primary decision-making unit, with the TPS02 extending its I/O capacity and processing bandwidth. The UNITROL 6000 Automatic Voltage Regulator (AVR) board governs excitation current regulation and communicates setpoint data to the protection layer, ensuring that protection thresholds are dynamically adjusted in response to generator operating conditions.

Power supply stability for the entire rack is maintained by the SDCS-POW-4 Power Supply Board, which provides regulated DC rails to all modules including the TPS02. The SDCS-CON-4 Control Board manages the thyristor firing logic for the excitation converter, and its status signals are monitored by the TPS02 as part of the overall excitation system health assessment. For plants requiring communication with higher-level automation systems, the ABB CI854 PROFIBUS Communication Interface or equivalent gateway modules bridge the UNITROL platform to the plant DCS, enabling the TPS02’s protection data to be integrated into the ABB System 800xA process control environment.

At the human-machine interface layer, the ABB CP635 Operator Panel provides local visualization of protection status, alarm annunciation, and event logs sourced from the TPS02 and TPS01 modules. In redundant architectures, a secondary UNITROL rack — mirroring the primary rack’s module configuration including a second TPS02 — ensures bumpless switchover in the event of a primary module failure. Terminal modules and marshalling components, such as ABB SACE terminal blocks and surge protection devices, complete the field wiring interface between the TPS02’s I/O connectors and the generator protection CT/VT circuits.

Industrial Application Notes

The TPS02 finds application across a broad spectrum of industrial power generation and process control environments. In thermal power plants, the module is deployed within the turbine-generator unit protection panel, where it monitors stator current, rotor current, and terminal voltage to detect abnormal excitation conditions before they escalate to equipment damage. In hydroelectric stations, the TPS02’s fast scan cycle and deterministic response time are critical for protecting generators that may experience rapid load changes due to water flow variations.

In petrochemical and refinery facilities, where generator reliability directly impacts process continuity, the TPS02 is integrated into the plant’s safety instrumented system (SIS) architecture, providing hardwired trip outputs that interface with the emergency shutdown (ESD) system. Water treatment and pumping stations operating large motor-generator sets benefit from the TPS02’s ability to detect loss-of-field and negative sequence conditions that are common in variable-load pumping applications. In mining and metallurgical operations, where power quality is often compromised by large variable-speed drives and arc furnace loads, the TPS02’s robust signal conditioning ensures reliable protection even in electrically noisy environments.

For packaging and continuous process production lines powered by on-site generation, the TPS02 supports the integration of generator protection data into the line’s overall automation architecture, enabling coordinated load shedding and generator protection responses that minimize production downtime during electrical disturbances.

Product Compatibility FAQ

Q1: Is the TPS02 compatible with existing UNITROL 5000 and UNITROL 6000 system racks, and can it be added to an operational system without a full shutdown?
The TPS02 is designed for integration within the UNITROL platform family, including both UNITROL 5000 and UNITROL 6000 rack configurations. Module insertion into a powered rack should follow ABB’s hot-swap procedures as documented in the UNITROL system engineering manual. In most cases, the TPS02 can be installed and parameterized during a planned maintenance window without requiring a full system shutdown, provided that the protection functions handled by the module are temporarily covered by alternative means during the installation period. ZYPLC’s system integration support team can assist with pre-installation compatibility verification and commissioning planning.

Q2: How does the TPS02 behave in a redundant UNITROL architecture, and what happens if the master TPS01 module fails?
In a redundant UNITROL architecture, the TPS02 slave module continuously synchronizes its internal state with the TPS01 master. If the master module fails or is removed, the system’s redundancy management logic — implemented at the rack controller level — initiates a controlled switchover to the standby rack. The TPS02 in the standby rack assumes active monitoring duties without interruption to protection coverage. This switchover behavior is configurable through the UNITROL parameterization software, and ZYPLC recommends verifying switchover timing and alarm annunciation as part of the annual protection system maintenance test.

Q3: What does the warranty terms confirmed during quotation cover for the TPS02, and what support is available for long-term spare parts supply?
ZYPLC’s warranty terms confirmed during quotation for the TPS02 covers manufacturing defects, component failures under normal operating conditions, and firmware integrity. Warranty claims are processed through ZYPLC’s technical support channel, with replacement units dispatched from stock to minimize plant downtime. For long-term spare parts planning, ZYPLC maintains a dedicated inventory of TPS02 modules and complementary UNITROL system components, supporting maintenance contracts and multi-year supply agreements. Engineers are encouraged to contact ZYPLC’s sales team to discuss volume pricing, consignment stock arrangements, and integration support packages tailored to their plant’s maintenance strategy.
