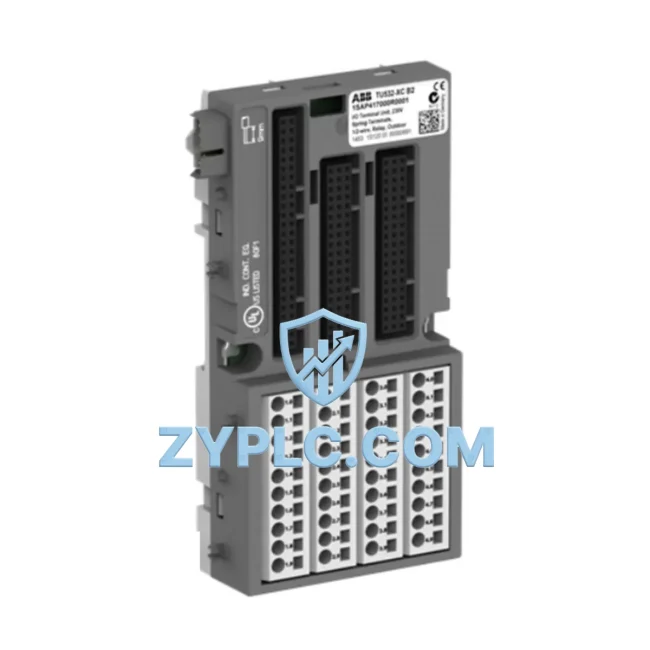

ABB TU532-XC 1SAP417000R0001 Industrial Network Interface for AC500 Systems

ABB TU532-XC 1SAP417000R0001 Industrial Network Interface for AC500 Systems: Bridging the Industrial Data Link

The ABB TU532-XC (1SAP417000R0001) is a high-performance terminal unit designed for seamless integration within the ABB AC500 PLC platform — one of the most widely deployed modular control architectures in modern smart factory environments. As a relay output terminal unit, the TU532-XC serves as a critical node in the industrial data chain, connecting field-level devices to upper-level control and monitoring systems with precision, reliability, and protocol transparency.

In today’s connected manufacturing landscape, the ability to move data reliably from sensors and actuators through PLCs, remote I/O modules, HMI panels, SCADA systems, and edge gateways is not optional — it is foundational. The TU532-XC fulfills this role by providing a robust, electrically isolated relay output interface that supports the AC500’s modular I/O expansion architecture, enabling engineers to build scalable, fault-tolerant automation networks across diverse industrial verticals including energy, water treatment, building automation, and discrete manufacturing.

Network Communication Table

Connected Automation Data Flow

Understanding the TU532-XC’s role requires viewing it within the full industrial data flow. In a typical smart factory deployment, field-level signals originate from sensors — pressure transmitters, temperature probes, proximity switches, and flow meters — and are wired directly into terminal units like the TU532-XC. The TU532-XC mates with the ABB SM532 signal module, which handles the relay output logic and passes digital state data across the AC500 S500 I/O backplane to the CPU module.

The AC500 CPU — such as the ABB PM573-ETH or PM591-ETH — processes this I/O data in real time and communicates upstream via industrial Ethernet protocols including PROFINET and EtherNet/IP. This allows SCADA platforms and MES systems to receive live process data with sub-100ms cycle times. For sites requiring fieldbus connectivity, the AC500 supports PROFIBUS DP and CANopen communication adapters, enabling the TU532-XC’s relay outputs to be monitored and controlled from legacy DCS environments without protocol conversion overhead.

In distributed architectures, the AC500 system can be extended using ABB CI502-PNIO or CI504-PNIO PROFINET communication interface modules, allowing remote I/O racks — each populated with terminal units like the TU532-XC — to be placed close to field devices while maintaining high-speed data exchange with the central PLC over standard industrial Ethernet infrastructure. This topology dramatically reduces wiring costs and improves signal integrity in large-scale installations.

HMI panels such as the ABB CP635 or third-party SCADA clients connect to the AC500 CPU via Modbus TCP or OPC UA, pulling real-time relay status, alarm states, and diagnostic data from the I/O modules. The TU532-XC’s relay outputs can trigger physical actuators — motor starters, solenoid valves, warning lights — while simultaneously reporting their switching state back through the data chain to the SCADA dashboard, enabling operators to verify actuation without leaving the control room.

For edge computing applications, the AC500 platform supports integration with ABB Ability™ Edge gateways and third-party IIoT edge devices, enabling the TU532-XC’s relay data to be forwarded to cloud analytics platforms for predictive maintenance, energy monitoring, and OEE calculation. Variable frequency drives such as the ABB ACS880 series can also be networked into the same AC500 control architecture via PROFIBUS or PROFINET, with the TU532-XC providing hardwired interlock and safety relay outputs that complement the drive’s digital I/O for coordinated motion control sequences.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in industrial automation is data isolation — the condition where field devices, PLCs, and upper-level systems operate in silos, unable to share process data in real time. The TU532-XC directly addresses this challenge by serving as a standardized, protocol-agnostic relay output interface within the AC500 ecosystem, which natively supports the broadest range of industrial communication protocols available on any mid-range PLC platform.

Sites running mixed-protocol environments — where legacy Modbus RTU devices coexist with modern PROFINET controllers and cloud-connected SCADA systems — benefit from the AC500’s multi-protocol CPU architecture. The TU532-XC’s relay outputs can be mapped to any protocol-level data object, allowing a single physical output to be commanded by a Modbus register, a PROFINET process data word, or an OPC UA node simultaneously, depending on the system configuration. This eliminates the need for standalone protocol converters or gateway devices that introduce latency and single points of failure.

Remote monitoring and diagnostics are equally critical. The TU532-XC supports the AC500’s integrated diagnostic framework, which reports module health, relay cycle counts, and communication errors directly to the CPU’s diagnostic buffer. This data is accessible via the SCADA system or a remote engineering workstation running ABB Automation Builder software, enabling maintenance teams to identify failing relay contacts or wiring faults before they cause unplanned downtime. For geographically distributed sites, remote VPN access to the AC500 CPU allows engineers to perform live diagnostics and parameter adjustments without on-site travel.

Production line transparency — the ability to see every actuator state, every relay switching event, and every communication fault in real time — is achieved by integrating the TU532-XC into a well-structured AC500 I/O network. Engineers can configure alarm thresholds, relay output forcing, and diagnostic reporting directly in Automation Builder, with changes propagated to the field device layer within one PLC scan cycle. This level of transparency supports lean manufacturing initiatives, reduces mean time to repair (MTTR), and provides the audit trail required for ISO and IEC compliance in regulated industries.

System expansion is straightforward: additional TU532-XC terminal units and SM532 signal modules can be added to the S500 I/O rack without modifying the existing network topology or reconfiguring upstream communication parameters. The AC500’s modular architecture supports up to 10 I/O modules per local rack and unlimited remote I/O stations via fieldbus, making the TU532-XC a future-proof investment for growing automation systems.

Industrial Connectivity FAQ

Q1: What communication protocols does the ABB TU532-XC support in an AC500 system?
The TU532-XC itself is a terminal unit that interfaces with the SM532 signal module on the AC500 S500 I/O backplane. Protocol support — including PROFIBUS DP, PROFINET, Modbus RTU/TCP, EtherNet/IP, and CANopen — is determined by the AC500 CPU and communication adapter modules installed in the same rack. This architecture allows the TU532-XC’s relay outputs to be accessible across any protocol supported by the AC500 platform without hardware changes to the terminal unit itself.

Q2: How does the TU532-XC ensure network stability and minimize communication latency?
The TU532-XC communicates with the AC500 CPU via the high-speed S500 internal I/O bus, which operates independently of the external fieldbus or Ethernet network. This means relay output updates are processed within the PLC scan cycle (typically 1–10ms) regardless of external network load. The XC variant’s extended temperature and vibration ratings further ensure stable operation in harsh industrial environments where network instability is often caused by environmental stress on hardware.

Q3: Can the TU532-XC be integrated into an existing SCADA or HMI system without replacing the current PLC?
Yes. If the existing PLC supports the AC500 S500 I/O bus or if the site is migrating to an AC500 CPU, the TU532-XC can be added to the I/O rack and immediately mapped to SCADA tags via the CPU’s communication interface. For brownfield sites, the AC500’s multi-protocol support allows the TU532-XC’s relay data to be exposed to legacy SCADA systems via Modbus TCP without requiring SCADA software reconfiguration.

Q4: What does the 12-month warranty cover, and how is pre-shipment testing performed?
Every ABB TU532-XC unit supplied by ZYPLC is covered by a 12-month warranty against manufacturing defects and functional failures. Prior to shipment, each unit undergoes functional verification including relay output continuity testing, backplane connector inspection, and visual quality control. Units are shipped in original or equivalent protective packaging to prevent transit damage. Warranty claims are processed directly through ZYPLC’s technical support team, with replacement or repair turnaround typically within 5–7 business days.
