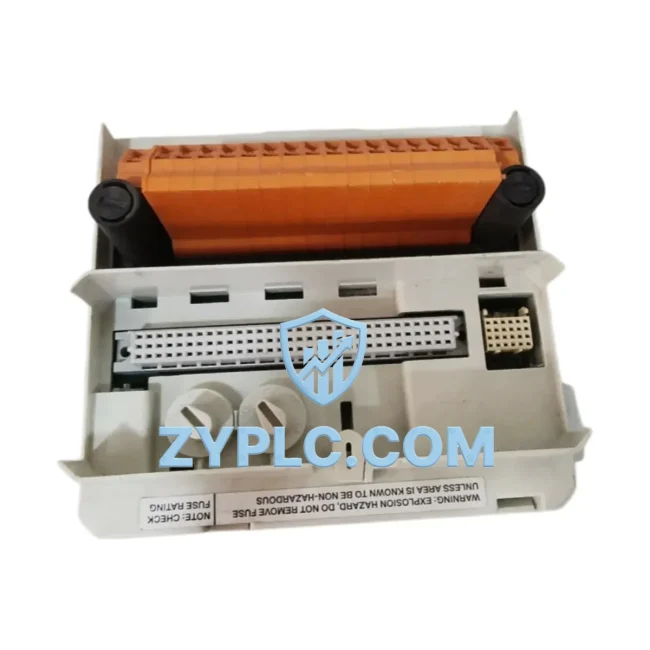

ABB TU833 3BSE038726R1 Termination Unit for S800 Architecture

ABB TU833 3BSE038726R1 Termination Unit for S800 Architecture: Control System Integration and Upstream-Downstream Coordination

The ABB TU833 (3BSE038726R1) is a field-proven termination unit engineered for deployment within ABB’s S800 I/O system architecture. Rather than functioning as a standalone component, the TU833 occupies a critical structural position in the I/O layer of distributed control systems built around the AC800M controller platform. Its primary role is to provide a reliable, standardized interface between field wiring and the S800 I/O modules, ensuring signal integrity, simplified commissioning, and long-term maintainability across complex industrial installations.

In a fully realized control system architecture, the TU833 connects directly to S800 I/O modules such as the AI810, AO810, DI810, and DO810 series, forming the physical and electrical backbone of the field I/O layer. The termination unit accepts field cable connections and routes signals cleanly to the corresponding I/O module, eliminating the need for intermediate terminal blocks and reducing wiring complexity in the control cabinet. This direct-mount design is fundamental to the S800 system’s modular philosophy, where each layer—from the controller bus to the field device—is engineered for predictable, repeatable integration.

At the control layer, the AC800M controller (such as the PM861, PM864, or PM866 processor module) communicates with the S800 I/O subsystem via the ModuleBus or PROFIBUS interface, depending on system configuration. The TU833 sits at the terminal end of this signal chain, ensuring that analog and digital signals from field instruments, actuators, and sensors are correctly terminated and presented to the I/O module without ground loops, impedance mismatches, or wiring errors. This architecture supports both centralized and distributed I/O topologies, making the TU833 suitable for use in both compact control panels and large-scale distributed installations.

From a redundancy and availability perspective, the TU833 supports hot-swap capability when used in conjunction with compatible S800 I/O modules, allowing field engineers to replace I/O modules during live operation without interrupting process control. This is particularly valuable in continuous process industries such as oil and gas, chemical processing, and power generation, where unplanned shutdowns carry significant operational and financial consequences. The termination unit’s mechanical design ensures that field wiring remains undisturbed during module replacement, preserving signal continuity and reducing the risk of wiring errors during maintenance.

The TU833 is also compatible with the TB820 ModuleBus Modem and CI854 PROFIBUS DP communication interface modules, enabling seamless integration into multi-protocol control architectures. In systems where the S800 I/O is deployed as a remote I/O station connected to a central AC800M controller via PROFIBUS DP, the TU833 provides the same reliable field termination function, ensuring consistent performance regardless of the communication topology. This flexibility makes the TU833 a preferred choice for system integrators and plant engineers who need to standardize their I/O infrastructure across multiple process units or plant areas.

In the power layer, the S800 I/O system is typically powered by the SD821 or SD822 power supply modules, which provide regulated 24 VDC to the I/O bus. The TU833 is designed to operate reliably within this power envelope, with low self-heating and stable electrical characteristics across the full industrial temperature range. This ensures that the termination unit performs consistently in both climate-controlled control rooms and harsh field enclosures exposed to temperature cycling, vibration, and humidity.

For human-machine interface integration, the TU833-equipped S800 I/O system interfaces with ABB’s 800xA DCS platform, where I/O signals are mapped to process graphics, alarm management systems, and historian databases. The clean signal termination provided by the TU833 ensures that analog signals maintain their accuracy through the entire signal chain, from the field transmitter to the operator workstation display. This end-to-end signal integrity is essential for process optimization, regulatory compliance, and safety system validation.

From an engineering and commissioning perspective, the TU833’s standardized terminal layout and clear labeling conventions reduce wiring time and minimize the risk of cross-wiring errors during initial installation. The module’s compatibility with ABB’s standard S800 I/O documentation and engineering tools, including the Control Builder M software environment, means that I/O assignments, signal scaling, and diagnostic configurations can be managed centrally without requiring physical access to the termination unit after initial wiring.

Long-term maintenance and spare parts management are simplified by the TU833’s position within ABB’s established S800 product family. As a widely deployed component in global process automation installations, the TU833 is supported by a mature supply chain, with consistent availability from authorized distributors and specialist industrial automation suppliers. Maintaining a stock of TU833 units alongside compatible I/O modules such as the AI810, DI810, and AO810 ensures that plant maintenance teams can respond rapidly to unplanned failures without extended lead times or emergency procurement costs.

All TU833 3BSE038726R1 units supplied by ZYPLC are covered by a 12-Month Warranty, with each unit tested prior to dispatch to verify electrical continuity, terminal integrity, and mechanical fit. This warranty coverage, combined with ZYPLC’s global logistics capability, ensures that replacement units reach customers quickly, minimizing downtime and supporting the long-term reliability of their control system infrastructure.

Architecture Specification Table

Coordinated Control System Design

The TU833 3BSE038726R1 achieves its full value when deployed as part of a coordinated S800 I/O system. A typical architecture pairs the TU833 with the AI810 analog input module for 4–20 mA process signal acquisition, the DI810 digital input module for discrete status monitoring, and the AO810 analog output module for control signal transmission to field actuators. In redundant configurations, the DO810 digital output module is used alongside the TU833 to drive solenoid valves, motor starters, and relay outputs with high reliability.

At the communication layer, the CI854 PROFIBUS DP interface module connects the S800 I/O cluster to the AC800M controller backplane, while the TB820 ModuleBus Modem extends the I/O bus over longer distances within the same control cabinet or to remote I/O panels. Power distribution to the S800 I/O system is managed by the SD821 24 VDC power supply module, which provides stable, regulated power to all connected I/O modules and termination units including the TU833.

For operator interface, the S800 I/O system integrates with ABB’s 800xA DCS platform, where signals terminated at the TU833 are mapped to process displays, trend historians, and alarm management systems. In safety-instrumented system applications, the TU833 is used alongside S800 I/O safety modules to provide SIL-rated signal termination, ensuring that safety logic inputs and outputs are correctly wired and terminated in accordance with IEC 61511 requirements. This comprehensive ecosystem of compatible modules makes the TU833 a central component in any ABB-based control system architecture.

Application in Layered Automation Systems

The TU833 3BSE038726R1 is deployed across a wide range of industrial automation applications where reliable field signal termination is essential to system performance. In power generation and transmission facilities, the TU833 is used to terminate analog and digital signals from turbine control systems, generator protection relays, and transformer monitoring equipment, providing a clean interface between high-voltage field devices and the AC800M-based control system.

In oil and gas processing plants, the TU833 supports the termination of signals from pressure transmitters, flow meters, temperature sensors, and valve positioners across both onshore and offshore installations. Its compatibility with PROFIBUS DP communication enables integration into large-scale distributed control architectures where hundreds of I/O points are managed from a central control room. In water and wastewater treatment facilities, the TU833 is used in pump control panels, chemical dosing systems, and SCADA-connected remote I/O stations, where its robust mechanical design and reliable electrical performance ensure continuous operation in humid, chemically aggressive environments.

For metallurgical and mining applications, the TU833 provides reliable signal termination in high-vibration, high-temperature environments typical of smelting furnaces, ore processing lines, and conveyor control systems. In pharmaceutical and food processing plants, the TU833 supports GMP-compliant control system architectures where signal traceability, documentation, and validation are mandatory requirements. Across all these applications, the TU833’s standardized design, broad module compatibility, and 12-Month Warranty make it a trusted component for both new installations and system upgrades.

Architecture Engineering FAQ

Q1: Is the TU833 3BSE038726R1 compatible with all S800 I/O modules, and can it be used in both new and retrofit installations?
The TU833 is designed for use with the full range of ABB S800 I/O modules, including the AI810, AO810, DI810, and DO810 series. It is mechanically and electrically compatible with both new S800 I/O installations and retrofit projects where existing S800 infrastructure is being expanded or upgraded. The TU833’s standardized terminal layout ensures that field wiring from legacy installations can be reconnected without modification, simplifying the upgrade process and reducing commissioning time.

Q2: How does the TU833 support system redundancy and hot-swap maintenance in continuous process environments?
The TU833 is designed to support hot-swap replacement of compatible S800 I/O modules without interrupting field wiring connections. In redundant I/O configurations, the termination unit maintains field cable connections while the I/O module is removed and replaced, ensuring that process signals are not disrupted during maintenance. This capability is essential in continuous process industries where planned and unplanned maintenance must be performed without process shutdowns. The TU833’s robust terminal design ensures that field wiring remains secure and correctly terminated throughout the module replacement procedure.

Q3: What does the 12-Month Warranty cover, and how does ZYPLC support long-term spare parts availability for the TU833?
All TU833 3BSE038726R1 units supplied by ZYPLC are covered by a 12-Month Warranty from the date of dispatch, covering manufacturing defects, electrical failures, and mechanical integrity issues under normal operating conditions. Each unit is tested prior to shipment to verify terminal continuity and module compatibility. ZYPLC maintains stock of TU833 units and compatible S800 I/O modules to support rapid replacement requirements, with global logistics capability ensuring fast delivery to customers in Asia, Europe, the Middle East, and the Americas. For long-term maintenance planning, ZYPLC can provide multi-unit supply agreements to ensure consistent spare parts availability throughout the operational life of your control system.
