ABB TU891 3BSC840157R1 Termination Unit

ABB TU891 3BSC840157R1 Termination Unit: Replacement and Sourcing Information for AC 800M Automation

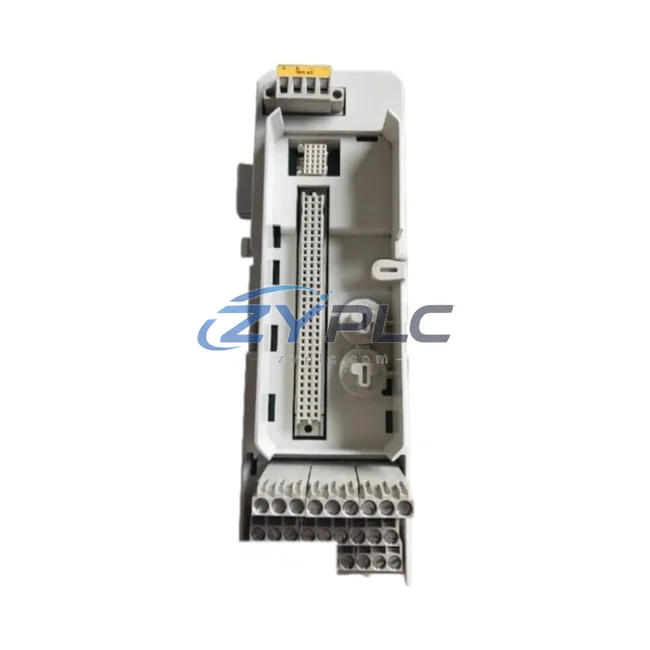

The ABB TU891 (3BSC840157R1) is a high-performance termination unit engineered for the ABB AC 800M controller platform — one of the most widely deployed distributed control systems in process and discrete manufacturing. Designed to serve as the critical interface between field wiring and the controller’s I/O modules, the TU891 plays a foundational role in reducing signal loss, minimizing wiring errors, and ensuring that every data point from the production floor reaches the control layer with full integrity. In energy-intensive industrial environments, this precision directly translates into measurable reductions in wasted power, unplanned downtime, and maintenance overhead.

Unlike generic termination solutions, the TU891 is purpose-built for the AC 800M ecosystem, ensuring seamless compatibility with ABB’s S800 I/O modules and the broader Symphony Plus and 800xA control architecture. When field instruments — including flow transmitters, pressure sensors, temperature elements, and motor feedback devices — are correctly terminated through the TU891, the controller receives clean, noise-free signals that enable accurate PID loop execution, precise variable frequency drive (VFD) commands, and reliable servo positioning feedback. The downstream effect is a production line that runs closer to its designed efficiency curve, consuming only the energy it needs.

Product Specification Table

System Compatibility and Application

In a fully industrial Automation architecture, the TU891 termination unit sits at the convergence point between field instrumentation and the AC 800M’s processing core. Its role becomes especially critical when the control system is tasked with managing energy-intensive assets such as large induction motors driven by ABB ACS880 variable frequency drives, or precision motion axes controlled by ABB MicroFlex e190 servo drives. When field wiring is properly terminated and shielded through the TU891, the analog input modules — such as the AI810 or AI820 — receive accurate 4–20 mA or 0–10 V signals from energy meters, flow sensors, and temperature transmitters without the distortion that leads to overcorrection in control loops.

The AC 800M controller, paired with the TU891 and S800 I/O modules, communicates over PROFIBUS DP or FOUNDATION Fieldbus H1 to coordinate with field devices across the plant. In installations where the ABB PM866 or PM891 processor modules are deployed, the TU891 ensures that the high-speed data exchange between the processor and its I/O base units remains stable under electrical noise conditions common in motor control centers and switchgear rooms. This stability is not merely a reliability concern — it is an energy concern. A controller that receives corrupted feedback from a motor’s current transformer will issue incorrect speed commands to the connected ACS580 drive, causing the motor to run outside its optimal efficiency band and consume excess power.

For plants using ABB’s System 800xA or Symphony Plus SCADA layer, the TU891 supports the data pipeline that feeds real-time energy dashboards. Power consumption data collected via ABB M2M energy meters or third-party Modbus-compatible power analyzers flows through the S800 analog input chain — properly terminated at the TU891 — into the historian and maintenance planning modules. This enables operators to identify unplanned downtime at the equipment level, schedule maintenance before efficiency degrades, and benchmark actual versus theoretical operating load per production unit.

In cabinet layouts where space and heat dissipation are concerns, the TU891’s compact form factor allows dense I/O configurations without compromising airflow or adding thermal load to the control enclosure — a subtle but real contribution to the overall energy budget of the control room infrastructure.

Maintenance and Replacement Notes

Consider a continuous process plant — a chemical reactor line, a paper machine, or a water treatment facility — where dozens of control loops govern pump speeds, valve positions, heater outputs, and compressor loads simultaneously. In such environments, the quality of field signal termination directly determines how tightly each loop can be tuned. A poorly terminated analog input introduces noise that forces engineers to detune PID controllers, widening the control band and allowing process variables to drift further from setpoint. The result is a process that consumes more energy than necessary: pumps that run faster than required, heaters that cycle more frequently, compressors that load and unload inefficiently.

The ABB TU891, by providing a clean, mechanically secure, and electrically correct termination point for field cables, enables tighter loop tuning. Tighter loops mean the AC 800M can issue more precise commands to downstream actuators — including the ACS880 drives managing large centrifugal pumps or the ACS310 drives on conveyor systems — keeping motor operating points closer to their peak efficiency curves. Over a production year, the cumulative operational stability from this improvement in control precision can be substantial, particularly in facilities where motor loads represent 60–70% of total electrical consumption.

Beyond energy, the TU891 contributes to reduced unplanned downtime. Loose or incorrectly terminated field wiring is one of the most common root causes of intermittent I/O faults in DCS systems. Each unplanned stop on a production line carries an energy penalty: the energy consumed during restart transients, the waste generated by off-spec product during stabilization, and the energy embedded in scrapped material. By ensuring that every field connection is correctly made and mechanically retained, the TU891 reduces the frequency of these events. Maintenance teams can focus on scheduled, predictive interventions rather than reactive fault-finding — a shift that further reduces the energy and labor cost of keeping the plant running.

All units supplied by ZYPLC undergo outgoing functional testing to verify signal path continuity and mechanical integrity before shipment. Each TU891 3BSC840157R1 is covered by a warranty terms confirmed during quotation, and stock is maintained to support rapid dispatch for both planned maintenance projects and emergency replacement requirements.

Product Sourcing FAQ

Q1: How does the TU891 contribute to operational stability in an AC 800M system?
The TU891 ensures clean, accurate signal termination between field instruments and S800 I/O modules. Accurate signals allow the AC 800M to execute tighter control loops, which in turn enables variable frequency drives and servo systems to operate motors at their optimal efficiency points — directly reducing unplanned downtime risk.

Q2: Is the TU891 3BSC840157R1 compatible with all AC 800M I/O configurations?
The TU891 is designed for use within the ABB S800 I/O system as part of the AC 800M platform. It is compatible with standard S800 analog and digital I/O modules. For specific module pairing requirements, refer to the ABB AC 800M Hardware Configuration manual or contact our technical team for confirmation before ordering.

Q3: Can the TU891 replace an existing termination unit without reconfiguring the controller?
In most cases, yes. The TU891 is a hardware-layer component; replacing a like-for-like termination unit does not require changes to the AC 800M software configuration or I/O channel assignments. However, field wiring should be re-terminated carefully and the I/O channel verified after replacement to confirm signal integrity before returning the loop to automatic control.

Q4: What testing is performed before shipment, and what does the warranty terms confirmed during quotation cover?
Every TU891 unit shipped by ZYPLC undergoes outgoing inspection including visual examination and signal path continuity verification. The warranty terms confirmed during quotation covers defects in materials and workmanship under normal operating conditions. Units that fail during the warranty period are replaced or repaired at no additional cost. Contact plc.sales@zyplc.com for warranty claims or pre-shipment test reports.
