ABB TU921S 3KDE175111L9210 Redundant Termination Unit for S900 Systems

ABB TU921S 3KDE175111L9210: Industrial Data Link and Smart Factory Connectivity for S900 Systems

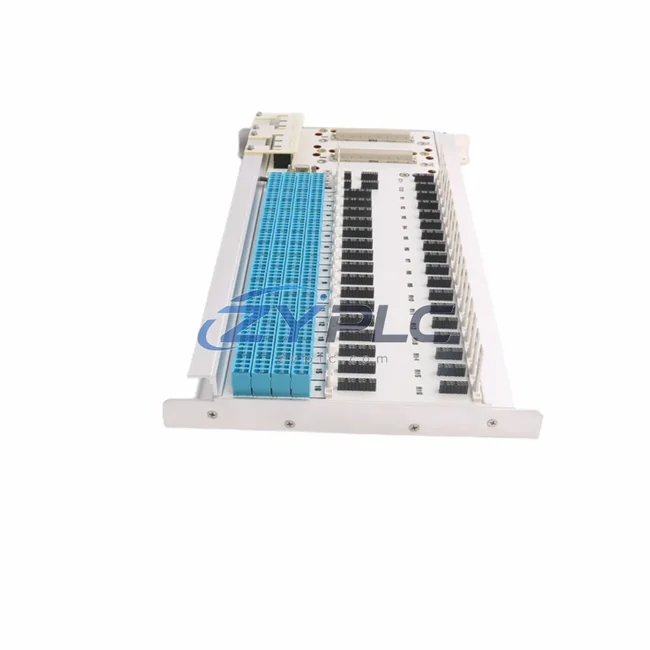

The ABB TU921S (3KDE175111L9210) is a high-reliability Redundant Termination Unit engineered for ABB’s S900 Remote I/O system, purpose-built to sustain uninterrupted data flow across Profibus DP field networks in demanding industrial environments. As a critical node in the automation data chain, the TU921S bridges field-level devices — including sensors, actuators, and transmitters — with PLC controllers, DCS platforms, SCADA systems, and HMI stations, ensuring that process data reaches the control layer with zero tolerance for communication loss.

In smart factory architectures where data continuity is non-negotiable, the TU921S delivers redundant termination capability that eliminates single points of failure on the Profibus DP segment. Whether deployed in chemical processing, oil and gas, power generation, or discrete manufacturing, this termination unit sustains the integrity of the fieldbus backbone that connects remote I/O modules to the central control system.

Compatibility & Integration Notes

Connected Automation Data Flow

In a typical S900-based control architecture, the ABB TU921S 3KDE175111L9210 sits at the physical termination point of the Profibus DP segment, ensuring that signal reflections are suppressed and bus impedance is correctly matched — a prerequisite for stable, high-speed data exchange across the entire fieldbus network. The data flow begins at the sensor and actuator layer, where field instruments such as pressure transmitters, flow meters, and temperature sensors feed real-time process values into the S900 Remote I/O modules.

These I/O modules — including the ABB AI910S analog input module and DI910S digital input module — collect field signals and pass them upstream through the Profibus DP bus. The TU921S ensures that this bus segment remains electrically stable at both ends, preventing data corruption that could otherwise cause false alarms or missed process events. The ABB CI920S Profibus DP communication interface module acts as the gateway between the S900 I/O station and the host DCS or PLC, translating fieldbus telegrams into process data objects that the control system can act upon.

At the controller level, ABB’s AC800M PLC or System 800xA DCS receives the structured process data and executes control logic — adjusting setpoints, triggering interlocks, or issuing commands to variable frequency drives such as the ABB ACS880 series connected elsewhere on the network. Simultaneously, the SCADA layer — often running on ABB’s 800xA Operations platform — visualizes real-time data from all connected S900 stations, enabling operators to monitor production KPIs, acknowledge alarms, and initiate remote diagnostic sessions without physical access to the field cabinet.

For plants operating mixed-protocol environments, the TU921S-equipped S900 station can coexist with ABB S800 I/O modules on parallel Profibus segments, or interface with Modbus RTU devices through dedicated protocol gateway modules that aggregate data before forwarding it to the DCS historian. Edge computing nodes and industrial IoT gateways can tap into this data stream to feed analytics platforms, enabling predictive maintenance models that flag bearing wear, valve degradation, or pump cavitation before failures occur.

The redundant termination design of the TU921S is particularly valuable in safety-critical loops where a single bus fault could trigger an unplanned shutdown. By maintaining active termination on both the primary and redundant Profibus DP paths, the TU921S ensures that the ABB TK851V redundant cable coupler and associated S900 power supply modules — such as the ABB SD821 24VDC power supply — continue to deliver uninterrupted I/O data to the control system even during maintenance or partial bus failure scenarios.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in brownfield industrial facilities is protocol fragmentation — legacy PLCs speaking Modbus RTU, newer DCS platforms running Profibus DP, and emerging IIoT gateways expecting MQTT or OPC-UA. The ABB TU921S 3KDE175111L9210 addresses this at the physical layer by providing a stable, correctly terminated Profibus DP segment that serves as the reliable foundation upon which protocol conversion and data aggregation can occur upstream.

Data silos form when field devices cannot reliably communicate their status to the control layer. A poorly terminated Profibus segment introduces reflections and noise that cause cyclic data errors, forcing the PLC to request retransmissions and increasing scan cycle times. The TU921S eliminates this root cause, ensuring that every I/O module on the S900 station delivers its data on schedule — enabling the SCADA historian to maintain complete, gap-free process records that are essential for regulatory compliance, OEE calculation, and root-cause analysis after incidents.

Remote monitoring becomes practical only when the underlying communication infrastructure is dependable. With the TU921S maintaining bus integrity, remote diagnostic tools can query S900 station health, I/O module status, and channel-level diagnostics from the control room or from a remote engineering workstation — reducing the need for field technicians to physically inspect cabinets in hazardous areas. This capability directly supports production line transparency initiatives, where plant managers require real-time visibility into every segment of the automation network.

System expansion is equally simplified: adding new S900 I/O modules to an existing Profibus DP segment requires only that the bus termination remains correctly configured. The TU921S supports hot-swap operation, allowing modules to be inserted or removed without taking the bus offline — a critical feature for continuous-process industries where planned shutdowns are costly and unplanned ones are unacceptable.

Industrial Connectivity FAQ

Q1: What communication protocol does the ABB TU921S 3KDE175111L9210 support, and is it compatible with third-party Profibus DP masters?
The TU921S is designed for ABB’s S900 Remote I/O system operating on Profibus DP. It provides passive bus termination and is compatible with any Profibus DP V0/V1 master, including third-party PLCs and DCS platforms that support the Profibus DP standard. GSD files for the S900 station are available for integration into non-ABB control systems.

Q2: How does the redundant termination feature improve network stability in high-noise industrial environments?
The TU921S provides active termination on both the primary and redundant Profibus DP bus paths. This ensures correct impedance matching at the segment endpoint, suppressing signal reflections that cause data corruption in electrically noisy environments such as those near variable frequency drives, welding equipment, or high-voltage switchgear. The result is a stable bus with minimal cyclic data errors and consistent scan cycle performance.

Q3: Can the TU921S be replaced or serviced without shutting down the Profibus DP segment?
Yes. The S900 system supports hot-swap operation, meaning the TU921S and associated I/O modules can be replaced during live operation without interrupting the Profibus DP communication cycle. This is essential for continuous-process plants where bus downtime directly translates to production loss. All units supplied by ZYPLC are pre-tested prior to shipment to verify correct operation.

Q4: What warranty and after-sales support does ZYPLC provide for the ABB TU921S 3KDE175111L9210?
ZYPLC provides a warranty terms confirmed during quotation on all ABB S900 series components, including the TU921S. Units are sourced from verified supply channels, inspected upon receipt, and functionally tested before dispatch. Global shipping via DHL and FedEx is available with tracking. For technical pre-sales support, compatibility verification, or volume pricing, contact our team directly.
