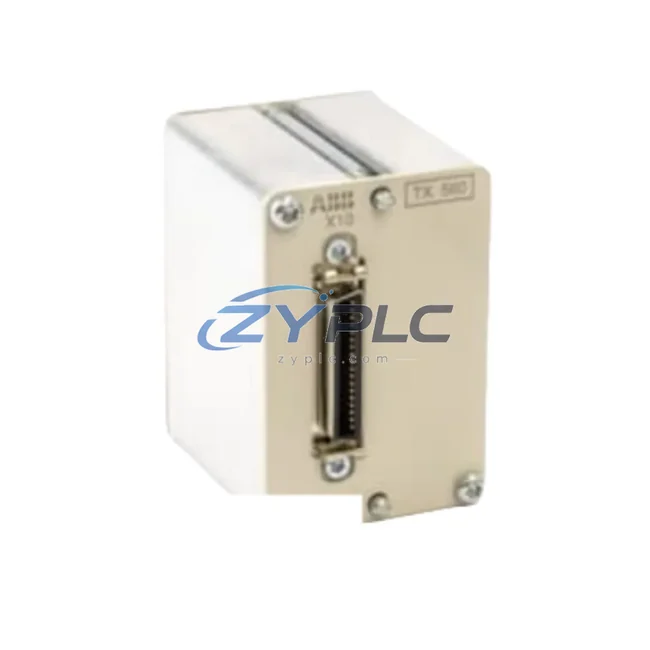

ABB TX560 3BSE005881R1 Terminal Block Module

ABB TX560 3BSE005881R1 Terminal Block Module for Advant Automation

The ABB TX560 3BSE005881R1 is a high-integrity terminal block module engineered for the Advant Controller platform, one of ABB’s most established distributed control architectures in process and discrete manufacturing. Designed to serve as the physical and electrical interface between field wiring and the controller’s I/O subsystem, the TX560 plays a foundational role in how energy flows, how signals are conditioned, and how control loops are closed across the production line. In energy-intensive industrial environments — from pulp and paper mills to chemical processing plants and automotive assembly lines — the quality of signal termination directly affects the accuracy of condition monitoring, the responsiveness of drive control, and the reliability of predictive maintenance routines.

Unlike generic terminal solutions, the TX560 3BSE005881R1 is purpose-built for the Advant ecosystem, ensuring full electrical compatibility with ABB’s S800 I/O modules and the AC450 and AC460 controller families. This native compatibility eliminates signal degradation at the termination layer — a common but often overlooked source of measurement error that can cause variable frequency drives to operate outside their optimal efficiency window, leading to unnecessary energy consumption and accelerated motor wear.

Product Specification Table

System Compatibility and Application

In a well-optimized Advant-based control system, the TX560 3BSE005881R1 sits at the convergence point between field instrumentation and the controller’s decision logic. Field devices — including ABB ACS800 and ACS580 variable frequency drives, AI810 analog input modules, DI810 digital input modules, and AO810 analog output modules — all depend on clean, low-resistance termination to deliver accurate process values to the controller. When the TX560 provides that termination reliably, the AC450 controller can execute PID loops and energy setpoint commands with the precision needed to keep motors running at their most efficient operating points.

In drive-heavy applications, the TX560 works in concert with the Modulebus communication backbone, ensuring that speed reference signals from the controller reach the ACS800 drives without distortion. A 1% error in a speed reference signal on a 75 kW motor can translate to measurable excess energy consumption over a production shift. The TX560’s robust screw-terminal design and vibration-resistant construction maintain connection integrity even in environments with significant mechanical noise — a common challenge in stamping, compressor, and pump stations.

For condition monitoring applications, the TX560 3BSE005881R1 supports the connection of power transducers and current transformers to the S800 I/O layer, feeding real-time power consumption data into the Advant controller’s maintenance planning routines. When paired with ABB’s PM860 processor module and the MasterView 800 HMI, operators gain a consolidated view of energy consumption per production zone, enabling targeted interventions when specific lines or machines deviate from their energy baseline.

The module also supports integration with ABB’s AF100 fieldbus interface, allowing the Advant system to communicate energy and process data upstream to SCADA platforms or MES systems. This data pathway is essential for facilities pursuing ISO 50001 maintenance planning certification, where metered, traceable energy data at the machine level is a compliance requirement.

Maintenance and Replacement Notes

Consider a continuous process line running three-phase induction motors controlled by ACS580 drives under Advant supervision. If the terminal block connecting the drive’s analog speed feedback to the AI810 input module develops high contact resistance — due to vibration, thermal cycling, or corrosion — the controller receives a distorted feedback signal. The result is a drive that hunts around its setpoint, consuming 5–12% more energy than necessary while also generating excess heat that shortens bearing life and increases unplanned downtime.

Replacing aging or generic terminal blocks with the TX560 3BSE005881R1 eliminates this failure mode. The module’s gold-plated contact surfaces and torque-specified terminal screws maintain consistent contact resistance over the full operating temperature range, ensuring that the analog signals feeding the Advant controller’s maintenance planning algorithms remain accurate throughout the production day.

In batch manufacturing environments, where production line takt time is tightly managed, signal latency introduced by poor termination can cause the AC450 controller to miss synchronization windows between upstream and downstream equipment. The TX560’s low-inductance design minimizes signal propagation delay, supporting tighter inter-machine coordination and reducing idle time between production cycles — a direct contributor to improved overall equipment effectiveness (OEE).

From a maintenance cost perspective, the TX560 3BSE005881R1 supports a predictive maintenance strategy by ensuring that vibration sensors, temperature transmitters, and current monitors connected through the S800 I/O layer deliver consistent, high-fidelity data to the Advant controller. When this data is reliable, condition monitoring algorithms can detect early signs of motor bearing degradation, pump cavitation, or drive overheating — allowing maintenance teams to schedule interventions during planned downtime rather than responding to unexpected failures.

Every unit supplied by ZYPLC undergoes outgoing quality testing prior to shipment, verifying terminal continuity, insulation resistance, and mechanical integrity. This ensures that the TX560 3BSE005881R1 you receive performs to ABB’s original specification from the moment it is installed — with a warranty terms confirmed during quotation covering defects in materials and workmanship.

Product Sourcing FAQ

Q1: How does the TX560 3BSE005881R1 contribute to operational stability in an Advant-controlled system?
The TX560 ensures low-resistance, high-integrity signal termination between field devices and the S800 I/O layer. Accurate signal transmission allows the AC450 controller to execute maintenance planning loops — such as drive speed control and motor load balancing — with the precision needed to minimize excess energy consumption. Poor termination is a hidden source of control loop error that directly increases unplanned downtime.

Q2: Is the TX560 3BSE005881R1 compatible with both AC450 and AC460 Advant controllers?
Yes. The TX560 is designed for the Advant Controller platform and is compatible with both the AC450 and AC460 processor families, as well as the associated S800 I/O modules including AI810, AO810, DI810, and DO810. It interfaces via the Modulebus backplane and requires no additional adapters for standard Advant rack configurations.

Q3: What is the recommended replacement process for an aging terminal block module in a live Advant system?
We recommend a planned replacement during a scheduled maintenance window. Before removal, document all field wiring connections using the Advant engineering documentation or MasterView 800 HMI I/O mapping. After installing the TX560 3BSE005881R1, perform a loop check on all connected analog and digital channels before returning the system to automatic control. ZYPLC can provide technical support during the replacement process.

Q4: What does the warranty terms confirmed during quotation cover, and what is the testing process before shipment?
The warranty terms confirmed during quotation covers defects in materials and workmanship under normal operating conditions. Prior to shipment, each TX560 3BSE005881R1 unit undergoes outgoing quality testing including terminal continuity verification, insulation resistance measurement, and mechanical inspection. Units that do not meet ABB’s original specification are not shipped. Warranty claims are processed directly through ZYPLC with a target response time of 2 business days.
