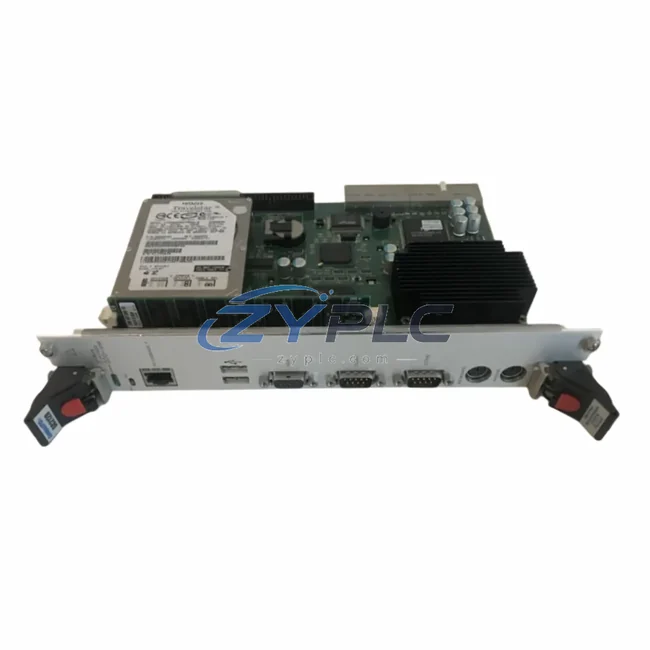

ABB TZ865A BU768A390G51 Control Board for IRC5

ABB TZ865A BU768A390G51 Control Board for IRC5: Compatibility and Replacement Notes

The ABB TZ865A BU768A390G51 is a dedicated robot control board engineered for deployment within the ABB IRC5 robot controller platform. Rather than functioning as a standalone component, this board occupies a critical position within a layered automation architecture — bridging the motion control layer, the I/O processing layer, and the communication backbone of the IRC5 system. Understanding its role within the full control hierarchy is essential for engineers responsible for system integration, long-term maintenance, and architecture scalability.

In modern industrial automation environments — whether in automotive body-in-white lines, arc welding cells, material handling systems, or precision assembly stations — the robot controller is not an isolated unit. It is a node within a broader control ecosystem that includes safety PLCs, fieldbus networks, HMI terminals, servo drives, and distributed I/O modules. The TZ865A BU768A390G51 board supports the IRC5’s internal signal routing and processing functions, ensuring that command signals from the main computer unit (MCU) are accurately translated into coordinated motion outputs across all robot axes.

Product Specification Table

System Compatibility Notes

The TZ865A BU768A390G51 does not operate in isolation. Its value is realized only when it is correctly seated within the IRC5 controller and coordinated with the surrounding system architecture. A complete IRC5-based robot cell typically integrates the following components, each of which interacts directly or indirectly with this control board:

At the controller core level, the IRC5 Main Computer Unit (DSQC 639 or DSQC 1000) serves as the central processing node, issuing motion commands that pass through the control board to the drive system. The DSQC 661 Axis Computer works in tandem with the control board to manage real-time axis interpolation and servo feedback loops. Together, these units form the computational backbone of the robot’s motion control layer.

The DSQC 608 Drive Unit and associated DSQC 609 rectifier module form the power and drive layer, converting DC bus power into precise motor drive signals for each robot joint. The TZ865A BU768A390G51 board ensures that the command signals reaching these drive units are correctly formatted and timed, preventing axis desynchronization during high-speed or multi-robot coordinated operations.

At the I/O layer, the IRC5 system commonly integrates the DSQC 651 I/O module or DSQC 652 digital I/O board to handle discrete signals from end-of-arm tooling, conveyor interlocks, safety light curtains, and external PLC handshake signals. The control board’s role in maintaining stable internal bus communication ensures that I/O response latency remains within acceptable limits for time-critical process steps.

For network and fieldbus integration, the IRC5 platform supports optional communication modules such as the DSQC 688 DeviceNet Master/Slave module and DSQC 669 PROFIBUS adapter, enabling the robot controller to participate in plant-wide automation networks alongside Siemens S7 PLCs, Allen-Bradley ControlLogix systems, or Schneider Modicon platforms. The stability of the TZ865A BU768A390G51 board directly affects the reliability of these network transactions, as internal bus errors can propagate as communication faults at the fieldbus level.

At the human-machine interface layer, the ABB FlexPendant (IRC5 teach pendant) connects to the controller and relies on stable internal board communication to display real-time axis positions, program status, and alarm diagnostics. Engineers performing commissioning or troubleshooting depend on this data integrity to make accurate adjustments during system startup and periodic maintenance cycles.

For applications requiring redundancy or multi-robot coordination, the IRC5 MultiMove option allows up to four robots to be controlled from a single IRC5 controller cabinet. In such configurations, the integrity of each control board becomes a system-wide concern — a single board failure can disrupt the coordinated motion of the entire robot group. Maintaining a verified spare of the TZ865A BU768A390G51 in the maintenance inventory is a standard practice in high-availability production environments.

Industrial Application Notes

Automotive Manufacturing: In body-in-white welding lines and press-tending cells, IRC5-controlled robots operate in tightly synchronized sequences with conveyor systems, fixture clamps, and vision inspection stations. The TZ865A BU768A390G51 supports the precise timing required for spot welding, seam welding, and part transfer operations where cycle time deviations of even a few milliseconds can trigger line stoppages.

Electronics and Precision Assembly: In PCB handling, semiconductor packaging, and precision dispensing applications, the control board’s role in maintaining axis accuracy is critical. IRC5-based robots in these environments often operate at reduced speeds with high positional repeatability requirements, where internal board stability directly affects product yield and defect rates.

Palletizing and Material Handling: In logistics centers, food and beverage plants, and consumer goods packaging lines, IRC5 robots perform high-cycle palletizing and depalletizing tasks. The TZ865A BU768A390G51 supports continuous operation across multi-shift production schedules, and its availability as a verified spare component is essential for minimizing unplanned downtime in these high-throughput environments.

Metal Fabrication and Foundry Applications: In arc welding, plasma cutting, and die casting extraction, robots operate in thermally and electrically demanding environments. The IRC5 controller’s robust design, supported by properly functioning internal boards, ensures reliable operation even under conditions of elevated ambient temperature, electromagnetic interference, and mechanical vibration.

Process Industries: In chemical dosing, water treatment automation, and oil and gas facility maintenance, IRC5-based robots are increasingly deployed for inspection, valve operation, and hazardous material handling. In these environments, system reliability and the availability of certified spare parts — including the TZ865A BU768A390G51 — are regulatory and operational requirements.

Product Compatibility FAQ

Q1: Is the TZ865A BU768A390G51 compatible with all IRC5 controller variants, including the IRC5 Compact and IRC5 Panel Mounted Controller?
The TZ865A BU768A390G51 is designed for the ABB IRC5 platform. Compatibility with specific IRC5 variants — including the standard single cabinet, IRC5 Compact, and IRC5 Panel Mounted Controller — depends on the controller’s hardware revision and software version (RobotWare). We recommend providing your controller serial number and RobotWare version when inquiring, so our technical team can confirm exact compatibility before shipment. All units are supplied with a warranty terms confirmed during quotation and functional verification.

Q2: Can this board be installed without ABB-certified service personnel, and what commissioning steps are required after replacement?
Replacement of internal IRC5 control boards should be performed by qualified automation engineers familiar with ABB IRC5 hardware procedures. After physical installation, the system typically requires a controller restart, axis calibration verification, and confirmation that all I/O and communication modules are correctly recognized by the system. Our team can provide technical guidance on the replacement procedure, and the warranty terms confirmed during quotation covers functional defects identified during the commissioning process.

Q3: What is the lead time for the TZ865A BU768A390G51, and do you support urgent orders for production-critical situations?
The TZ865A BU768A390G51 is maintained RFQ Available for shipment arranged after confirmation. For production-critical situations where line downtime is occurring, we prioritize urgent orders and can arrange expedited international shipping to minimize production impact. All units are covered by a warranty terms confirmed during quotation and are functionally tested prior to shipment. Contact our team directly at +86 19859288691 or plc.sales@zyplc.com to confirm availability and arrange urgent delivery.
