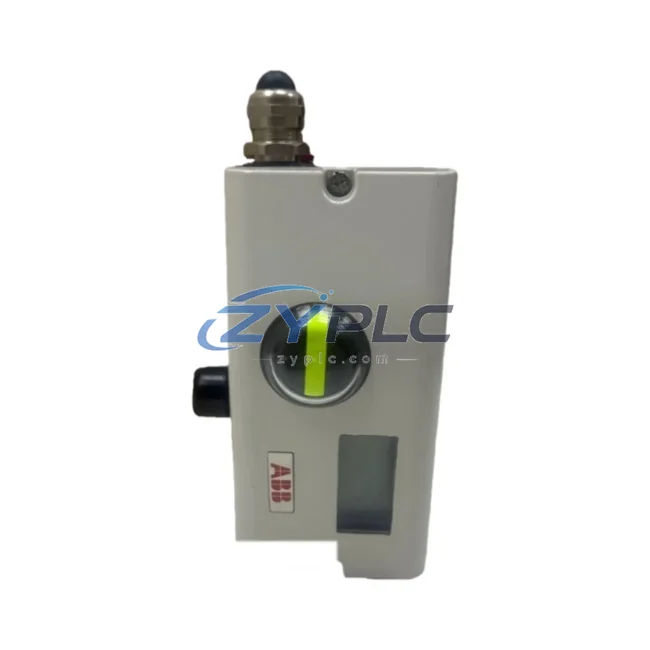

ABB TZIDC-110 Digital Positioner TZIDC

ABB TZIDC-110 Digital Positioner TZIDC: Precision Valve Control for Optimized Automation

The ABB TZIDC-110 is a high-performance digital positioner from ABB’s renowned TZIDC Series, engineered to deliver precise, energy-efficient valve positioning across demanding industrial environments. In modern manufacturing and process plants, uncontrolled valve actuation is one of the most overlooked sources of unplanned downtime — excessive air consumption, hunting behavior, and poor loop tuning all translate directly into elevated operating costs and reduced throughput. The TZIDC-110 addresses these inefficiencies at the source, combining intelligent self-calibration, adaptive control algorithms, and robust diagnostics to ensure every valve stroke is purposeful, accurate, and energy-optimized.

Designed for integration with pneumatic rotary and linear actuators, the TZIDC-110 accepts a standard 4–20 mA input signal and delivers split-range capability, making it equally suited for throttling control in chemical dosing lines, steam regulation in heat exchangers, and flow balancing in water treatment facilities. Its onboard microprocessor continuously monitors position feedback and adjusts the pneumatic output to minimize overshoot and air bleed — supporting earlier maintenance decisions and reducing unplanned downtime risk.

Product Specification Table

System Compatibility and Application

The TZIDC-110 does not operate in isolation — its true operational-efficiency potential is realized when it functions as part of a coordinated automation architecture. In a typical process plant deploying ABB’s control ecosystem, the positioner interfaces directly with an ABB AC500 PLC or ABB Symphony Plus DCS via HART communication, enabling the control system to read real-time valve position, travel accumulation, and diagnostic alerts without additional wiring infrastructure. This tight integration allows the PLC to implement advanced loop strategies such as cascade control and feedforward compensation, which dramatically reduce the number of valve corrections per hour — each unnecessary correction wastes compressed air and accelerates actuator wear.

On the drive side, the TZIDC-110 is frequently deployed alongside ABB ACS880 variable speed drives controlling pump and fan motors that feed the process streams being regulated by the valve. When the positioner signals a sustained low-flow demand, the drive can respond by reducing motor speed rather than throttling against a nearly closed valve — a strategy that can cut pump operating load by up to 50% compared to fixed-speed operation with valve throttling. The ABB ACS580 general-purpose drive is another common pairing in utility circuits where cost-efficiency is prioritized over high dynamic response.

For condition monitoring, the TZIDC-110’s HART data stream is typically aggregated by an ABB Ability Smart Sensor or fed into an ABB B23 energy meter network, giving plant energy managers a granular view of compressed air consumption per valve loop. When combined with an ABB CP600 HMI panel, operators can visualize valve position trends, air consumption rates, and loop deviation history on a single screen — enabling rapid identification of loops that are hunting, overshooting, or operating outside their efficient control band.

In distributed I/O architectures, the TZIDC-110 connects to field junction boxes linked to ABB S800 I/O modules or ABB PROFIBUS DP remote I/O stations, reducing the cable runs required for position feedback and reducing installation labor costs. For safety-instrumented systems, the positioner can be paired with ABB TZIDC-200 SIL-rated variants in the same series, maintaining a consistent maintenance and calibration workflow across both standard and safety-critical valve loops. The ABB TZID-C valve controller family’s shared software platform means that technicians trained on one model can service the entire installed base — a significant factor in reducing maintenance labor costs over the asset lifecycle.

Maintenance and Replacement Notes

Consider a chemical plant running 120 control valves across its reactor feed, product separation, and utility sections. Before deploying the TZIDC-110, many of these valves were controlled by conventional pneumatic positioners with fixed bleed rates, consuming compressed air continuously regardless of whether the valve position was stable or changing. After retrofitting with TZIDC-110 units, the plant’s compressed air system — driven by a bank of 75 kW screw compressors — saw a measurable reduction in duty cycle, translating to lower electrical consumption and extended compressor service intervals.

The TZIDC-110’s adaptive position control is particularly valuable in batch production environments where valve demand profiles change frequently between product campaigns. Rather than requiring manual retuning after each product changeover, the positioner’s self-calibration routine re-characterizes the valve and actuator assembly automatically, ensuring optimal control response from the first batch of a new campaign. This eliminates the off-spec production that often occurs in the first hours after a manual retune — a direct contribution to yield improvement and reduced raw material waste.

Predictive maintenance is another dimension of maintenance planning enabled by the TZIDC-110. The positioner continuously logs travel accumulation, reversal count, and deviation time — parameters that correlate strongly with packing wear, actuator seal degradation, and spring fatigue. By integrating this data into a plant asset management system via HART, maintenance teams can schedule valve overhauls based on actual condition rather than fixed time intervals, avoiding both premature replacement (wasted resources) and run-to-failure events (unplanned downtime and energy spikes during restart sequences).

Every unit supplied by ZYPLC undergoes functional testing prior to shipment, verifying input signal response, position accuracy, and air consumption against factory specifications. This pre-shipment validation ensures that the TZIDC-110 arrives ready for immediate commissioning, minimizing installation time and the risk of loop tuning issues that could compromise energy performance from day one. All units are covered by a warranty terms confirmed during quotation, with availability subject to RFQ confirmation for prompt delivery to support both planned projects and urgent replacement requirements.

Product Sourcing FAQ

Q1: How does the ABB TZIDC-110 reduce operating load compared to a conventional pneumatic positioner?
The TZIDC-110 uses an adaptive digital control algorithm that minimizes unnecessary valve corrections and reduces steady-state air bleed to below 0.05 Nm³/h. Conventional positioners with fixed bleed orifices consume compressed air continuously, even when the valve is stationary. Over a year of operation across multiple loops, this difference represents a significant reduction in compressor runtime and electrical operating load.

Q2: Is the TZIDC-110 compatible with existing DCS and PLC systems?
Yes. The TZIDC-110 accepts a standard 4–20 mA control signal and supports HART communication, making it compatible with virtually all major DCS and PLC platforms including ABB Symphony Plus, Siemens PCS 7, Honeywell Experion, and Yokogawa CENTUM. PROFIBUS PA communication is available as an option for plants using fieldbus architectures.

Q3: What is the recommended replacement or upgrade path for aging positioners?
The TZIDC-110 is a direct retrofit for most pneumatic linear and rotary actuators using standard NAMUR mounting. Its self-calibration routine eliminates the need for manual span and zero adjustment during installation. For safety-critical loops currently using older SIL-rated positioners, the ABB TZIDC-200 in the same series provides a certified upgrade path while maintaining the same mounting footprint and wiring interface.

Q4: What does the warranty terms confirmed during quotation cover, and what testing is performed before shipment?
All TZIDC-110 units supplied by ZYPLC are covered by a warranty terms confirmed during quotation against manufacturing defects and functional failures under normal operating conditions. Prior to shipment, each unit is tested for input signal linearity, position accuracy across the full stroke range, and air consumption at rated supply pressure. A test report is available upon request. For urgent requirements, availability confirmed by RFQ units can be dispatched within 24–48 hours.
