ABB UFC760 BE141 3BHE004573R0141 Interface for AC800PEC

ABB UFC760 BE141 3BHE004573R0141: Interface for AC800PEC

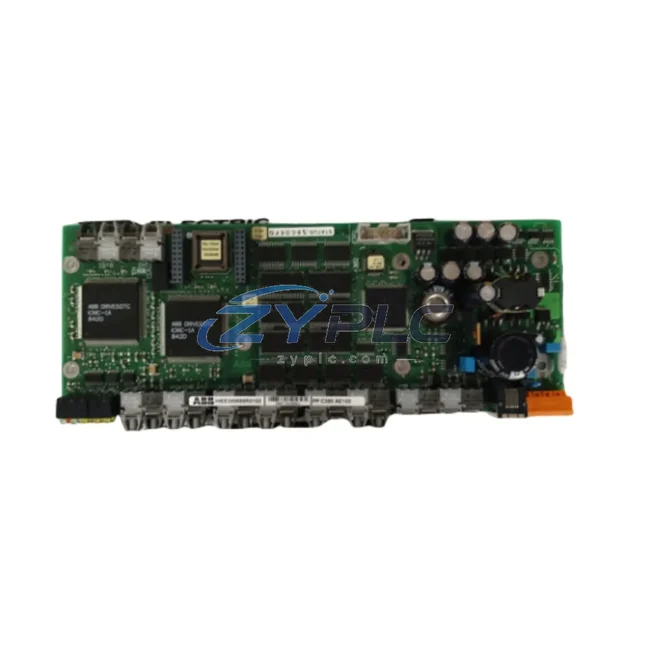

The ABB UFC760 BE141 (part number 3BHE004573R0141) is a precision-engineered interface board designed to operate at the heart of ABB’s AC800PEC excitation control platform. Rather than functioning as a standalone component, this board is architected to serve as a critical signal-routing and communication bridge within a layered automation hierarchy — connecting the control layer to the excitation execution layer with deterministic, low-latency data exchange. In power generation, heavy industry, and process control environments where generator excitation stability is non-negotiable, the UFC760 BE141 delivers the signal integrity and system coherence that modern distributed control architectures demand.

Understanding the UFC760 BE141 requires viewing it through the lens of the complete AC800PEC system architecture. The AC800PEC controller — ABB’s dedicated excitation control platform — manages generator field current regulation, reactive power control, and power system stabilizer (PSS) functions. The UFC760 BE141 serves as the interface backbone that allows the CPU module to communicate with downstream I/O, feedback, and firing pulse modules. Without a properly seated and configured BE141 board, the entire excitation chain — from voltage reference input to thyristor firing — loses its coordination layer. This makes the UFC760 BE141 not merely a spare part, but a system-critical architectural component.

In a fully configured AC800PEC rack, the UFC760 BE141 works in close coordination with modules such as the UFC760 BE111 firing pulse interface, the UFC760 BE121 measurement board, and the UFC760 BE131 power supply module. The BE141 receives processed control signals from the AC800PEC CPU and distributes them across the backplane to the appropriate I/O and firing channels. This backplane-level integration ensures that all modules share a synchronized data bus, eliminating timing discrepancies that could cause excitation instability or protection relay misoperation. Engineers commissioning or maintaining AC800PEC-based excitation systems will recognize the BE141 as the module that defines the system’s internal communication topology.

Product Specification Table

System Compatibility Notes

The UFC760 BE141 achieves its full value only when considered within the broader AC800PEC system architecture. A complete excitation control system built around this platform typically includes the following coordinated layers:

Control Layer: The AC800PEC CPU module serves as the master controller, executing excitation regulation algorithms, PSS functions, and protection logic. The UFC760 BE141 acts as the primary interface between this CPU and all downstream modules, ensuring that control commands are routed accurately and without latency across the backplane.

I/O and Measurement Layer: Modules such as the UFC760 BE121 measurement board capture analog feedback signals — generator terminal voltage, field current, and reactive power — and feed them back through the BE141 interface to the CPU for closed-loop regulation. The signal fidelity maintained by the BE141’s interface circuitry is essential for accurate AVR (Automatic Voltage Regulator) performance.

Firing Pulse Layer: The UFC760 BE111 firing pulse interface module receives gating commands routed through the BE141 and translates them into precisely timed thyristor firing pulses. Any degradation in the BE141’s signal routing capability directly impacts the firing accuracy of the converter bridge, potentially causing voltage ripple or excitation instability.

Power Supply Layer: The UFC760 BE131 power supply module provides regulated DC power to the rack. The BE141 interface board operates within the voltage and current envelope defined by this supply, and its low power consumption ensures that the overall rack power budget remains within design limits even in fully populated configurations.

Communication and Network Layer: In plants where the AC800PEC system is integrated into a wider DCS or SCADA network — such as ABB’s System 800xA or a Modbus/PROFIBUS-based supervisory layer — the BE141 supports the internal communication architecture that allows the CPU to exchange status, setpoints, and alarm data with higher-level systems. This system integration capability ensures that the excitation system is not an isolated island but a fully networked node within the plant automation hierarchy.

Redundancy Architecture: In critical power generation applications, AC800PEC systems are often deployed in redundant configurations. The UFC760 BE141, as the interface backbone, must be available as a verified spare to support rapid switchover and minimize mean time to repair (MTTR). Maintaining a stocked BE141 as part of a critical spares inventory strategy is a recognized best practice in power plant maintenance engineering.

Industrial Application Notes

Power Generation: In thermal, hydro, and gas turbine power plants, the AC800PEC excitation system — with the UFC760 BE141 at its interface core — regulates generator terminal voltage and reactive power output. Stable excitation is fundamental to grid synchronization, and the BE141’s role in maintaining clean signal paths between the CPU and firing modules directly supports grid code compliance and power quality targets.

Industrial Manufacturing and Process Control: Large synchronous motors driving compressors, pumps, and mills in petrochemical, mining, and metallurgical plants rely on excitation control systems for soft-start, power factor correction, and dynamic stability. The UFC760 BE141 supports these applications by providing a reliable interface layer that sustains motor excitation performance across variable load cycles and harsh electrical environments.

Water and Wastewater Treatment: Pumping stations equipped with large synchronous drives benefit from the AC800PEC platform’s precise excitation control. The BE141 interface board ensures that the control system responds accurately to flow demand changes, maintaining pump efficiency and protecting motor insulation from excitation-related overvoltage events.

Mining and Mineral Processing: Winder drives, ball mill motors, and conveyor synchronous drives in mining operations demand excitation systems that can sustain performance under frequent load transients. The UFC760 BE141’s robust backplane interface design supports these demanding duty cycles, and its compatibility with the AC800PEC redundancy architecture provides the fault tolerance required for continuous production environments.

Long-Term Maintenance and Inventory Strategy: For plant engineers managing aging AC800PEC installations, sourcing verified UFC760 BE141 boards with a confirmed warranty terms confirmed during quotation is a critical element of lifecycle management. A stocked BE141 reduces unplanned downtime risk, supports scheduled maintenance windows, and ensures that the excitation system can be restored to full operation without extended lead times for obsolete or hard-to-source components.

Product Compatibility FAQ

Q1: Is the UFC760 BE141 (3BHE004573R0141) compatible with all AC800PEC rack configurations?
The UFC760 BE141 is designed specifically for the AC800PEC excitation control platform and is compatible with standard AC800PEC rack assemblies that use the UFC760 series module family. Before installation, engineers should verify the rack revision and firmware version of the CPU module to confirm full compatibility. Our technical team can assist with compatibility verification as part of the system integration support included with every order.

Q2: What does the warranty terms confirmed during quotation cover, and how does it support long-term maintenance planning?
The warranty terms confirmed during quotation covers manufacturing defects and functional failures under normal operating conditions from the date of shipment. For plant maintenance teams, this warranty provides a defined assurance window that aligns with annual maintenance planning cycles. In the event of a warranty claim, replacement or repair is coordinated to minimize system downtime, supporting the continuity of excitation control operations.

Q3: Can the UFC760 BE141 be installed and commissioned without ABB factory support?
Yes. The UFC760 BE141 is a field-replaceable module designed for installation by qualified automation engineers familiar with the AC800PEC platform. Standard commissioning involves seating the board in the correct rack slot, verifying backplane connector integrity, and performing a system self-test via the AC800PEC diagnostic interface. Detailed installation guidance is available in the AC800PEC hardware manual. For complex configurations or first-time installations, our engineering support team can provide remote commissioning assistance as part of our system integration service.
