ABB UFC921A101 Industrial Network Interface for AC800M Systems

ABB UFC921A101 Industrial Network Interface for AC800M Systems: Bridging Field Devices and DCS Data Links

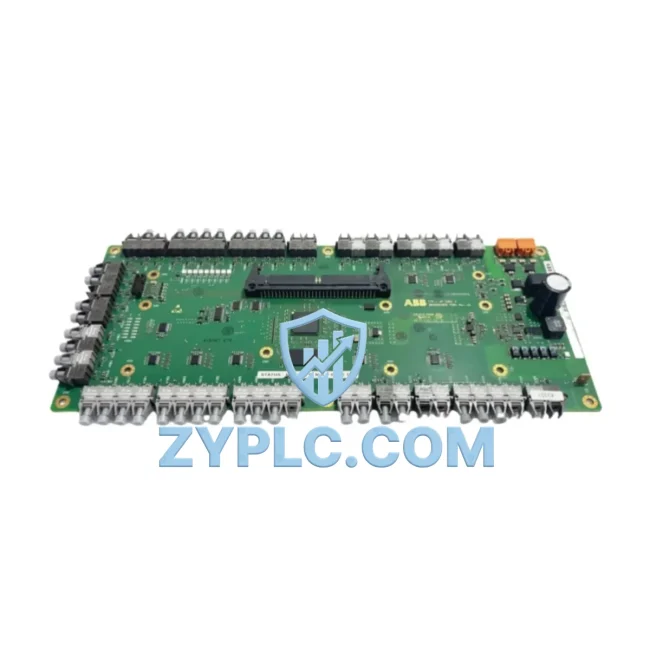

The ABB UFC921A101 (3BHE024855R0101) is a high-performance PROFIBUS DP Interface Board engineered for seamless integration within ABB’s AC800M Distributed Control System architecture. Designed to serve as the critical communication bridge between field-level instrumentation and upper-layer control platforms, this interface board enables deterministic, real-time data exchange across complex industrial network topologies. Whether deployed in oil and gas processing, power generation, chemical manufacturing, or advanced discrete automation, the UFC921A101 delivers the protocol reliability and network stability that modern smart factories demand.

In today’s industrial environments, the ability to move data accurately and rapidly from sensors and actuators up through PLCs, SCADA systems, and MES platforms is no longer optional — it is the foundation of operational intelligence. The UFC921A101 fulfills this role by providing a robust PROFIBUS DP communication channel directly within the AC800M controller backplane, eliminating the latency and signal degradation risks associated with external protocol converters or gateway appliances.

Network Communication Table

Connected Automation Data Flow

The UFC921A101 sits at the heart of a layered industrial data architecture. At the field level, PROFIBUS DP-compatible sensors — including pressure transmitters, flow meters, temperature sensors, and position encoders — transmit process values cyclically to the AC800M controller via this interface board. The board’s high-speed PROFIBUS DP channel, operating at up to 12 Mbit/s, ensures that signal acquisition latency remains within the deterministic bounds required for closed-loop process control.

Within the AC800M backplane, the UFC921A101 works in concert with other communication and I/O modules. For example, the ABB CI854A PROFIBUS DP Master Module and the CI858 DNP3 Communication Interface may coexist in the same controller rack, enabling multi-protocol field device connectivity from a single control node. Remote I/O clusters — such as the ABB S800 I/O modules connected via the AF100 fieldbus — feed their data through the AC800M’s internal bus, where the UFC921A101 aggregates PROFIBUS DP traffic and presents it to the controller’s process database in real time.

At the supervisory layer, the AC800M controller running the UFC921A101 communicates upward to the ABB System 800xA DCS platform via the plant network. Operators monitoring the 800xA HMI workstations receive live process data — valve positions, motor speeds, tank levels, and alarm states — with sub-second refresh rates. SCADA historians log this data continuously, enabling trend analysis, predictive maintenance scheduling, and regulatory compliance reporting.

For drive integration, the UFC921A101 enables direct PROFIBUS DP communication with ABB ACS880 and ACS580 variable frequency drives, allowing the AC800M to issue speed references, read actual speed feedback, and monitor drive fault registers without additional protocol gateways. Similarly, ABB TZID-C positioners and EDP300 electro-pneumatic positioners on control valves report their position feedback and diagnostic data over the same PROFIBUS DP network segment managed by the UFC921A101.

In distributed architectures, the UFC921A101 also supports communication with remote PROFIBUS DP I/O stations — such as the ABB FieldIT or third-party Pepperl+Fuchs DP/PA segment couplers — extending the data collection reach into hazardous areas or geographically dispersed process units. Edge gateway devices aggregating data from multiple PROFIBUS segments can forward consolidated datasets to cloud-based analytics platforms, enabling plant-wide OEE monitoring and energy management dashboards.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in legacy and hybrid industrial installations is data isolation — the condition where field devices, controllers, and supervisory systems operate in disconnected silos, preventing operators from achieving a unified view of plant performance. The ABB UFC921A101 directly addresses this challenge by providing a standardized, high-speed PROFIBUS DP communication path that integrates previously isolated field devices into the AC800M’s unified process database.

Protocol fragmentation is a common root cause of data isolation. Many older installations combine HART, Modbus RTU, DeviceNet, and PROFIBUS DP devices within the same process unit, each requiring separate communication infrastructure. By deploying the UFC921A101 as the PROFIBUS DP master interface within the AC800M, engineers can consolidate PROFIBUS DP device data into the controller’s tag database, where it becomes accessible alongside data from other protocol interfaces — eliminating the need for standalone protocol converters that introduce additional failure points and maintenance overhead.

Remote monitoring and diagnostics are equally critical in large-scale industrial sites where physical access to field devices is restricted by distance, hazardous conditions, or operational constraints. The UFC921A101 supports PROFIBUS DP diagnostic messaging, allowing the AC800M to read device-level fault codes, communication error counters, and configuration mismatch alerts directly from connected field instruments. This capability enables maintenance teams to identify failing sensors, degraded cable segments, or misconfigured slave devices from the control room — reducing mean time to repair (MTTR) and minimizing unplanned downtime.

Production line transparency is another key benefit. With the UFC921A101 enabling real-time data flow from every PROFIBUS DP node on the network, plant managers gain access to granular production metrics — cycle times, reject rates, energy consumption per unit, and equipment utilization rates — that were previously unavailable or required manual data collection. This transparency supports continuous improvement initiatives, lean manufacturing programs, and ISO 50001 energy management compliance.

System scalability is preserved through the UFC921A101’s support for up to 126 PROFIBUS DP stations per network segment. As production capacity expands or new process units are commissioned, additional field devices can be added to the existing PROFIBUS DP network without requiring controller replacement or major network redesign — protecting the capital investment in the AC800M platform and reducing the cost of future automation expansions.

Industrial Connectivity FAQ

Q1: What is the maximum communication speed supported by the UFC921A101, and does it affect real-time control performance?
The UFC921A101 supports PROFIBUS DP transmission speeds up to 12 Mbit/s. At this speed, cyclic data exchange with up to 32 field devices can be completed within a single bus cycle of less than 1 millisecond, ensuring that the AC800M controller receives fresh process values within the deterministic timing windows required for closed-loop PID control and safety interlock functions.

Q2: Is the UFC921A101 compatible with third-party PROFIBUS DP devices from vendors other than ABB?
Yes. The UFC921A101 complies with the IEC 61158 PROFIBUS DP standard, ensuring interoperability with any certified PROFIBUS DP slave device regardless of manufacturer. This includes drives, positioners, remote I/O stations, flow computers, and analyzers from Siemens, Endress+Hauser, Yokogawa, Pepperl+Fuchs, and other major industrial automation vendors.

Q3: How does the UFC921A101 support network stability in electrically noisy industrial environments?
PROFIBUS DP networks using the UFC921A101 benefit from the RS-485 physical layer’s inherent noise immunity, which is further enhanced by proper cable shielding, termination resistors at both ends of each bus segment, and the use of PROFIBUS-certified cables. The AC800M’s diagnostic functions, accessible via the UFC921A101, continuously monitor bus error rates and can trigger alarms if communication quality degrades below configurable thresholds — enabling proactive maintenance before network faults cause process disruptions.

Q4: What warranty and pre-shipment testing does ZYPLC provide for the UFC921A101?
Every UFC921A101 unit supplied by ZYPLC undergoes functional verification testing prior to shipment, including communication interface checks and visual inspection for physical integrity. All units are covered by a 12-month warranty from the date of delivery. ZYPLC maintains in-stock inventory of the UFC921A101 to support urgent replacement requirements, with global shipping available to minimize plant downtime in the event of a critical module failure.
