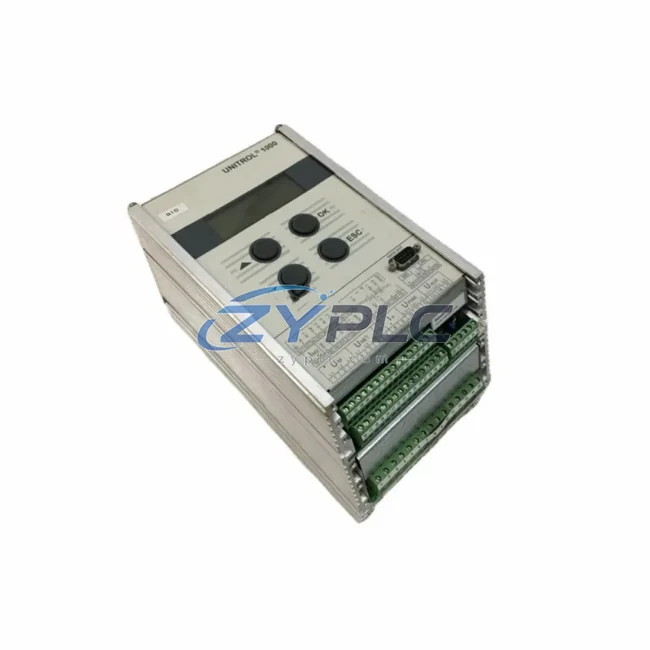

ABB UN1000B-Z 3BHE014557R0003 AVR Gateway | Unitrol 1000

ABB UN1000B-Z 3BHE014557R0003 Industrial Network Interface for Unitrol 1000 Systems

The ABB UN1000B-Z (Part No. 3BHE014557R0003) is a high-performance AVR Gateway module engineered for the Unitrol 1000 automatic voltage regulation platform. Designed to serve as the critical communication bridge between excitation control systems and plant-level automation networks, this gateway enables seamless data exchange across field devices, PLC controllers, SCADA supervisory systems, and HMI operator interfaces. In modern smart factory and power generation environments, where real-time visibility and deterministic control are non-negotiable, the UN1000B-Z delivers the industrial network connectivity that keeps every layer of the automation hierarchy synchronized.

From signal acquisition at the generator terminals to protocol conversion at the control layer, and from network transmission to remote diagnostics at the SCADA level, the UN1000B-Z anchors the entire data flow chain. Its gateway architecture supports bidirectional communication, allowing upstream systems to issue setpoint commands while simultaneously receiving live excitation status, fault codes, and performance telemetry — all without interrupting the primary voltage regulation loop.

Compatibility & Integration Notes

Connected Automation Data Flow

In a typical power generation or heavy industrial deployment, the ABB UN1000B-Z sits at the intersection of the field control layer and the plant communication backbone. At the field level, voltage and current transducers feed raw excitation signals into the ABB Unitrol 1000 AVR core. The UN1000B-Z gateway then translates these proprietary excitation parameters into standardized industrial protocols — most commonly PROFIBUS DP or Modbus TCP — making the data immediately consumable by upstream automation systems.

On the PLC side, controllers such as the ABB AC500 series or ABB Symphony Plus DCS receive structured excitation data via the fieldbus backbone, enabling coordinated control logic between the generator excitation system and the broader plant automation strategy. The UN1000B-Z’s cyclic data exchange ensures that setpoint adjustments from the PLC are reflected in the AVR within milliseconds, maintaining voltage stability even during load transients.

For remote I/O expansion, the gateway integrates naturally with ABB S800 I/O modules, allowing distributed signal collection from temperature sensors, vibration monitors, and protection relays to be aggregated and forwarded through the same network path. This eliminates the need for separate communication infrastructure for auxiliary monitoring points.

At the HMI layer, operator stations running ABB Ability™ System 800xA or third-party SCADA platforms such as Wonderware InTouch or Ignition SCADA receive live excitation data — reactive power output, field current, AVR mode status, and alarm states — displayed in real time on process graphics. Operators can issue manual setpoint changes or switch between automatic and manual excitation modes directly from the HMI, with commands routed back through the UN1000B-Z to the Unitrol 1000 core.

For drive and power conversion integration, the UN1000B-Z can coexist on the same PROFIBUS segment as ABB ACS880 variable frequency drives, enabling unified motor and generator management from a single SCADA view. Edge gateway devices, such as the ABB Edge Controller, can further aggregate data from the UN1000B-Z alongside other field assets, pushing consolidated datasets to cloud analytics platforms for predictive maintenance and performance benchmarking.

Industrial power supplies — including ABB CP-E series 24VDC units — provide the stable auxiliary power required by the UN1000B-Z and associated communication hardware, ensuring that the network interface remains operational even during grid disturbances that may affect the primary excitation system.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in power plant and heavy industrial automation is protocol fragmentation. Legacy excitation systems often communicate over proprietary serial interfaces that are invisible to modern SCADA and DCS platforms. The ABB UN1000B-Z directly addresses this by acting as a protocol gateway — converting the Unitrol 1000’s internal communication into PROFIBUS DP or Modbus TCP frames that any standards-compliant automation system can read and write.

Data silos are eliminated when the UN1000B-Z brings excitation system data into the plant-wide historian. Parameters that were previously only visible on the local AVR panel — field voltage, stator current, reactive power, excitation fault codes — become available to the plant DCS, enabling cross-system correlation and root cause analysis during disturbances.

Remote monitoring and diagnostics are transformed by the gateway’s network connectivity. Maintenance engineers can access live excitation parameters from the control room or remotely via VPN-connected SCADA clients, reducing the need for physical inspections of generator excitation panels. Alarm conditions detected by the Unitrol 1000 are immediately propagated through the network to the SCADA alarm management system, triggering notifications and automated responses without operator intervention.

Production line transparency is enhanced when excitation data is correlated with generator output, load demand, and grid frequency data in the SCADA historian. Operators gain a complete picture of generator performance across shifts, enabling proactive maintenance scheduling and capacity planning. System expansion is straightforward — additional Unitrol 1000 units or other ABB excitation modules can be added to the PROFIBUS segment without redesigning the communication architecture, protecting the initial infrastructure investment.

Industrial Connectivity FAQ

Q1: What communication protocols does the ABB UN1000B-Z (3BHE014557R0003) support?
The UN1000B-Z is designed for the ABB Unitrol 1000 platform and supports industrial fieldbus protocols including PROFIBUS DP and Modbus RTU/TCP, enabling integration with PLC, DCS, SCADA, and HMI systems. Specific protocol support should be confirmed against the module variant and firmware version. All units supplied by ZYPLC are tested for communication functionality prior to shipment.

Q2: How does the UN1000B-Z ensure network stability in demanding industrial environments?
The module is built to ABB’s industrial-grade hardware standards, with robust EMC shielding and isolation to maintain reliable communication in high-noise generator and switchgear environments. Its deterministic fieldbus communication ensures consistent cycle times, preventing data loss or latency spikes that could affect excitation control response.

Q3: Can the UN1000B-Z be integrated with third-party SCADA or DCS systems?
Yes. Because the UN1000B-Z exposes Unitrol 1000 excitation data over standard industrial protocols (PROFIBUS DP, Modbus), it is compatible with any SCADA or DCS platform that supports these protocols — including Siemens WinCC, Wonderware, Ignition, and ABB’s own System 800xA. No proprietary middleware is required for basic data acquisition and setpoint control.

Q4: What warranty and pre-shipment testing does ZYPLC provide for the UN1000B-Z?
Every ABB UN1000B-Z unit supplied by ZYPLC carries a warranty terms confirmed during quotation covering hardware defects and communication functionality. Prior to dispatch, each module undergoes outgoing inspection including visual examination, communication port verification, and functional checks aligned with ABB’s quality standards. Availability is confirmed via RFQ for prompt global shipment.
