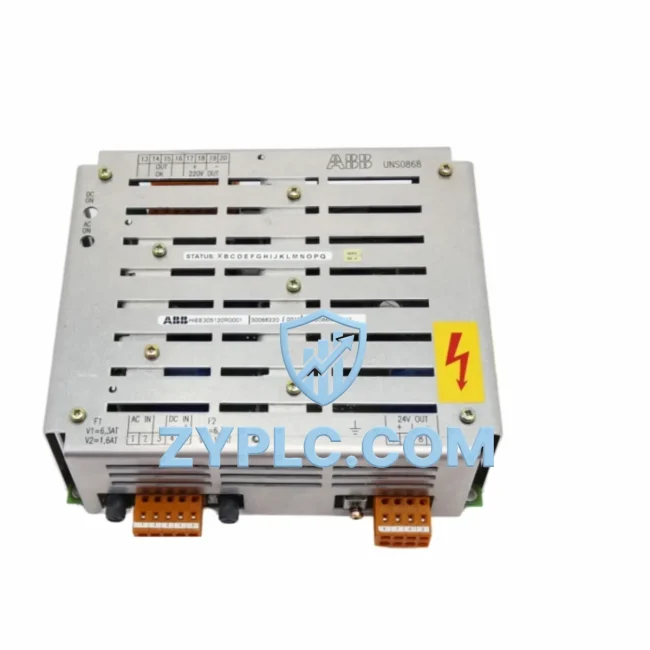

ABB UNS0868A-P HIEE305120R0001 Unitrol Controller

ABB UNS0868A-P HIEE305120R0001 Unitrol Controller: Energy-Efficient Excitation Control for Optimized Automation

The ABB UNS0868A-P (HIEE305120R0001) is a high-performance programmable controller module from ABB’s renowned Unitrol excitation control series. Designed for demanding industrial power generation and motor drive environments, this module delivers precise voltage regulation, reactive power management, and real-time excitation feedback — all of which directly translate into measurable reductions in energy waste and improved generator utilization rates. Whether deployed in hydroelectric plants, thermal power stations, or large-scale industrial motor systems, the UNS0868A-P enables operators to maintain optimal power factor, minimize reactive losses, and extend the operational lifespan of rotating machinery.

In modern production facilities where energy costs represent a significant share of operating expenditure, the ability to fine-tune excitation parameters in real time is not a luxury — it is a competitive necessity. The UNS0868A-P integrates seamlessly into ABB’s broader automation ecosystem, working in concert with components such as the ABB Unitrol 6800 automatic voltage regulator (AVR), SDCS-CON-4 control boards, and SDCS-PIN-48 power interface modules to form a closed-loop excitation management architecture. This architecture continuously monitors generator terminal voltage, field current, and reactive power output, adjusting excitation levels dynamically to prevent over-excitation losses and under-excitation instability — both of which are significant sources of hidden energy waste in unoptimized systems.

Efficiency Performance Table

Energy-Aware Automation Architecture

The UNS0868A-P does not operate in isolation. Its true value emerges when it is integrated as part of a coordinated energy-aware automation architecture. In a typical large-scale industrial power system, the module interfaces with the ABB Unitrol 6800 AVR to receive setpoint commands and transmit real-time field current feedback. Upstream, a Symphony Plus S+ Operations HMI or ABB AC500 PLC provides the supervisory layer, issuing load-following commands based on grid demand signals or production schedule requirements.

On the drive side, the UNS0868A-P works alongside ABB ACS880 industrial drives and ACS580 general-purpose drives to coordinate motor speed and torque profiles with generator excitation levels — ensuring that as production line throughput increases, the power supply system responds proportionally without over-supplying reactive power. This coordination is critical in facilities where multiple large motors — such as compressors, pumps, and conveyors — start and stop frequently, creating reactive power transients that degrade power factor and increase utility penalty charges.

For energy monitoring and data acquisition, the UNS0868A-P integrates with ABB Power Monitor PM5000 series meters and EnergyLogix data concentrators via Modbus TCP, enabling plant energy managers to track excitation-related losses in real time. The SDCS-CON-4 control board handles the low-level current regulation loops, while the SDCS-PIN-48 power interface manages the thyristor firing sequences — together forming a tightly coupled excitation chain that the UNS0868A-P orchestrates at the supervisory level. I/O expansion is handled through ABB CI854 PROFIBUS interface modules, allowing the controller to communicate with field instruments, protection relays, and SCADA systems without additional protocol converters.

Power Optimization in Real Production Lines

Consider a thermal power plant operating three 50 MW generators, each equipped with an aging analog AVR. Replacing the legacy excitation controllers with the ABB UNS0868A-P HIEE305120R0001 module enables the plant to implement coordinated reactive power sharing across all three units. Instead of each generator independently hunting for its voltage setpoint — a process that wastes field energy and causes inter-machine reactive circulating currents — the UNS0868A-P enables a master-follower excitation strategy where reactive load is distributed optimally based on each machine’s current operating point.

The result is a measurable reduction in field copper losses, improved generator efficiency at partial load (a common operating condition during off-peak hours), and a significant reduction in reactive power import from the grid — directly reducing utility demand charges. In facilities where power factor penalties apply, even a 0.02 improvement in average power factor across a 50 MW plant can translate into tens of thousands of dollars in annual savings.

Beyond energy savings, the UNS0868A-P’s programmable architecture supports predictive maintenance workflows. By logging field current trends, excitation response times, and voltage regulation deviations over time, maintenance teams can identify early signs of rotor winding degradation, brush wear, or thyristor aging — scheduling interventions during planned downtime rather than responding to unplanned failures. This shift from reactive to predictive maintenance directly improves equipment utilization rates and reduces the cost of emergency repairs.

For production lines where generator availability is critical — such as continuous process industries including paper mills, chemical plants, and data center backup power systems — the UNS0868A-P’s fast excitation response (typically under 100 ms for voltage recovery after a load step) ensures that production equipment remains within acceptable voltage tolerance bands, preventing nuisance trips and protecting sensitive downstream automation equipment.

All units supplied by ZYPLC are sourced from verified industrial channels, subjected to functional testing under load conditions, and shipped with full documentation. Each UNS0868A-P HIEE305120R0001 module is covered by a 12-month warranty, with stock available for immediate dispatch to minimize your procurement lead time and keep your production schedule on track.

Energy Optimization FAQ

Q1: How does the UNS0868A-P HIEE305120R0001 contribute to energy savings in generator systems?
The UNS0868A-P enables precise, real-time excitation control that maintains generator terminal voltage within tight tolerances. By preventing over-excitation and minimizing reactive power losses, it reduces field copper losses and improves overall generator efficiency — particularly at partial load conditions common during off-peak production periods.

Q2: Is the UNS0868A-P compatible with existing ABB Unitrol and SDCS drive systems?
Yes. The UNS0868A-P is designed for integration within ABB’s Unitrol excitation platform and is compatible with Unitrol 5000, Unitrol 6800, and SDCS-series drive architectures. It supports PROFIBUS-DP and Modbus communication protocols, making it straightforward to integrate into existing plant automation and SCADA infrastructure.

Q3: What is the recommended replacement or upgrade path for legacy ABB excitation controllers?
For systems currently using older Unitrol analog or first-generation digital AVRs, the UNS0868A-P provides a direct upgrade path with improved programmability and communication capability. We recommend consulting the ABB Unitrol 6800 system documentation and verifying field current ratings and interface wiring before installation. Our technical team can assist with compatibility verification.

Q4: What testing and warranty coverage is provided with each unit?
Every UNS0868A-P HIEE305120R0001 supplied by ZYPLC undergoes functional testing prior to shipment, including power-on verification and communication interface checks. Each unit is covered by a 12-month warranty against manufacturing defects and functional failures. Units are packaged in anti-static protective materials and shipped with tracking to ensure safe delivery.
