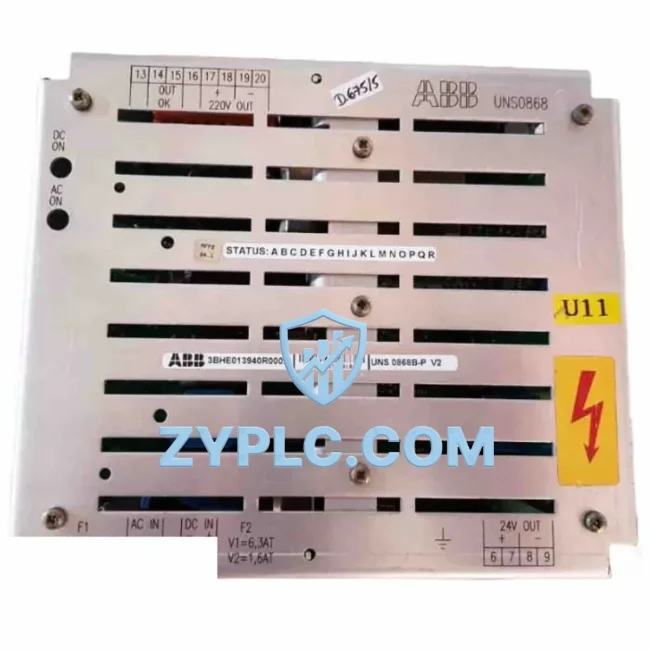

ABB UNS0868B-P V2 Power Supply for UNITROL 6000

ABB UNS0868B-P V2 Power Supply for UNITROL 6000: Control System Coordination and Upstream-Downstream Integration

The ABB UNS0868B-P V2 (part number 3BHE013940R0002) is a dedicated power supply module engineered for deployment within the ABB UNITROL 6000 Automatic Voltage Regulator (AVR) platform. In modern power generation and excitation control architectures, the integrity of the power supply layer is foundational to every upstream and downstream function — from the central processing unit’s real-time regulation loops to the field excitation output stage. This module does not operate in isolation; it is the electrical backbone that sustains the entire UNITROL 6000 control hierarchy, ensuring that signal processing, I/O scanning, communication exchange, and human-machine interface operations all receive stable, conditioned power under both steady-state and transient grid conditions.

Within a complete UNITROL 6000 system architecture, the UNS0868B-P V2 interfaces directly with the main controller board — typically the UNS0880B-P CPU module — providing the regulated DC rails required for deterministic control execution. The power supply’s output stability directly influences the accuracy of the AVR’s voltage sensing circuits, the responsiveness of the pulse-width modulation (PWM) firing signals sent to the thyristor bridge, and the reliability of the CAN or PROFIBUS DP communication links that connect the excitation controller to the plant DCS or SCADA layer. Any voltage ripple or dropout at the supply level propagates immediately into measurement noise, communication timeouts, and ultimately into generator terminal voltage instability — making the UNS0868B-P V2 a critical reliability node in the entire excitation chain.

From a system integration perspective, the UNS0868B-P V2 is designed to coexist within the UNITROL 6000 rack alongside companion modules such as the UNS0881B-P measurement and I/O board, the UNS0882B-P firing pulse interface, and the UNS0885B-P redundancy switchover module. In redundant AVR configurations — where a standby controller channel must be capable of assuming full control within milliseconds of a primary channel fault — the power supply must maintain output continuity across both active and standby rails simultaneously. The 3BHE013940R0002 variant is specifically rated for this dual-channel power architecture, making it the correct selection for generator excitation systems where N+1 redundancy is a contractual or grid-code requirement.

At the network and communication layer, the UNITROL 6000 platform typically exchanges real-time data with plant-level systems via PROFIBUS DP, Modbus RTU, or IEC 61850 GOOSE messaging, depending on the substation or power plant automation standard in use. The UNS0868B-P V2 ensures that the communication gateway modules — such as the UNS0890B-P fieldbus interface card — receive uninterrupted power, preventing communication loss events that could trigger false protection trips or operator alarms. In substations where the UNITROL 6000 is integrated with ABB’s MicroSCADA Pro or Symphony Plus DCS, power supply stability is a prerequisite for maintaining the cyclic data exchange that feeds the operator HMI with live excitation current, reactive power output, and AVR mode status.

For field engineers and system integrators, the UNS0868B-P V2 supports hot-swap replacement procedures within the UNITROL 6000 rack when the system is configured in redundant mode, minimizing planned outage windows during scheduled maintenance. The module’s front-panel LED diagnostics provide immediate visual confirmation of output rail status, simplifying fault isolation during commissioning and annual maintenance inspections. Compatibility with the UNITROL 6000’s built-in self-test routines means that power supply health can be monitored continuously through the ABB Service Interface Tool (SIT) without requiring physical intervention at the panel.

Long-term inventory availability is a key consideration for power plant operators managing 20-to-30-year asset lifecycles. ZYPLC maintains dedicated stock of the UNS0868B-P V2 3BHE013940R0002 to support both emergency replacement and planned maintenance programs, with all units covered by a 12-Month Warranty and full system integration support — meaning our technical team can assist with rack configuration verification, firmware compatibility checks, and system-level commissioning guidance to ensure the replacement module performs identically to the original factory installation.

Product Specification Table

System Compatibility Notes

The UNS0868B-P V2 achieves its full value only when evaluated within the complete UNITROL 6000 system architecture. At the control layer, the UNS0880B-P CPU module executes the AVR’s closed-loop voltage regulation algorithm, consuming the stable DC rails delivered by the UNS0868B-P V2 to maintain microsecond-level timing accuracy in its control cycle. The UNS0881B-P measurement board digitizes generator terminal voltage and current signals, feeding the CPU with the real-time feedback required for reactive power and power factor control — a function that collapses entirely if the measurement board loses its supply voltage mid-cycle.

At the firing pulse interface layer, the UNS0882B-P thyristor firing module translates the CPU’s PWM commands into synchronized gate pulses for the excitation thyristor bridge, a process that demands jitter-free power to maintain firing angle precision across all six thyristor phases. Simultaneously, the UNS0885B-P redundancy module monitors both the active and standby controller channels, executing bumpless transfer to the standby channel within one control cycle if a primary channel fault is detected — a switchover that depends entirely on both channels receiving continuous, stable power from their respective UNS0868B-P V2 supplies.

At the I/O and signal conditioning layer, the UNS0890B-P fieldbus gateway manages the PROFIBUS DP or Modbus RTU data exchange with the plant DCS, while discrete I/O terminal modules handle start/stop commands, protection relay interlocks, and alarm outputs to the substation control room. The UNS0868B-P V2 ensures all these modules share a common, low-noise power reference, eliminating ground loop interference that could corrupt analog measurement signals or cause spurious digital I/O transitions. In installations where an ABB CP600 or CP635 HMI panel is mounted on the excitation cubicle door, the 24 VDC rail from the power supply also feeds the HMI’s backlight and touch controller, maintaining operator visibility during grid disturbance events when reliable excitation control is most critical. Where the excitation system interfaces with a plant-wide ABB AC800M controller via the Control Network (CN), the UNS0868B-P V2’s stable output prevents the communication watchdog timeouts that would otherwise force the AVR into manual fallback mode.

Industrial Application Notes

In thermal and hydroelectric power generation, the UNITROL 6000 with UNS0868B-P V2 is deployed on synchronous generators ranging from 10 MVA to over 1,000 MVA, where excitation system reliability directly determines grid voltage support capability and compliance with grid code reactive power obligations. The power supply’s wide-range AC/DC input allows it to draw from either the station service AC bus or the substation battery-backed DC bus, ensuring excitation control continuity during station blackstart sequences.

In petrochemical and offshore platform applications, where generator sets must maintain island-mode operation with no grid reference, the UNITROL 6000’s voltage regulation accuracy — sustained by the UNS0868B-P V2’s stable output — is the primary defense against voltage collapse during large motor starting events. The module’s industrial temperature rating and vibration tolerance make it suitable for installation in offshore control rooms subject to mechanical shock from wave action and diesel generator vibration.

In mining and metallurgical facilities, where large synchronous motors driving ball mills, crushers, and hoists are started across-the-line or via soft-starter, the reactive power demand transients impose severe voltage regulation challenges on the local generation system. The UNITROL 6000, powered by the UNS0868B-P V2, provides the fast excitation response required to suppress these voltage dips, protecting sensitive process instrumentation and preventing nuisance trips of variable frequency drives on adjacent feeders.

In water treatment and pumping stations with embedded generation from biogas or small hydro, the UNITROL 6000 platform enables grid-parallel and island-mode operation with automatic transfer, supported by the power supply’s ability to maintain control system operation across the full range of auxiliary supply voltage variations typical of rural or weak-grid installations.

In packaging and process control lines where co-generation units supply local plant power, the UNS0868B-P V2 ensures the excitation controller remains operational through production-related load steps, maintaining terminal voltage within the tight tolerance bands required by servo drives and precision weighing systems on the same bus.

Product Compatibility FAQ

Q1: Is the UNS0868B-P V2 3BHE013940R0002 directly interchangeable with earlier UNITROL 6000 power supply variants?
The V2 designation indicates a revised hardware version with enhanced EMC filtering and improved output regulation compared to the original UNS0868B-P. In most UNITROL 6000 rack configurations, the V2 is a drop-in replacement for the V1 variant, as the mechanical form factor, connector pinout, and output rail specifications are maintained for backward compatibility. However, it is recommended to verify the rack backplane revision and firmware version of the UNS0880B-P CPU module before substitution, as certain early firmware releases may require an update to recognize the V2 power supply’s diagnostic register map. ZYPLC’s system integration support includes pre-shipment compatibility verification for your specific rack serial number and firmware baseline.

Q2: Can the UNS0868B-P V2 support a fully redundant dual-power-supply configuration, and what is the switchover behavior?
Yes. The UNITROL 6000 rack supports N+1 power supply redundancy by installing two UNS0868B-P V2 modules in adjacent rack slots, with their outputs connected in parallel through an internal ORing diode circuit on the rack backplane. Under normal operation, both modules share the load equally. If one module fails, the surviving module assumes full load within one switching cycle (typically less than 1 ms), with no interruption to the CPU’s control execution or the fieldbus communication cycle. The failed module can be replaced under power in redundant configurations without requiring a generator shutdown, provided the replacement procedure follows the UNITROL 6000 maintenance manual sequence. The 12-Month Warranty covers both modules in a redundant pair.

Q3: What long-term maintenance and spare parts strategy is recommended for the UNS0868B-P V2 in a 25-year power plant lifecycle?
ABB’s recommended practice for UNITROL 6000 installations is to maintain at least one spare UNS0868B-P V2 per installed rack on-site, with a maximum storage period of 10 years under controlled conditions (15–25°C, relative humidity below 75%, no condensation). For plants with multiple generating units sharing the same excitation platform, a centralized spare pool of two to three units is typically sufficient to cover unplanned failures across the fleet. ZYPLC maintains continuous stock of the 3BHE013940R0002 to support both emergency dispatch (typically 3–5 business days internationally) and planned annual maintenance procurement cycles. All units supplied by ZYPLC carry a 12-Month Warranty from the date of shipment, with full system integration support available throughout the warranty period for commissioning verification, fault diagnosis, and firmware alignment.
