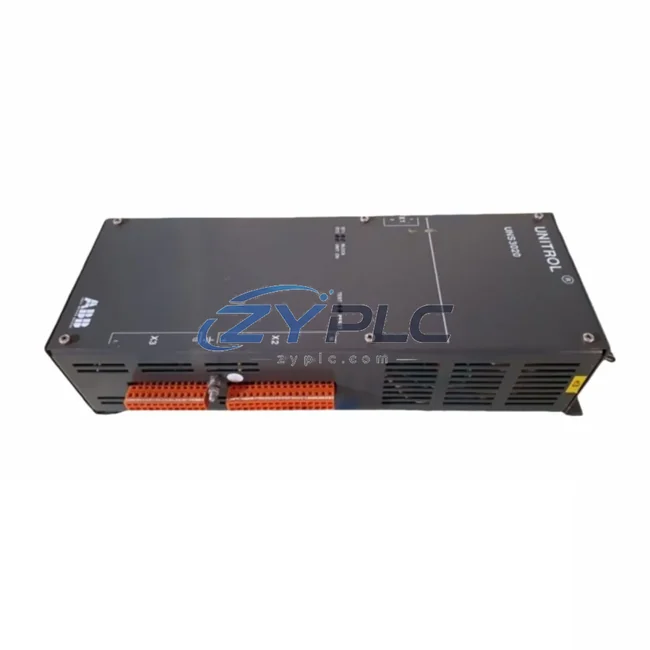

ABB UNS3020A-Z HIEE205010R0001 Voltage Regulator for Unitrol

ABB UNS3020A-Z HIEE205010R0001 Voltage Regulator for Unitrol: Compatibility and Replacement Notes

The ABB UNS3020A-Z HIEE205010R0001 is a precision excitation and automatic voltage regulation (AVR) module engineered for deployment within ABB’s Unitrol excitation control platform. Rather than functioning as a standalone component, this module is designed to operate as an integrated node within a layered generator control architecture — coordinating with upstream power management systems, downstream field winding circuits, and lateral communication networks to deliver consistent voltage stability, fault-tolerant redundancy, and long-term operational reliability across demanding industrial environments.

In modern power generation and industrial automation facilities, voltage regulation is not a peripheral function — it is a foundational layer of the entire control hierarchy. The UNS3020A-Z HIEE205010R0001 fulfills this role by providing closed-loop AVR functionality that interfaces directly with the generator excitation circuit while simultaneously exchanging real-time status data with supervisory control systems, protection relays, and human-machine interface (HMI) platforms. This system integration capability ensures that voltage regulation decisions are made not in isolation, but in full awareness of system-wide operating conditions.

Product Specification Table

System Compatibility Notes

The UNS3020A-Z HIEE205010R0001 achieves its highest operational value when deployed as part of a fully coordinated Unitrol excitation system architecture. At the control layer, this module interfaces with the ABB Unitrol 1000 or Unitrol 5000 series excitation controllers, receiving setpoint commands and transmitting real-time feedback on terminal voltage, reactive power output, and field current status. The excitation controller acts as the supervisory node, while the UNS3020A-Z HIEE205010R0001 executes the precise field current adjustments required to maintain voltage stability within defined tolerance bands.

At the I/O layer, the module connects to analog and digital I/O boards within the Unitrol rack system — such as the HIEE300936R0001 analog input board and HIEE300937R0001 digital output board — enabling real-time acquisition of generator terminal voltage, stator current, and power factor signals. These signals are processed internally and used to compute the corrective excitation output, ensuring that the generator responds dynamically to load changes, fault events, and grid disturbances without manual intervention.

At the network and communication layer, the UNS3020A-Z HIEE205010R0001 supports integration with plant-level SCADA systems and distributed control systems (DCS) via the Unitrol communication gateway. In facilities running ABB’s System 800xA or AC500 PLC platform, the excitation module can be monitored and commanded remotely through standardized fieldbus protocols, enabling centralized supervision of multiple generator units from a single engineering workstation. This architecture eliminates the need for dedicated local operator panels at each generator, reducing both capital expenditure and long-term maintenance overhead.

At the power supply layer, the module is supported by redundant DC power supply units within the Unitrol cabinet — typically the HIEE300024R0001 or equivalent Unitrol power supply board — ensuring that excitation control remains operational even during partial power supply failures. This redundancy is critical in utility-scale power generation environments where generator trip events carry significant financial and operational consequences.

At the human-machine interface layer, operators interact with the excitation system through ABB CP600 series HMI panels or through the System 800xA operator workplace, where real-time voltage regulation trends, alarm histories, and setpoint adjustments are displayed in a unified graphical environment. The UNS3020A-Z HIEE205010R0001 contributes structured data to this interface layer, ensuring that operators have full visibility into excitation system performance without requiring direct access to the control cabinet.

At the protection and relay layer, the module coordinates with ABB REG series generator protection relays, sharing terminal voltage and field current data to enable coordinated under-excitation limiting (UEL), over-excitation limiting (OEL), and power system stabilizer (PSS) functions. This multi-layer coordination ensures that the excitation system responds correctly to both normal operating transients and abnormal fault conditions, protecting the generator from damage while maintaining grid stability.

Industrial Application Notes

Power Generation and Utility Substations: In thermal, hydro, and gas turbine power plants, the UNS3020A-Z HIEE205010R0001 serves as the primary AVR module within the generator excitation system. It maintains terminal voltage within ±0.5% of the setpoint during steady-state operation and responds to load rejection events within milliseconds, preventing overvoltage conditions that could damage generator windings or connected transformer equipment. In grid-connected applications, the module supports reactive power sharing between parallel generators, enabling stable load distribution across multi-unit power stations.

Petrochemical and Refinery Facilities: In large petrochemical complexes with captive power generation, the UNS3020A-Z HIEE205010R0001 provides continuous voltage regulation for process-critical motor loads, including large compressor drives, pump motors, and reactor agitators. The module’s ability to maintain stable terminal voltage under rapidly varying load conditions is essential in these environments, where voltage fluctuations can trigger process upsets, motor protection trips, and unplanned production shutdowns.

Mining and Metallurgical Operations: In mining facilities with on-site diesel or gas generator sets, the UNS3020A-Z HIEE205010R0001 ensures stable voltage supply to high-power loads such as ball mills, crushers, hoists, and electric shovels. The module’s fast response time and robust excitation control algorithm maintain voltage stability even during the high inrush current events associated with large motor starts, reducing the risk of voltage collapse in isolated power systems.

Water Treatment and Municipal Infrastructure: In water treatment plants and pumping stations with standby generator systems, the UNS3020A-Z HIEE205010R0001 provides reliable excitation control during grid outages, ensuring that critical pumping and treatment processes continue without interruption. The module’s compatibility with the Unitrol platform’s automatic transfer and synchronization functions enables seamless transition between grid-connected and island operating modes.

Product Compatibility FAQ

Q1: Is the UNS3020A-Z HIEE205010R0001 compatible with both Unitrol 1000 and Unitrol 5000 series excitation controllers?
The UNS3020A-Z HIEE205010R0001 is designed for the ABB Unitrol excitation platform and is compatible with Unitrol series controllers that share the HIEE-series module architecture. Compatibility with specific Unitrol 1000 or Unitrol 5000 configurations depends on the firmware version and rack backplane specification of the installed system. We recommend verifying the existing system’s hardware revision and consulting the Unitrol system documentation before installation. Our technical team can assist with compatibility verification as part of the pre-delivery process covered under the warranty terms confirmed during quotation program.

Q2: Can this module be integrated into an existing DCS or SCADA architecture without replacing the entire excitation system?
Yes. The UNS3020A-Z HIEE205010R0001 supports system integration with plant-level DCS and SCADA systems through the Unitrol communication gateway. In most cases, the module can be added to an existing Unitrol rack system and configured to communicate with the plant control network via PROFIBUS DP or Modbus RTU without requiring a full excitation system replacement. Integration parameters, including communication addresses, scaling factors, and alarm thresholds, are configured through the Unitrol engineering software during commissioning. This approach minimizes installation downtime and preserves the existing control architecture investment.

Q3: What does the warranty terms confirmed during quotation cover, and what support is available for long-term maintenance?
The warranty terms confirmed during quotation covers manufacturing defects, component failures, and functional non-conformance under normal operating conditions from the date of delivery. During the warranty period, defective units are repaired or replaced at no additional cost. For long-term maintenance, we recommend maintaining a spare UNS3020A-Z HIEE205010R0001 module on-site to minimize generator downtime in the event of an unexpected failure. Our inventory supply program ensures consistent availability of Unitrol-series modules, including associated I/O boards, power supply units, and communication components, supporting planned maintenance cycles and emergency replacement requirements over the full operational life of the excitation system.
