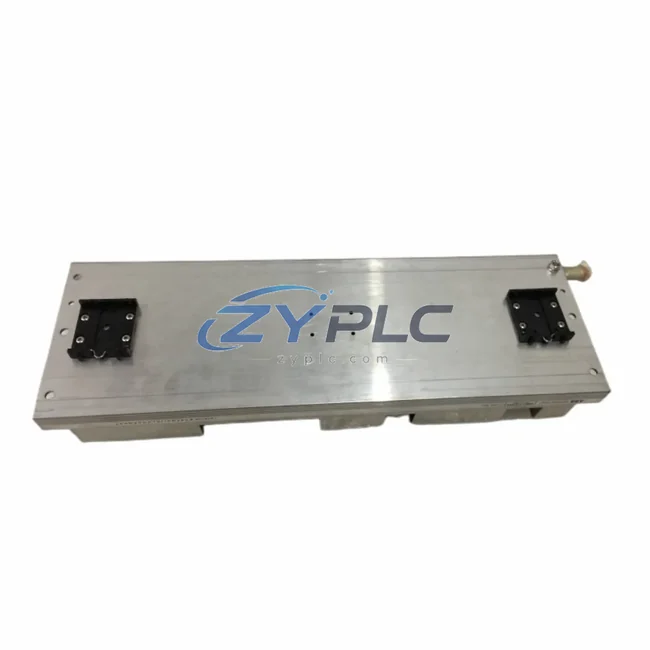

The ABB UPC090AE01 (HIEE300661R1) Binary Field Bus Coupler is a precision-engineered communication interface module designed to serve as a critical bridge within the ABB Advant OCS and MOD 300 distributed control system architecture. Rather than functioning as a standalone component, the UPC090AE01 is conceived as a system-compatible element that integrates seamlessly across the control layer, I/O layer, network layer, and field device layer — ensuring consistent signal flow, reliable data exchange, and long-term operational stability across complex industrial automation environments.

In a fully realized Advant OCS control architecture, the UPC090AE01 occupies the field bus communication layer, acting as the coupler between the binary I/O subsystem and the higher-level process bus. It works in close coordination with the AC 450 or AC 410 controller units at the control layer, receiving process data from binary input/output modules such as the DI810 and DO810 series, and forwarding structured data packets upstream to the Advant Fieldbus 100 (AF 100) network. This layered communication design ensures that field-level signals — from limit switches, solenoid valves, motor contactors, and relay outputs — are accurately represented at the supervisory level without latency or data loss.

The UPC090AE01 is typically rack-mounted within the S100 I/O station or compatible Advant OCS subrack assemblies, where it interfaces directly with the backplane bus. Its binary coupler function supports both digital input scanning and digital output command delivery, making it indispensable in systems where high-density binary signal management is required. When paired with the CI532V04 or CI534V02 communication interface modules, the UPC090AE01 enables structured, deterministic communication across the AF 100 fieldbus, supporting real-time control loops with cycle times suitable for process and discrete manufacturing applications.

Product Specification Table

System Compatibility Notes

The UPC090AE01 achieves its full value when considered within the broader Advant OCS system architecture. At the control layer, the AC 450 process controller or the AC 410 compact controller manages the overall execution of control strategies, issuing commands and collecting process feedback through the AF 100 fieldbus. The UPC090AE01 serves as the terminal coupler for binary I/O stations, ensuring that the controller’s digital command signals reach the correct output modules — such as the DO810 digital output module — and that binary feedback from DI810 digital input modules is reliably returned upstream.

Power integrity across the I/O station is maintained by the SD821 or SD822 power supply units, which provide stable 24 VDC to the subrack backplane. The UPC090AE01 draws its operating power directly from this backplane, eliminating the need for external power wiring and simplifying cabinet layout. In redundant system configurations, a secondary UPC090AE01 can be deployed in a hot-standby arrangement, ensuring that binary field bus communication is maintained even in the event of a primary coupler failure — a critical requirement in continuous process industries such as petrochemical refining or power generation.

At the human-machine interface layer, operator workstations running ABB Advant Station 500 Series software receive real-time binary status data aggregated through the UPC090AE01 and the AF 100 network. This data is used to drive process graphics, alarm management, and trend displays, giving operators accurate visibility into field device states. The CI532V04 communication interface module, installed in the controller subrack, manages the AF 100 network segment to which the UPC090AE01 is connected, coordinating polling cycles and ensuring deterministic data delivery.

For systems requiring expansion, additional S100 I/O stations — each equipped with their own UPC090AE01 couplers — can be added to the AF 100 network segment, extending the binary I/O capacity without modifying the controller hardware. This modular expansion capability is a defining feature of the Advant OCS architecture, allowing engineers to scale the system incrementally as process requirements grow.

Industrial Application Notes

The UPC090AE01 is deployed across a wide range of industrial sectors where the ABB Advant OCS and MOD 300 platforms have established a long operational history. In power generation facilities — including thermal, hydroelectric, and combined-cycle plants — the module manages binary signals from turbine protection relays, generator breaker status contacts, and auxiliary equipment interlocks, providing the control system with accurate real-time data for automatic generation control and protection logic.

In petrochemical and refinery applications, the UPC090AE01 handles binary I/O for emergency shutdown (ESD) systems, where the integrity of digital signal transmission is paramount. Its deterministic communication over the AF 100 fieldbus ensures that shutdown commands are executed within defined response times, meeting the requirements of IEC 61511 functional safety standards when integrated within a validated safety architecture.

Water treatment and municipal utility plants rely on the UPC090AE01 to manage pump start/stop commands, valve open/close feedback, and level switch signals across geographically distributed I/O stations. The module’s compatibility with the Advant OCS distributed architecture allows a single AC 450 controller to supervise multiple remote I/O stations connected via AF 100, reducing the need for dedicated local controllers at each pump station or treatment unit.

In metallurgical and mining operations, where harsh environmental conditions and high electromagnetic interference are common, the UPC090AE01’s robust industrial design and backplane-integrated power supply contribute to reliable operation in demanding cabinet environments. Maintenance teams benefit from the module’s straightforward replacement procedure — a spare UPC090AE01 can be installed and brought online without requiring controller reconfiguration, minimizing process downtime during corrective maintenance activities.

Product Compatibility FAQ

Q1: Is the UPC090AE01 compatible with both Advant OCS and MOD 300 system architectures?
Yes. The UPC090AE01 (HIEE300661R1) is designed for use within both the ABB Advant OCS and MOD 300 distributed control system platforms. Both architectures share the S100 I/O station hardware standard and the AF 100 fieldbus protocol, allowing the UPC090AE01 to function as a binary field bus coupler in either environment. Engineers migrating from MOD 300 to Advant OCS can retain existing UPC090AE01 modules without hardware replacement, provided the subrack and backplane configurations are compatible.

Q2: Can the UPC090AE01 be used in a redundant fieldbus configuration, and what additional components are required?
The UPC090AE01 supports redundant deployment within the Advant OCS architecture. A redundant configuration typically requires a secondary UPC090AE01 installed in a parallel I/O station, coordinated by a redundant CI532V04 or CI534V02 communication interface module at the controller level. The AF 100 fieldbus itself supports dual-channel redundancy, and the AC 450 controller’s redundancy management software handles automatic switchover in the event of a primary coupler or fieldbus segment failure. This configuration is recommended for critical process applications where binary I/O availability must be maintained continuously.
