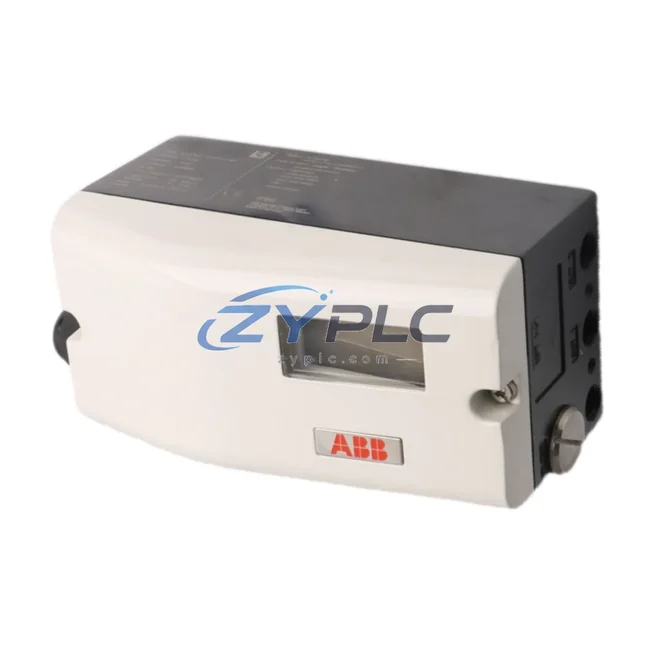

ABB V18345-1010521001 Positioner TZIDC: Precision Valve Control for Optimized Production Efficiency

The ABB V18345-1010521001 is an electro-pneumatic positioner from ABB’s renowned TZIDC V18345 Series, engineered to deliver precise, maintenance-focused valve positioning in demanding industrial process environments. By converting electrical control signals into accurate pneumatic actuator movement, this positioner eliminates valve hunting, reduces compressed air consumption, and ensures that every control loop operates at peak efficiency — directly contributing to lower energy costs and improved production line throughput.

In modern manufacturing and process plants, valve positioners are often overlooked as energy consumers. Poorly calibrated or aging positioners can cause excessive air bleed, erratic valve travel, and control loop instability — all of which translate into measurable unplanned downtime and reduced equipment utilization. The ABB V18345-1010521001 addresses these challenges through its intelligent self-calibration algorithm, tight hysteresis control, and robust HART communication capability, enabling seamless integration into condition monitoring and asset management platforms.

Product Specification Table

System Compatibility and Application

The ABB V18345-1010521001 does not operate in isolation — its true maintenance planning value is realized when it functions as part of a coordinated automation architecture. In a typical process plant, the positioner receives its 4–20 mA setpoint from a ABB AC500 PLC or a Siemens S7-1500 PLC, which executes the process control strategy and issues valve position commands based on real-time process variables. The HART communication layer of the V18345-1010521001 allows the PLC or a dedicated asset management system to continuously read back actual valve position, travel counter data, and diagnostic alerts — enabling predictive maintenance scheduling without manual inspection.

On the drive side, process pumps and compressors feeding the pipeline are typically governed by ABB ACS880 variable frequency drives (VFDs), which modulate motor speed in response to flow demand. When the V18345-1010521001 accurately positions the control valve, the upstream VFD can operate at a lower average speed setpoint, directly reducing motor load. This coordinated valve-drive interaction is one of the most effective strategies for cutting energy costs in fluid handling systems.

For power quality monitoring, plants often deploy ABB M2M energy meters or Schneider Electric PowerLogic PM8000 power meters at the motor control center (MCC) level. These meters capture real-time kWh, power factor, and harmonic data, providing the energy baseline against which positioner-driven savings can be quantified. The data is typically aggregated by a Siemens SIMATIC WinCC SCADA or ABB System 800xA DCS, where operators can visualize valve position trends alongside operating load curves on a single HMI dashboard.

Field I/O modules such as the ABB S800 I/O or Siemens ET 200SP distributed I/O handle the analog signal conditioning between the control system and field devices including the V18345-1010521001. For plants using PROFIBUS PA or Foundation Fieldbus segment architectures, the TZIDC series also offers compatible variants, allowing the positioner to participate in segment-level power budgeting and intrinsic safety calculations. The result is a fully instrumented, energy-transparent control loop from the PLC output card all the way to the valve stem.

Maintenance and Replacement Notes

Consider a chemical dosing line running 24/7 with twelve control valves managing reagent flow to multiple reactors. If each valve positioner bleeds compressed air at a rate of 0.2 Nm³/h due to poor calibration or worn internals, the total air waste across the line amounts to over 21,000 Nm³ per year — a significant compressor load and energy cost. Replacing legacy positioners with the ABB V18345-1010521001, which maintains steady-state air consumption at ≤ 0.05 Nm³/h, reduces that waste by up to 75% per valve, translating directly into compressor runtime reduction and lower electricity bills.

Beyond compressed air savings, precise valve positioning improves production line rhythm (takt time). When a control valve overshoots or oscillates due to positioner hysteresis, the downstream process variable — temperature, pressure, flow, or level — fluctuates outside its target band. The control system then compensates with larger corrective actions, increasing actuator wear and reducing batch consistency. The V18345-1010521001’s self-tuning algorithm minimizes hysteresis and dead band, stabilizing the process variable and allowing the production line to maintain its designed takt time with fewer interventions.

Predictive maintenance is another key benefit. The positioner’s integrated diagnostics continuously track valve travel accumulation, friction trends, and actuator response time. When these parameters drift beyond defined thresholds, the HART interface flags the condition to the asset management system — allowing maintenance teams to schedule valve service during planned downtime rather than reacting to unexpected failures. This shift from reactive to predictive maintenance reduces unplanned downtime, improves overall equipment effectiveness (OEE), and lowers the total cost of ownership over the valve assembly’s lifecycle.

Every ABB V18345-1010521001 unit supplied by ZYPLC is individually tested prior to shipment, verifying input signal response, air consumption, and HART communication integrity. Units are held in climate-controlled inventory and dispatched with full documentation. A warranty terms confirmed during quotation covers all supplied units, giving procurement and maintenance teams confidence in both product quality and supply continuity.
