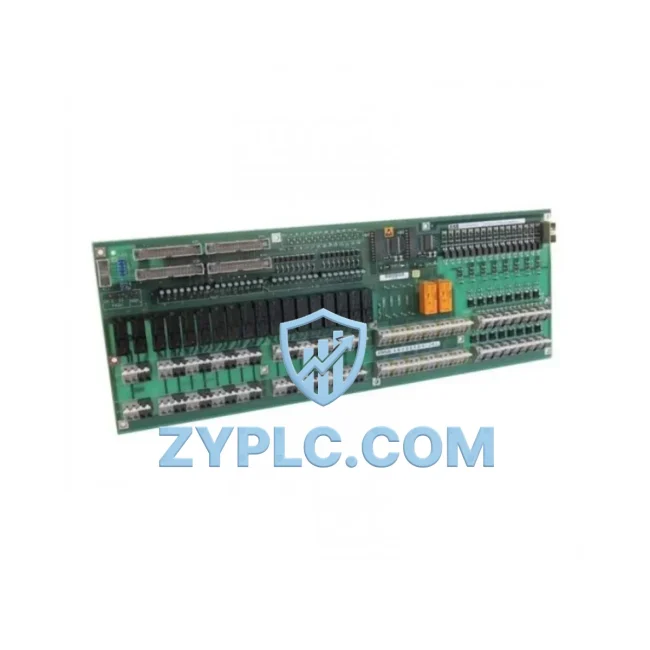

ABB XF D213 A 3BHE028122R0001 Speed Sensor Interface for Unitrol Systems

ABB XF D213 A 3BHE028122R0001 Speed Sensor Interface: Industrial Data Link for Unitrol Excitation Systems

The ABB XF D213 A (3BHE028122R0001) is a precision-engineered Speed Sensor Interface module designed for integration within ABB’s Unitrol excitation control platform. As a critical node in the industrial data chain, this module bridges rotating machinery speed feedback signals with the digital control layer — enabling real-time monitoring, closed-loop excitation regulation, and seamless communication between field devices and supervisory systems. In smart factory and power generation environments where milliseconds matter, the XF D213 A delivers the signal integrity and protocol compatibility that modern automation demands.

Sourced directly from ABB’s Swedish engineering heritage, the 3BHE028122R0001 is built to operate reliably in high-vibration, high-temperature, and electromagnetically noisy industrial environments. Whether deployed in hydroelectric generators, synchronous motors, or large-scale industrial drives, this interface unit ensures that speed data flows accurately from the sensor layer to the Unitrol controller — and ultimately to SCADA and HMI platforms for operator visibility and remote diagnostics.

Network Communication Table

Connected Automation Data Flow

In a typical power generation or heavy industrial automation architecture, the ABB XF D213 A sits at the intersection of the physical and digital worlds. Speed signals originating from magnetic pickup sensors or incremental encoders mounted on the generator shaft are captured by the XF D213 A and converted into precise digital feedback values. These values are transmitted in real time to the ABB Unitrol 5000 or Unitrol 6000 excitation controller, which uses the data to regulate field current and maintain stable voltage output under varying load conditions.

Within the broader control architecture, the Unitrol controller communicates upstream via PROFIBUS DP or the ABB internal fieldbus to the ABB AC800M process controller — a platform widely used in power plant DCS environments. The AC800M aggregates data from multiple subsystems, including the ABB SACE Emax circuit breaker protection relays and ABB REG670 generator protection IEDs, before forwarding structured process data to the plant’s ABB System 800xA SCADA/DCS platform.

At the HMI layer, operators interact with real-time speed, voltage, and excitation current data through ABB CP600 or ABB CP635 operator panels, which display live trends and alarm states sourced directly from the Unitrol excitation chain. When an anomaly is detected — such as overspeed, underspeed, or sensor signal loss — the XF D213 A’s feedback loop triggers immediate alarm propagation through the ABB Unitrol alarm management module, alerting both local HMI and remote SCADA operators simultaneously.

For remote diagnostics and predictive maintenance, the data chain extends further: the AC800M forwards aggregated machine health data to edge gateway devices compatible with ABB Ability™ Asset Health Center, enabling cloud-based condition monitoring without disrupting the real-time control loop. In multi-generator plant configurations, the XF D213 A modules across multiple units feed into a unified ABB Network Manager topology, giving plant engineers a single-pane view of all rotating machine speeds and excitation states across the facility.

This end-to-end data flow — from shaft-mounted sensor through the XF D213 A interface, into the Unitrol controller, across the fieldbus to the DCS, and up to SCADA and cloud analytics — represents the backbone of modern power plant digitalization. The 3BHE028122R0001 is not merely a signal conditioner; it is a foundational connectivity component that makes real-time machine intelligence possible.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in legacy power generation and heavy industrial facilities is data isolation — the condition where critical machine parameters such as rotor speed, field current, and excitation voltage exist only within proprietary controller memory, invisible to plant-wide SCADA systems and inaccessible for remote diagnostics. The ABB XF D213 A (3BHE028122R0001) directly addresses this problem by providing a standardized, high-integrity speed signal interface that integrates natively with the Unitrol excitation platform’s communication stack.

In sites where multiple generations of control equipment coexist — older analog excitation systems alongside modern digital controllers — the XF D213 A serves as a protocol bridge, accepting legacy pulse-type speed sensor outputs and presenting them in a format compatible with contemporary digital control and communication architectures. This eliminates the need for costly full-system replacements and allows phased modernization strategies where the excitation control layer is upgraded while preserving existing sensor infrastructure.

For production line transparency, the XF D213 A enables continuous speed monitoring that feeds directly into OEE (Overall Equipment Effectiveness) calculations at the SCADA level. Plant managers gain visibility into generator performance trends, enabling data-driven maintenance scheduling rather than reactive breakdown response. Remote monitoring capabilities — enabled by the Unitrol-to-AC800M-to-SCADA data chain — allow engineering teams to diagnose excitation anomalies from control rooms or remote locations without requiring physical access to the generator floor.

System expansion is equally straightforward: additional XF D213 A modules can be integrated into existing Unitrol racks without architectural redesign, supporting multi-machine monitoring expansion as plant capacity grows. Each unit ships pre-tested and validated against ABB factory acceptance criteria, ensuring plug-and-play compatibility with existing Unitrol installations and minimizing commissioning time on site.

Industrial Connectivity FAQ

Q1: What communication protocols does the ABB XF D213 A (3BHE028122R0001) support, and is it compatible with third-party SCADA systems?
The XF D213 A is designed as a speed sensor input interface within the ABB Unitrol excitation platform. It processes pulse/frequency signals from encoders or magnetic pickups and delivers speed data to the Unitrol controller via ABB’s internal module bus. Upstream SCADA connectivity — including OPC-UA, PROFIBUS, or Modbus TCP — is handled at the Unitrol controller or AC800M level, making the overall system compatible with most industrial SCADA platforms including ABB System 800xA, Siemens WinCC, and Wonderware.

Q2: How does the XF D213 A ensure network stability and signal integrity in high-EMI environments?
The module is engineered to ABB’s industrial-grade EMC standards, incorporating shielded signal paths and noise-rejection circuitry suitable for the high electromagnetic interference levels typical of generator halls and motor drive environments. Signal integrity is maintained across the full operating temperature and vibration range specified for Unitrol platform components, ensuring stable speed feedback even under demanding electrical conditions.

Q3: Can the ABB XF D213 A be integrated into an existing Unitrol system without full system downtime?
In most Unitrol rack configurations, the XF D213 A can be hot-swapped or installed during scheduled maintenance windows without requiring a full excitation system shutdown. However, specific integration procedures depend on the Unitrol variant (5000, 6000, or 1000 series) and site safety protocols. We recommend consulting ABB commissioning documentation or contacting our technical team for site-specific guidance prior to installation.

Q4: What warranty and pre-shipment testing does the ABB XF D213 A (3BHE028122R0001) include?
Every ABB XF D213 A unit supplied by ZYPLC includes a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions. Prior to shipment, each module undergoes functional verification testing to confirm signal input response, communication integrity, and compatibility with Unitrol system parameters. Units are shipped in anti-static protective packaging with full traceability documentation.
