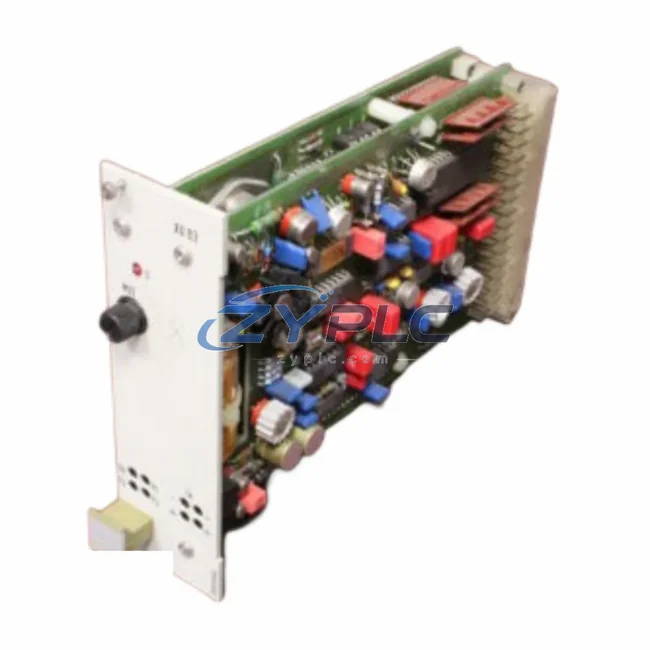

The ABB H&B Contronic XU03 (XU 03) is a dedicated digital output module engineered for deployment within the ABB Hartmann & Braun Contronic DCS platform. Rather than functioning as a standalone component, the XU03 occupies a critical position within the layered control architecture — bridging the controller layer and the field execution layer to deliver reliable, high-integrity discrete output signals across demanding industrial environments. Its design philosophy centers on system consistency, modular expandability, and long-term maintainability, making it an essential building block for engineers constructing or extending Contronic-based automation systems.

Product Specification Table

System Compatibility Notes

In a fully integrated Contronic DCS architecture, the XU03 digital output module does not operate in isolation. Its performance and reliability are directly tied to the coherence of the surrounding system layers. At the controller level, the Contronic central processing unit — such as the XC01 or XC02 CPU modules — generates the discrete command signals that are routed through the Contronic backplane to the XU03. The backplane itself, typically a Contronic rack chassis (e.g., XR-series rack), provides the physical and electrical backbone that ensures deterministic signal delivery between the CPU and all I/O modules.

On the input side, digital input modules such as the XE03 or XE04 work in tandem with the XU03 to form a complete discrete I/O subsystem — capturing field status signals and feeding them back to the controller while the XU03 drives actuators, solenoids, and relay coils in the field. For analog process variables, the XA01 or XA02 analog input modules complement the digital layer, ensuring that the controller has full visibility of both continuous and discrete process states.

Power integrity is maintained through dedicated Contronic power supply modules (e.g., XP01 or XP02), which provide regulated 24 VDC to the I/O rack and field circuits. In redundant system configurations, dual power supply modules are deployed in parallel to eliminate single points of failure — a design practice strongly recommended for critical process applications. Communication between the Contronic DCS and higher-level SCADA or historian systems is facilitated through Contronic gateway modules or serial communication interfaces, enabling data exchange over PROFIBUS, Modbus RTU, or proprietary Contronic network protocols.

At the human-machine interface layer, ABB Contronic operator stations or compatible HMI panels provide real-time visualization of output states driven by the XU03, allowing operators to monitor actuator status, acknowledge alarms, and execute manual overrides without disrupting the automated control sequence. Terminal modules and marshalling panels connected to the XU03’s field-side terminals ensure clean, organized wiring that simplifies commissioning and reduces the risk of cross-wiring errors during installation.

Industrial Application Notes

The ABB H&B Contronic XU03 digital output module finds application across a broad spectrum of process industries where the Contronic DCS platform has been deployed. In power generation and utilities, the XU03 drives motor starters, circuit breaker trip coils, and valve actuators within turbine control and auxiliary systems — environments where output signal integrity and response time are non-negotiable. In petrochemical and refinery applications, the module controls shutdown valves, pump start/stop sequences, and burner management system outputs, operating continuously in high-temperature, high-vibration plant environments.

In water and wastewater treatment facilities, the XU03 manages pump station outputs, dosing system actuators, and sluice gate controls — applications that demand long mean-time-between-failure (MTBF) performance and minimal maintenance intervention. Metallurgical and mining operations leverage the XU03 within conveyor control systems, crusher interlocks, and ventilation fan control loops, where the module’s robust rack-mount design withstands the harsh electrical noise environments typical of heavy industry.

For manufacturing and packaging production lines, the XU03 integrates into machine control architectures where discrete output signals coordinate robotic end-effectors, pneumatic cylinders, and conveyor diverters. Its compatibility with the broader Contronic I/O ecosystem means that system engineers can expand output capacity by adding additional XU03 modules to existing racks without requiring controller reconfiguration — a significant advantage during production line upgrades or capacity expansions.

Product Compatibility FAQ

Q1: Is the XU03 compatible with all Contronic DCS rack configurations, and can it be mixed with other Contronic I/O modules in the same chassis?
Yes. The XU03 is designed for the Contronic rack-based I/O architecture and is fully compatible with standard Contronic chassis configurations. It can be installed alongside other Contronic I/O modules — including digital input modules (XE-series), analog modules (XA-series), and communication modules — within the same rack, provided slot assignments comply with the Contronic system engineering guidelines. Mixed-module configurations are standard practice in Contronic DCS installations and do not require special firmware or hardware modifications.

Q2: What commissioning steps are required when replacing an XU03 in an operational Contronic system, and how does the warranty terms confirmed during quotation apply to replacement units?
Replacing an XU03 in a live Contronic system typically requires placing the affected output group in manual mode at the operator station, physically swapping the module in the rack (hot-swap capability depends on the specific Contronic rack version — verify with system documentation), and confirming output channel status via the Contronic engineering workstation after reinsertion. All XU03 units supplied by ZYPLC are covered by a warranty terms confirmed during quotation from the date of shipment, which includes functional testing, burn-in verification, and post-sale technical support for installation and commissioning queries.

Q3: How does ZYPLC ensure long-term supply availability for the XU03, and what is the recommended inventory strategy for critical Contronic DCS installations?
ZYPLC maintains dedicated inventory of ABB H&B Contronic series modules, including the XU03, sourced through verified supply channels with full traceability. For critical process installations — particularly in power, petrochemical, and water treatment — we recommend maintaining a minimum of one spare XU03 per active rack as part of a proactive spare parts strategy. Our team can assist with multi-unit procurement planning, compatibility verification across Contronic system revisions, and coordinated delivery scheduling to align with planned maintenance windows. Contact our technical sales team at plc.sales@zyplc.com or +86 19859288691 for spare parts consultation.
