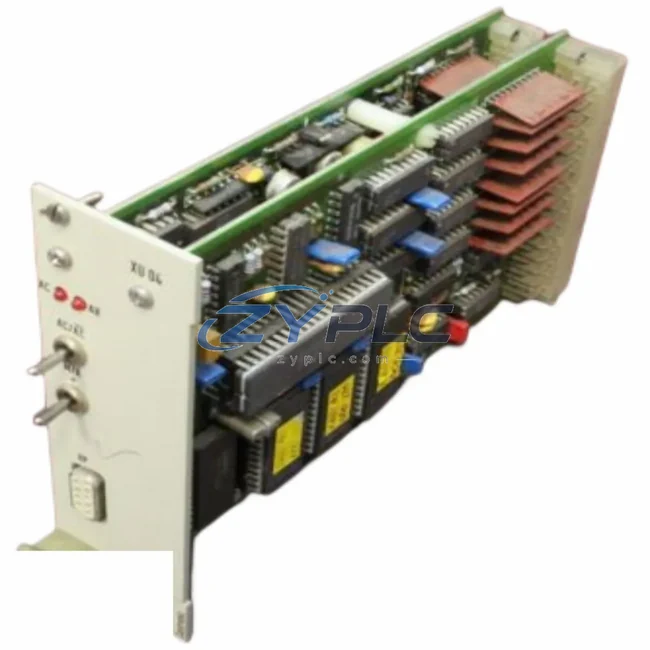

ABB XU04 Industrial Network Interface for Contronic Series

ABB XU04 Industrial Network Interface: Bridging the Industrial Data Link in Smart Factory Architectures

In modern industrial automation environments, seamless data flow between field devices, PLC controllers, remote I/O stations, HMI panels, SCADA platforms, variable frequency drives, sensors, and supervisory systems is no longer optional — it is the foundation of operational excellence. The ABB XU04 (H&B Contronic XU 04) Processor Module is engineered to serve as a critical industrial network interface within the H&B Contronic distributed control system, enabling reliable protocol conversion, real-time data transmission, and system integration across every layer of the automation hierarchy.

As a DCS communication processor, the XU04 occupies a pivotal position in the Contronic system architecture. It manages the exchange of process data between the field bus layer and the supervisory control layer, ensuring that signals from sensors, actuators, and remote I/O modules are accurately translated, time-stamped, and delivered to SCADA and HMI systems without latency or data loss. This capability is essential in industries where process transparency, alarm response time, and remote diagnostics directly impact safety and productivity.

Compatibility & Integration Notes

Connected Automation Data Flow

The ABB XU04 processor module functions as the communication backbone within a layered Contronic DCS architecture. At the field level, process signals are collected from thermocouples, pressure transmitters, flow sensors, and discrete I/O devices connected through H&B Contronic AI/AO and DI/DO I/O modules. These signals are aggregated by the XU04 and transmitted upward through the Contronic backplane bus to the central processing unit — typically a Contronic CPU module such as the XR04 or XP04 series — where control logic is executed in real time.

For facilities requiring integration with modern SCADA platforms such as Siemens WinCC, Wonderware InTouch, or iFIX, the XU04 works in conjunction with Contronic communication gateway modules that bridge the proprietary Contronic bus to standard industrial protocols including PROFIBUS DP and Modbus RTU. This protocol conversion layer is essential for connecting legacy DCS infrastructure to contemporary supervisory systems without requiring a full system replacement.

At the network layer, industrial Ethernet switches — such as those from the Hirschmann or Phoenix Contact families — provide the physical network backbone that connects SCADA servers, engineering workstations, and HMI terminals. The XU04 ensures that process data arriving at these network nodes is consistent, correctly formatted, and delivered within the cycle times required by the control application.

Remote I/O expansion is handled through Contronic remote I/O racks connected via the field bus, allowing the XU04 to manage distributed signal points across large plant areas without signal degradation. In power generation and chemical processing applications, where field devices may be located hundreds of meters from the control room, this distributed I/O capability is critical for maintaining system integrity.

Variable frequency drives — including ABB ACS series drives — can be integrated into the Contronic network through PROFIBUS or serial communication interfaces managed by the XU04, enabling centralized speed control, fault monitoring, and maintenance planning from the SCADA level. Similarly, smart field transmitters supporting HART protocol can be connected through compatible I/O modules, with the XU04 facilitating the upward transmission of both primary process values and diagnostic data.

For human-machine interface applications, Contronic operator stations and HMI panels receive real-time process data from the XU04 via the DCS network, providing operators with live process visualization, alarm management, and manual override capabilities. In facilities with redundant control architectures, a secondary XU04 module can be configured in hot-standby mode, ensuring continuous data flow even in the event of a primary module failure.

Edge computing gateways — such as those from the Moxa or Advantech industrial IoT gateway families — can be deployed alongside the Contronic network to aggregate data from the XU04 and transmit it to cloud-based analytics platforms, enabling predictive maintenance, OEE monitoring, and remote diagnostics without disrupting the real-time control layer.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in industrial automation is the existence of data silos — isolated control systems that cannot communicate with each other or with enterprise-level platforms. The ABB XU04 directly addresses this challenge by serving as the protocol translation and data aggregation point within the Contronic DCS architecture.

In facilities where multiple generations of control equipment coexist — including legacy serial-based PLCs, modern Ethernet-connected controllers, and proprietary DCS platforms — the XU04 enables a unified data flow by converting between communication protocols and normalizing data formats before transmission to the SCADA layer. This eliminates the need for manual data entry, reduces the risk of transcription errors, and provides operators and engineers with a single, consistent view of plant-wide process data.

Remote monitoring and diagnostics are significantly enhanced by the XU04’s ability to maintain continuous communication between field devices and supervisory systems. In industries such as oil and gas, water treatment, and power generation, where unplanned downtime carries severe operational and financial consequences, the ability to remotely diagnose communication faults, identify failing field devices, and initiate corrective actions without dispatching maintenance personnel to the field represents a substantial operational advantage.

Production line transparency — the ability to track process variables, equipment status, and alarm histories in real time — is another key benefit delivered by the XU04’s network interface capabilities. By ensuring that data from every connected field device is accurately represented at the SCADA and HMI levels, the XU04 supports the implementation of statistical process control, maintenance planning, and continuous improvement programs that depend on reliable, high-resolution process data.

System scalability is preserved through the modular architecture of the Contronic platform. As production capacity expands or process requirements evolve, additional I/O modules, communication gateways, and remote I/O racks can be integrated into the existing Contronic network managed by the XU04, without requiring changes to the core control architecture. This modularity protects the capital investment in the existing DCS infrastructure while providing a clear path for future expansion.

All XU04 modules supplied by ZYPLC are subject to pre-shipment functional testing, verifying communication integrity, protocol compatibility, and electrical performance before dispatch. Each unit is covered by a warranty terms confirmed during quotation, with availability subject to RFQ confirmation for immediate delivery to support urgent maintenance and system expansion requirements.

Industrial Connectivity FAQ

Q1: What communication protocols does the ABB XU04 support, and can it integrate with modern SCADA systems?
The XU04 operates on the H&B Contronic proprietary backplane bus and supports serial communication interfaces compatible with PROFIBUS and Modbus RTU through appropriate gateway modules. Integration with modern SCADA platforms including Siemens WinCC, Wonderware, and iFIX is achievable via Contronic communication gateways that bridge the proprietary bus to standard industrial Ethernet or fieldbus protocols. ZYPLC’s technical team can advise on the specific gateway configuration required for your SCADA environment.

Q2: How does the XU04 perform in terms of communication latency and network stability in demanding process control applications?
The XU04 is designed for deterministic real-time communication within the Contronic DCS architecture, with cycle times optimized for process control applications in power generation, chemical processing, and continuous manufacturing. Network stability is maintained through the Contronic backplane bus design, which isolates the control network from external electromagnetic interference. For applications requiring redundant communication paths, a dual-module configuration with hot-standby failover can be implemented to eliminate single points of failure in the communication layer.

Q3: Can the XU04 be expanded to accommodate additional I/O points or new communication requirements as the system grows?
Yes. The modular architecture of the H&B Contronic platform allows additional I/O modules, remote I/O racks, and communication gateway modules to be added to the existing network managed by the XU04 without requiring changes to the core processor configuration. This scalability makes the XU04 suitable for both small-scale process control applications and large distributed control systems with hundreds of I/O points across multiple plant areas.

Q4: What warranty and pre-shipment testing does ZYPLC provide for the XU04?
Every ABB XU04 module supplied by ZYPLC undergoes pre-shipment functional testing covering communication interface verification, protocol compatibility checks, and electrical parameter validation. Each unit is covered by a warranty terms confirmed during quotation from the date of shipment. In the event of a warranty claim, ZYPLC provides technical support and replacement coordination to minimize system downtime. Stock is maintained for shipment arranged after confirmation to support urgent maintenance and project requirements.
