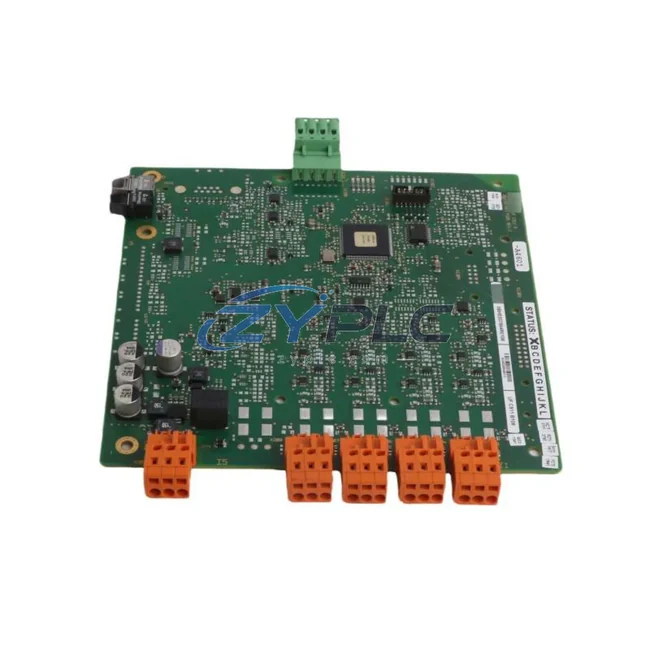

The ABB XZC827A102 (cross-reference: 3BHE038368R0102) is a dedicated excitation control board engineered for the ABB Unitrol 6000 Automatic Voltage Regulator (AVR) platform. Within a layered industrial automation architecture, this board occupies the critical control layer responsible for generator field excitation regulation, reactive power management, and voltage stability across the entire power generation system. Its design philosophy centers on seamless system integration with upstream supervisory systems and downstream power conversion equipment, ensuring that every signal transition, every control loop, and every protection response is synchronized with the broader system architecture.

In modern power plant and industrial generator control environments, the excitation control board does not operate in isolation. It is the functional core of a tightly coupled system that spans from the plant-level DCS or SCADA down through the AVR controller, the excitation power converter, the generator field winding, and back through measurement transformers to the voltage and current feedback loops. The XZC827A102 is designed to maintain coherence across all these layers, supporting both manual and automatic voltage regulation modes, power factor control, reactive current compensation, and under-excitation limiting — all within the Unitrol 6000 control framework.

Product Specification Table

System Compatibility Notes

The XZC827A102 excitation control board achieves its full performance potential only when considered as part of a coordinated, multi-layer control system. At the supervisory level, an ABB AC800M Process Controller or a third-party DCS communicates setpoints and mode commands to the Unitrol 6000 AVR system. The XZC827A102 receives these commands and translates them into precise field current references, which are then executed by the excitation power converter — typically an ABB thyristor-based converter module such as those found in the Unitrol 6080 or Unitrol 6800 series.

On the measurement side, the board interfaces with voltage transformers (VT) and current transformers (CT) installed on the generator terminals and the high-voltage bus. These measurement signals feed the internal PID control loops and protection functions embedded in the XZC827A102 firmware. The accuracy and stability of these feedback paths directly determine the quality of voltage regulation and the speed of fault response.

For redundant architectures — common in critical power generation applications such as hydroelectric plants, thermal power stations, and large industrial cogeneration systems — the Unitrol 6000 platform supports dual-channel redundancy. In such configurations, a second XZC827A102 board or a redundant Unitrol 6000 controller operates in hot-standby mode, with automatic bumpless transfer ensuring continuity of excitation control in the event of a primary channel fault. The redundancy switchover logic is coordinated through the Unitrol 6000 system bus, and status signals are typically mirrored to the plant DCS via an ABB PROFIBUS communication module or an ABB CI854 PROFIBUS interface unit.

At the human-machine interface layer, operators interact with the excitation system through an ABB Panel 800 operator terminal or through the plant-level SCADA system. Real-time parameters — including terminal voltage, reactive power output, field current, and AVR mode status — are displayed and logged, enabling both real-time supervision and post-event analysis. The XZC827A102 supports parameter configuration and firmware updates through the ABB Unitrol 6000 commissioning software, which connects via a dedicated service port on the AVR controller.

From a power supply perspective, the Unitrol 6000 excitation system requires a stable auxiliary AC supply, typically derived from the generator terminals or from a dedicated station service transformer. An ABB UPS module or a redundant power supply unit within the excitation panel ensures that the XZC827A102 and associated control electronics remain powered during generator startup sequences and grid disturbance events. Proper grounding and shielding of signal cables between the XZC827A102, the measurement transformers, and the power converter are essential for maintaining signal integrity in high-electromagnetic-interference environments.

Terminal modules and marshalling components — such as ABB NTAI05 analog input terminals or compatible third-party DIN rail terminal blocks — are used to organize field wiring connections to the excitation panel. These components simplify maintenance access and reduce the risk of wiring errors during commissioning or module replacement. When replacing the XZC827A102 in the field, engineers should follow the Unitrol 6000 hardware replacement procedure, which includes parameter backup via the commissioning software, board swap, parameter restore, and a controlled excitation test sequence before returning the generator to service.

Industrial Application Notes

The ABB XZC827A102 finds application across a wide range of industries where reliable generator excitation control is critical to operational continuity and power quality.

In thermal power generation — including coal-fired, gas turbine, and combined-cycle plants — the Unitrol 6000 AVR system with the XZC827A102 board manages terminal voltage and reactive power dispatch in coordination with the plant’s maintenance planning system. Fast AVR response is essential for maintaining grid stability during load transients and fault clearance events.

In hydroelectric power stations, the XZC827A102 supports both isolated island operation and grid-connected operation modes. The board’s under-excitation limiter and over-excitation limiter functions protect the generator from operating outside its capability curve, while the power system stabilizer (PSS) function — when enabled — damps low-frequency oscillations on interconnected power systems.

In petrochemical and refinery facilities, large synchronous motors and captive power generators rely on precise excitation control to maintain process power quality. The XZC827A102’s reactive current compensation function ensures that voltage at the point of common coupling remains within specification even during large motor starting events.

In mining and metallurgical operations, where large variable-speed drives and arc furnaces create significant harmonic and reactive power disturbances, the Unitrol 6000 system with the XZC827A102 provides robust voltage regulation that compensates for rapid load changes and maintains generator stability.

In water treatment and pumping stations with on-site generation, the XZC827A102 enables seamless transition between grid-connected and islanded operation, supporting critical infrastructure resilience requirements.

Product Compatibility FAQ

Q1: Is the XZC827A102 directly interchangeable with other Unitrol 6000 excitation control boards, and what compatibility checks are required before installation?
The XZC827A102 (3BHE038368R0102) is designed for a specific hardware revision of the Unitrol 6000 platform. Before installation, engineers should verify the Unitrol 6000 controller firmware version, the hardware revision of the existing excitation panel, and the parameter set stored in the AVR system. ABB’s Unitrol 6000 commissioning software should be used to back up all parameters prior to board replacement. If the replacement board carries a different firmware baseline, a firmware update and full recommissioning sequence — including excitation response tests and PSS tuning if applicable — may be required to restore optimal system performance.

Q2: How does the XZC827A102 integrate with plant-level DCS and SCADA systems, and what communication protocols are supported?
The Unitrol 6000 AVR system communicates with plant-level DCS and SCADA platforms through gateway modules that support standard industrial protocols including PROFIBUS DP, Modbus RTU, and in some configurations, IEC 61850 via protocol converters. The XZC827A102 itself interfaces with the Unitrol 6000 internal system bus; external communication is handled by the AVR controller’s communication interface modules. For system integration with ABB AC800M or Symphony Plus DCS platforms, ABB-native fieldbus modules provide optimized data exchange for setpoint commands, status feedback, alarm signals, and event logging. Third-party DCS integration is achievable through standard PROFIBUS or Modbus gateways with appropriate signal mapping configuration.

Q3: What does the warranty terms confirmed during quotation cover, and what support is available for long-term maintenance of the XZC827A102 in critical power applications?
The warranty terms confirmed during quotation covers manufacturing defects and functional failures under normal operating conditions from the date of shipment. For long-term maintenance planning, it is recommended to maintain a spare XZC827A102 board on-site, particularly for generators in continuous baseload or critical standby service. ZYPLC provides pre-sales technical consultation to verify part compatibility, and post-sales support including parameter backup guidance and replacement commissioning advice. For generators in remote or high-criticality applications, a proactive spare parts strategy — including the XZC827A102 and associated Unitrol 6000 power supply and communication modules — significantly reduces mean time to repair (MTTR) and supports long-term asset reliability programs.
